Everything at a glance
With Smart Cabinets, you are in charge: make your pre-selection and get in touch with our ZOLLER sales team - we will be happy to advise you and configure your desired model.
Configure your »toolOrganizer«
Five steps to your tool cabinet: usable height, control system, design, drawers and partitions. The preview shows your cabinet instantly, the parts list gives you the item numbers – and one click sends your pre-selection to our sales team.
Your parts list
| Qty | Description | Item no. |
|---|
Your pre-selection – the binding configuration and quotation are prepared by the ZOLLER sales team. Item numbers as per the »toolOrganizer« flyer (version 13, 08/2024), subject to technical modifications.
The rules from the data sheet
- Usable height 600, 900 or 1,225 mm – cabinet height 875, 1,175 or 1,500 mm, footprint 800 × 790 mm (W × D).
- Drawer heights 75, 100, 125, 150, 175, 200, 250 and 300 mm. Together they fill the usable height exactly; drawers are always installed from smaller (top) to larger (bottom).
- Up to 80 kg per drawer, optionally 160 kg for drawer heights of 150 mm or higher.
- Partitions for 12, 16, 24 or 48 compartments, freely placed in the grid on a usable area of 602 × 602 mm. 48 compartments are available up to a drawer height of 175 mm.
- The »smartCompartment« with 4, 8, 12, 16, 24 or 36 compartments is fitted onto the partitions of a mechanically locked drawer; 36 compartments only for 75 to 150 mm. Compartment depth = 19 mm less than the drawer height.
- The mechanical cabinet has a central lock and any number of drawers. The electronic cabinet has a maximum of 20 drawers and needs a control system, for example table electronics, the »cockpit« or a TMS workstation.
- Software for the electronic version: ZOLLER Smart Cabinets base package, ZOLLER TMS version 1.18.23 or higher with interface, Integration TMS.
Configurable usable height
| 600 mm, 900 mm, 1225 mm |
Cupboard size
| »toolOrganizer 600« – H x W x D: 875 x 800 x 790 mm |
| »toolOrganizer 900« – H x W x D: 1175 x 800 x 790 mm |
| »toolOrganizer 1225« – H x W x D: 1500 x 800 x 790 mm |
Payload
| Max. 80 kg per drawer, optionally max. 160 kg (from drawer height 150 mm) |
Execution

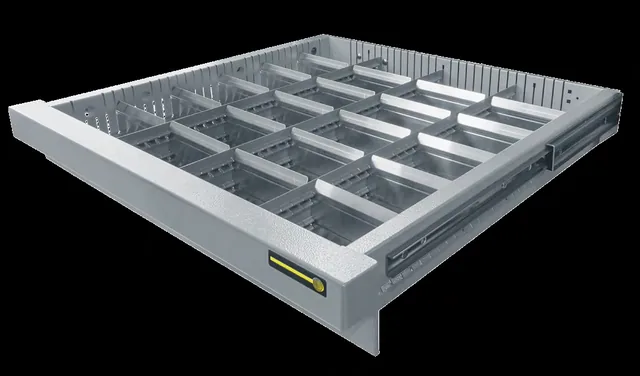

| Mechanical central lock |

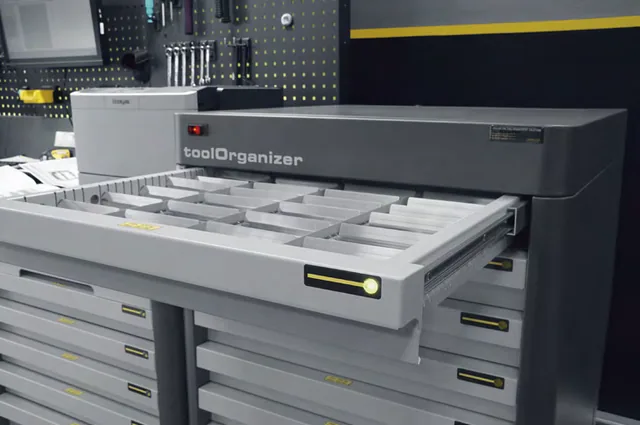

| Electronic drawer locking system |

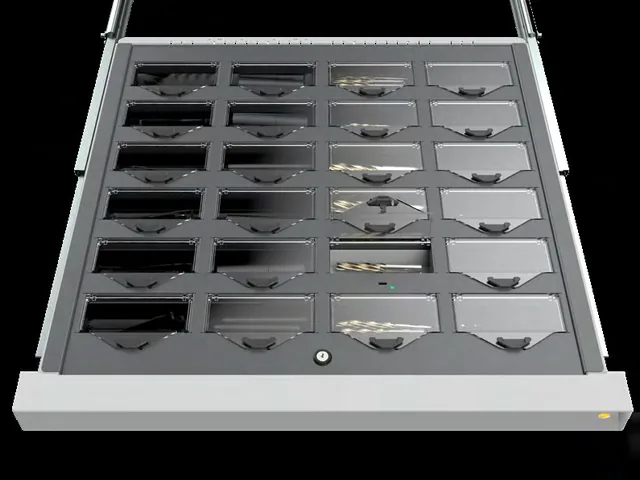

| Electronic single compartment lock »smartCompartment« |
Control

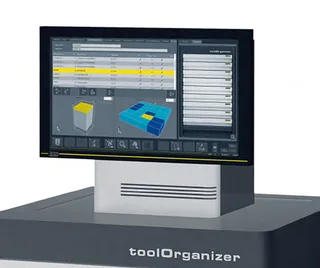

| Table electronics |

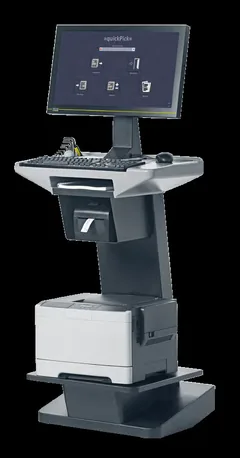

| Separate »cockpit« operating unit with »quickPick« control software |

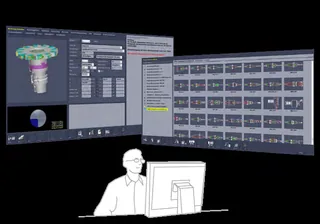

| TMS Tool Management Solutions - Workstation |
| ZOLLER presetting and measuring machines - with Smart Cabinets software module |
Drawer height
| 75 mm, 100 mm, 125 mm, 150 mm, 175 mm, 200 mm, 250 mm, 300 mm |
Drawer division
| 4 compartments, 8 compartments, 12 compartments, 16 compartments, 24 compartments, 48 compartments |
