Safely and efficiently to your destination
With »powerShrink« from ZOLLER, shrink-fitted tools are quickly ready for use: thanks to the intuitive »pilot« software, intelligent induction system and permanent monitoring of the work steps.
The »powerShrink« technology ensures the shortest possible process functions. Even inexperienced operators can achieve the resulting short process times after just a short training period. The »pilot« operating software guides you through all work steps and controls many processes fully automatically. The software displays the component required for each work step and provides visual support with the help of graphic displays on the screen and the pioneering ZOLLER »actbyLight« operating concept. The light-controlled operator guidance for safe and efficient use of the »powerShrink« in your company.

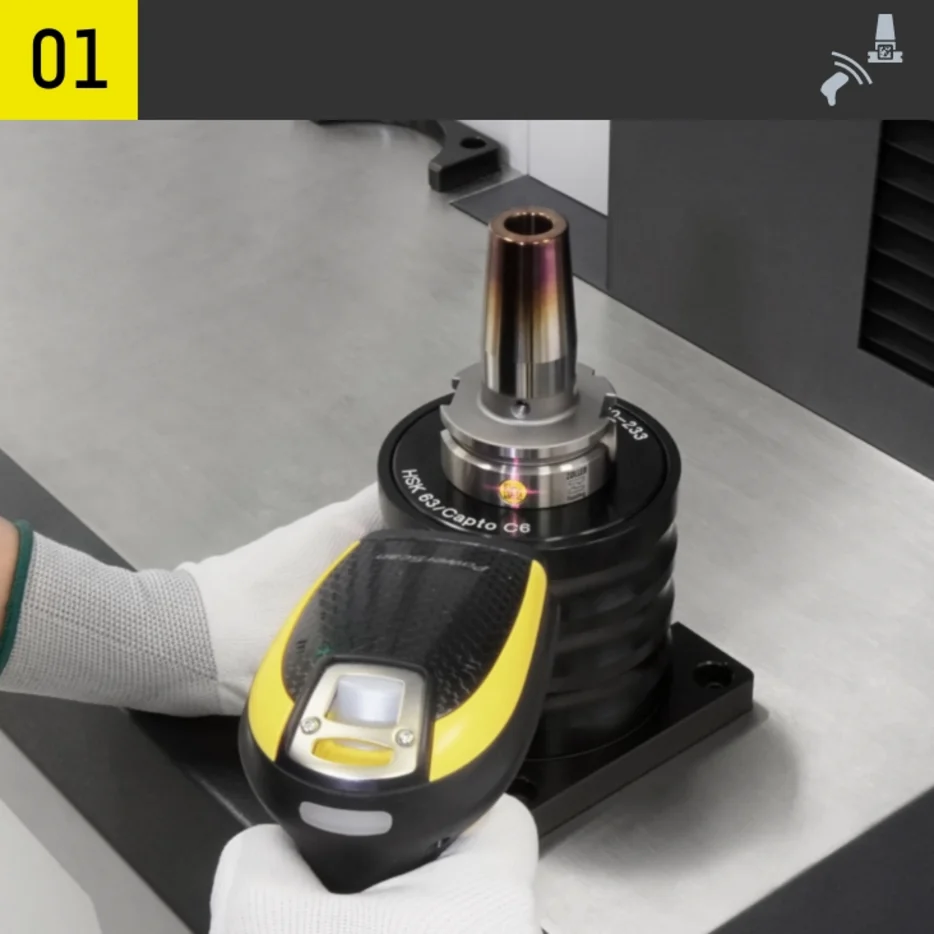

Insert shrink fit chuck, select heating parameters (manual/automatic via »idChip«)

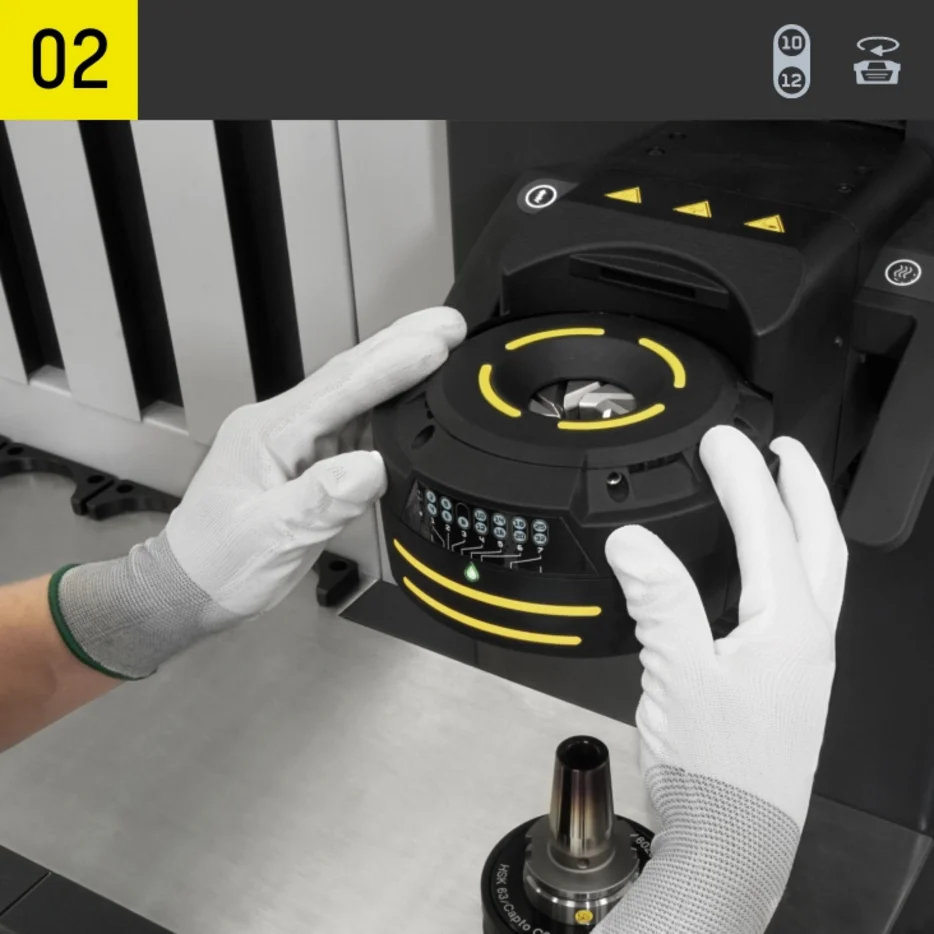

Shielding system: insert and align washer or »varOct« (manual/motorized)

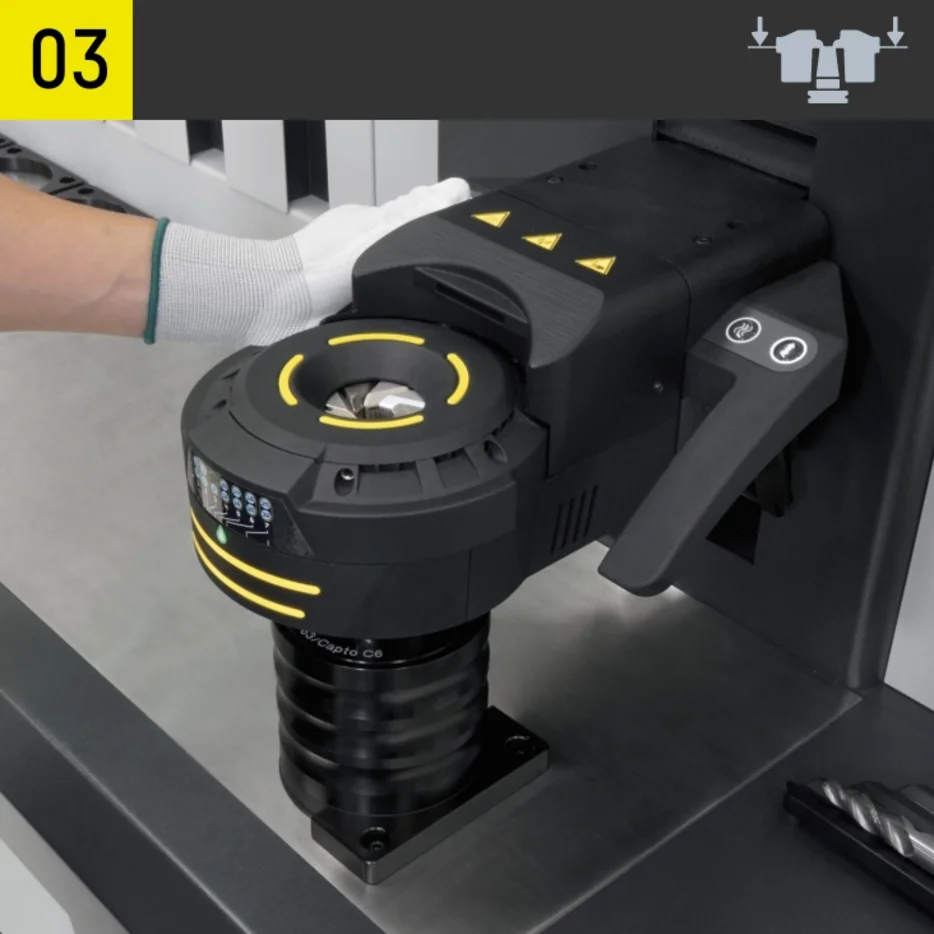

Move the bobbin down to the shrink fit chuck

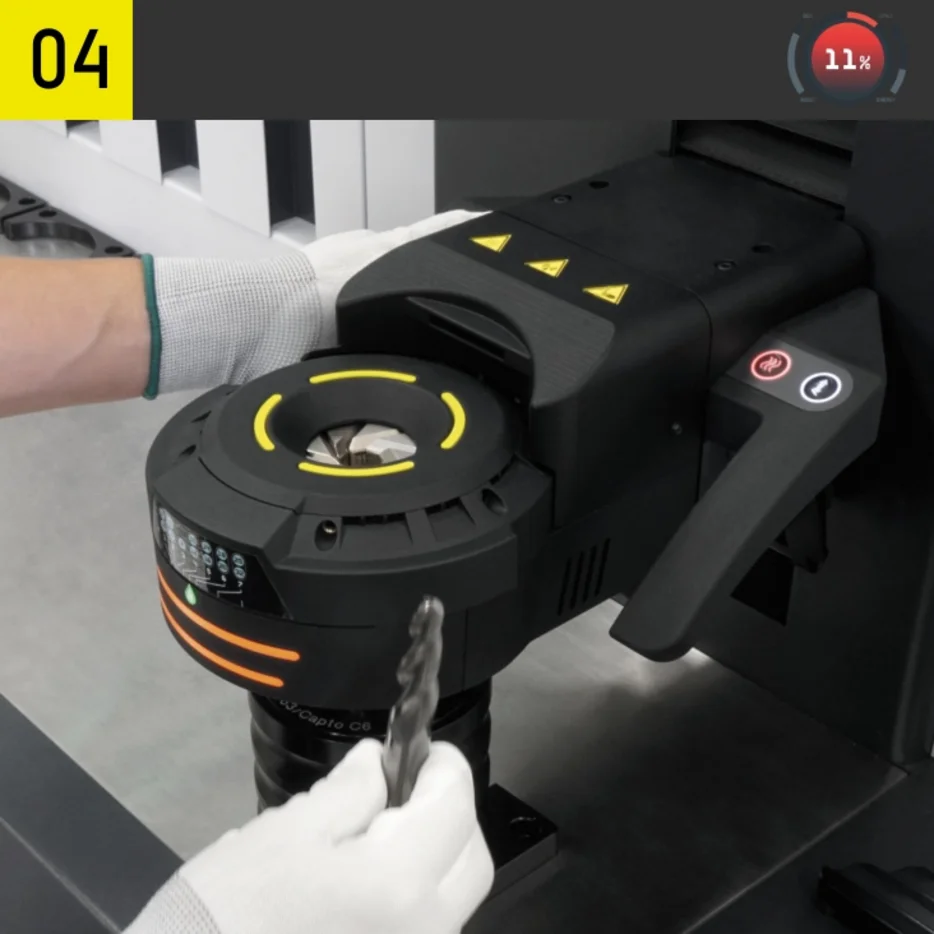

Start heating process, heating progress is displayed in software

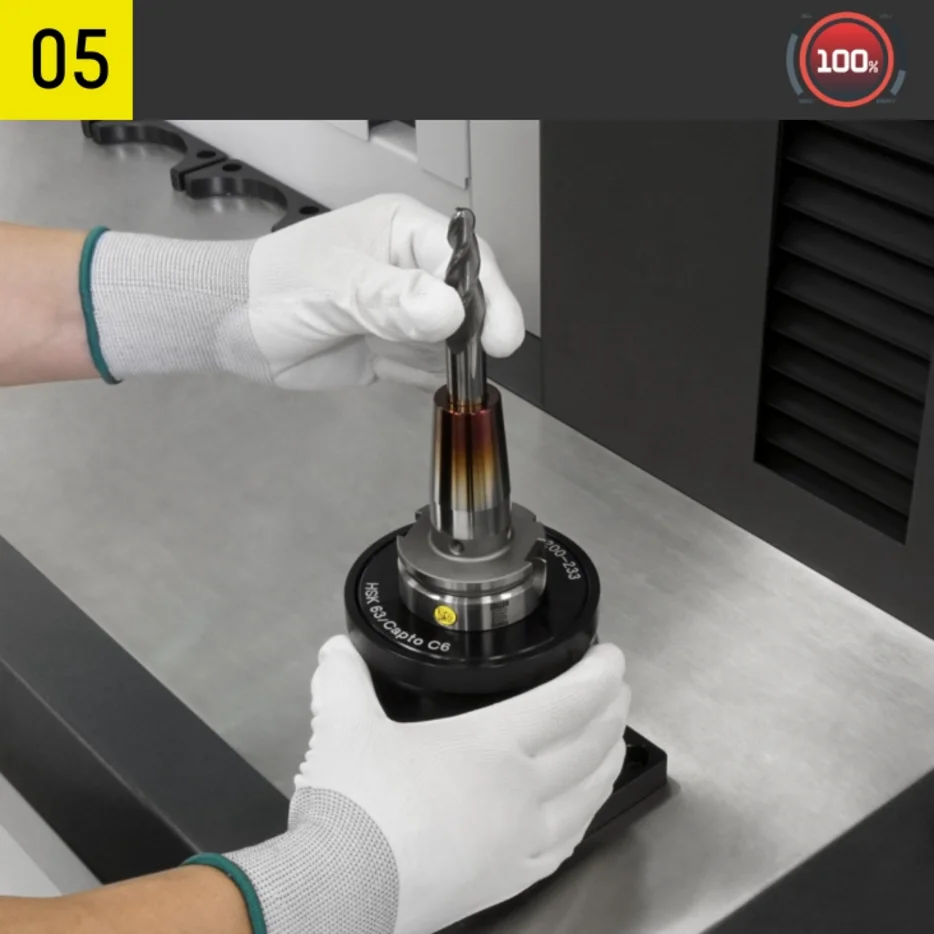

After the heating process, raise the reel, insert the cutting unit into the shrink chuck
Slide the receiving cup to the green flashing cooling bell and place it in position

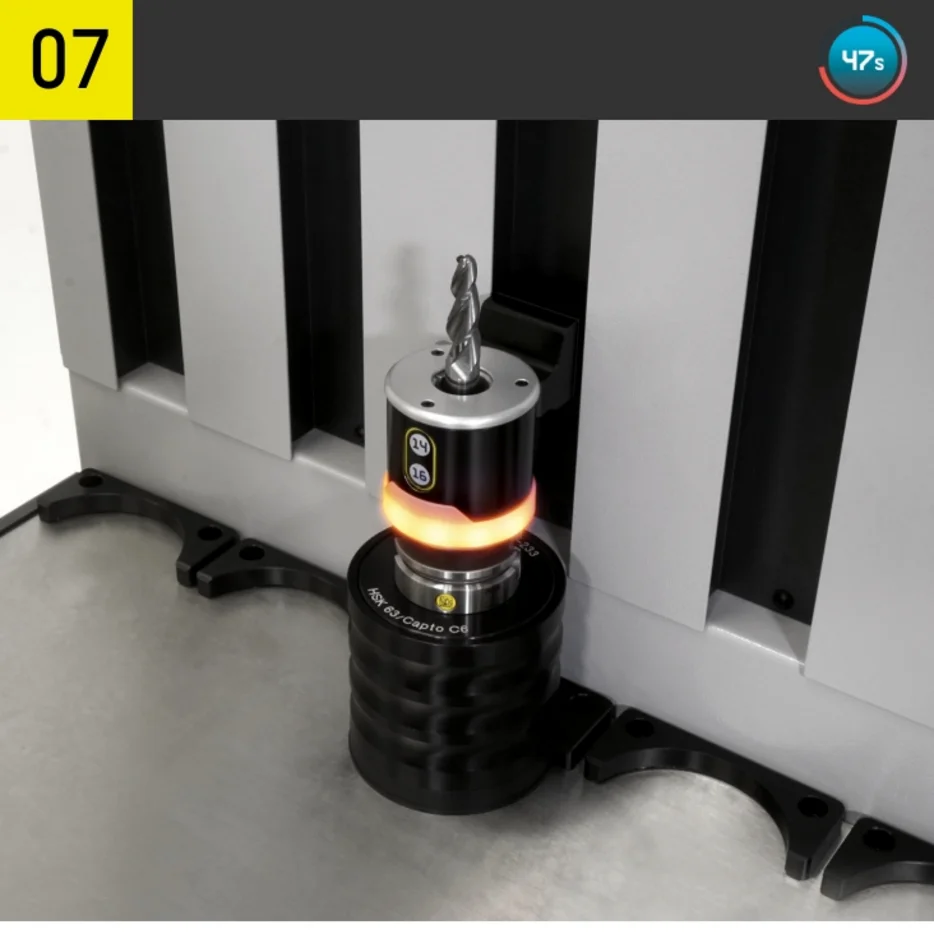

Cooling process starts automatically, end is displayed flashing blue

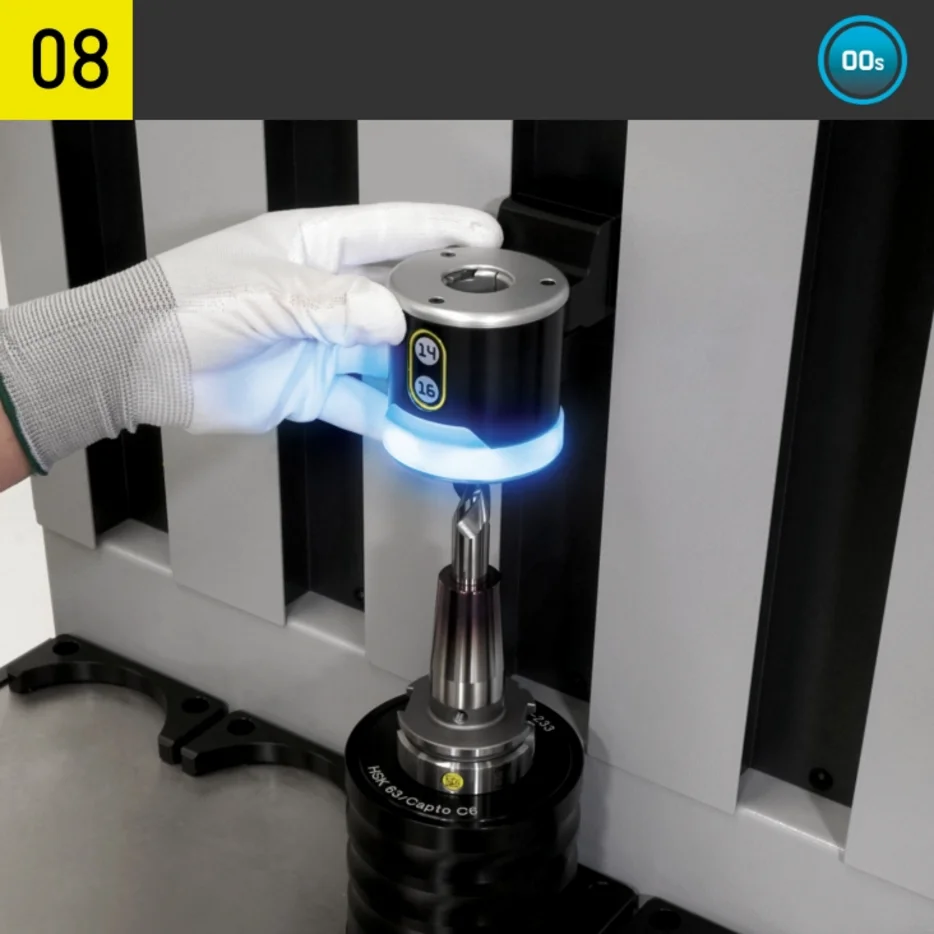

Remove the cooling bell from the shrink fit chuck at the end of the cooling process
Clearly managed and perfectly networked
The clearly structured graphic display of the ZOLLER »pilot« software guides the operator intuitively and safely step by step through the operating dialog using large function buttons and a well thought-out colour concept. The 12.5-inch monitor impresses with its razor-sharp display.

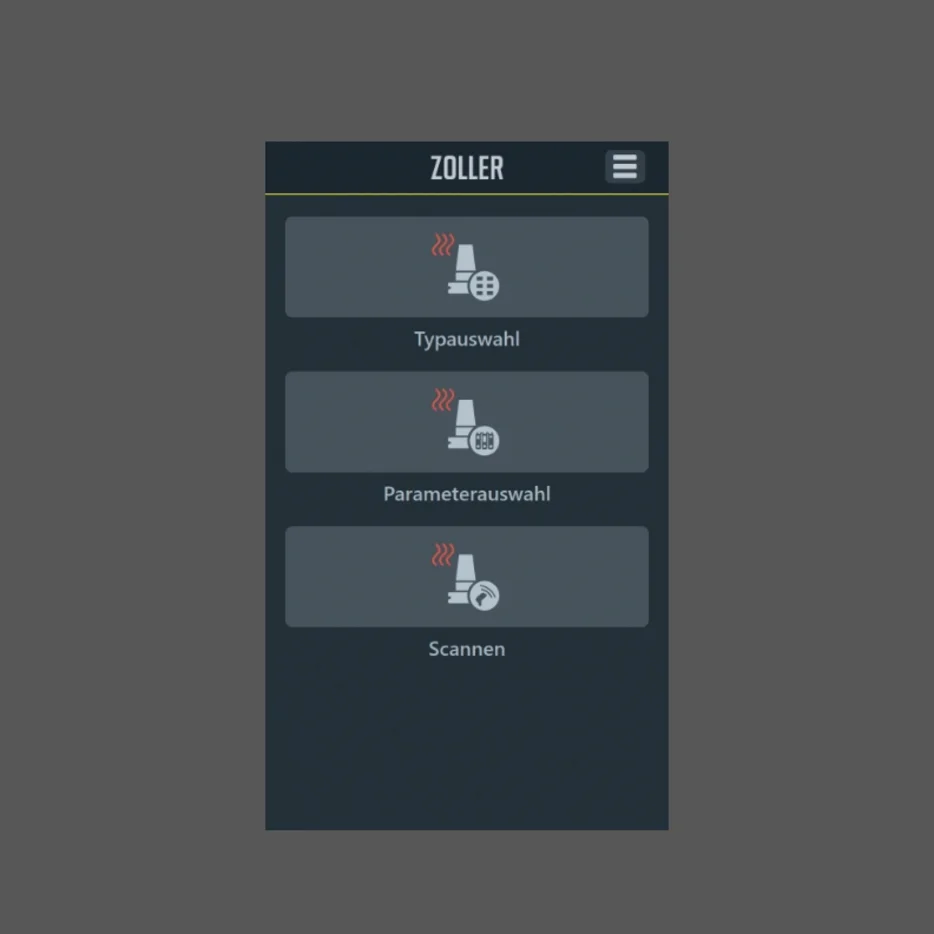

Main menu - large function areas with clear images: shrink fit chuck type selection, parameter selection or code scanning.

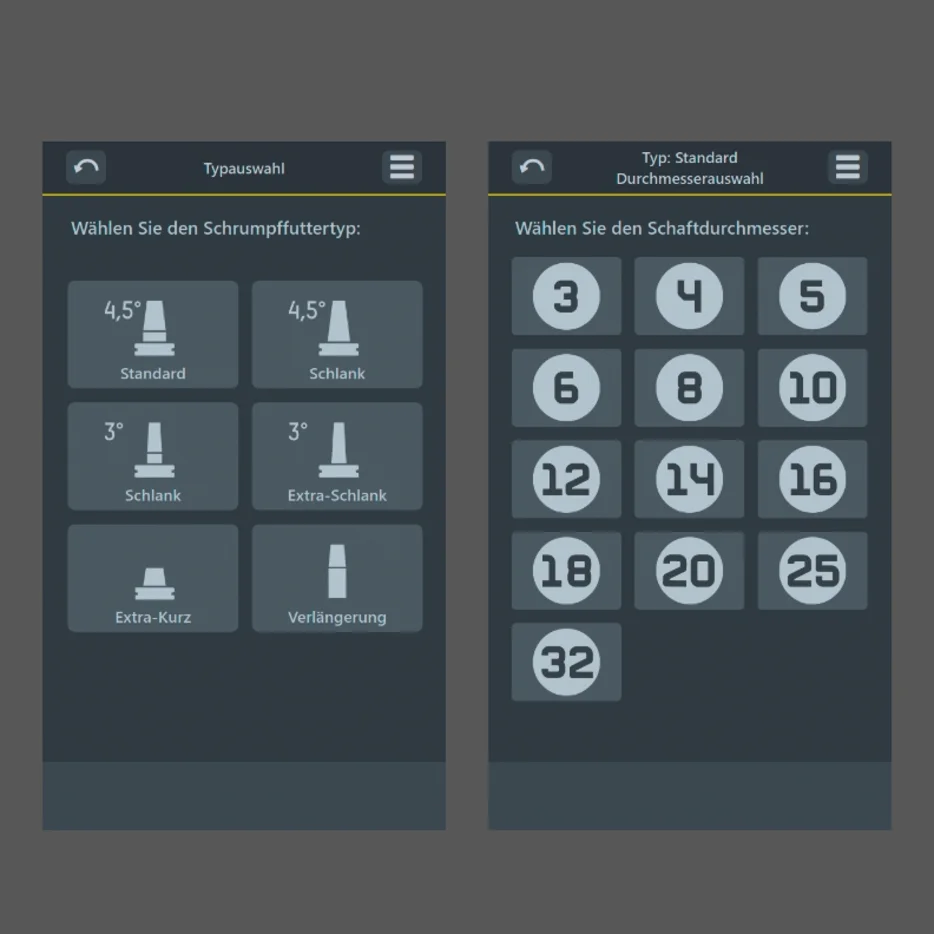

Parameter selection - the desired heating parameters can be selected easily and safely using clear and comprehensible software function buttons.

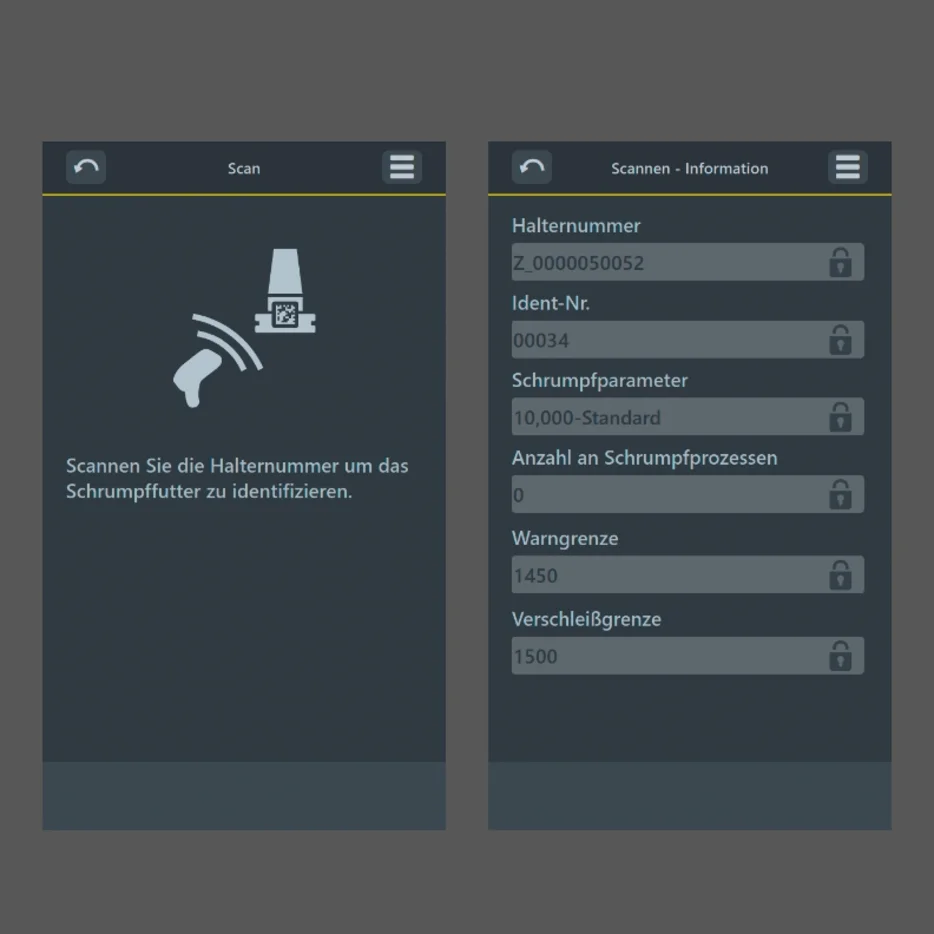

Scan function - all parameters matching the shrink fit chuck are loaded automatically - regardless of the manufacturer. It is possible to monitor the number of heating processes and display information for each shrink fit chuck.

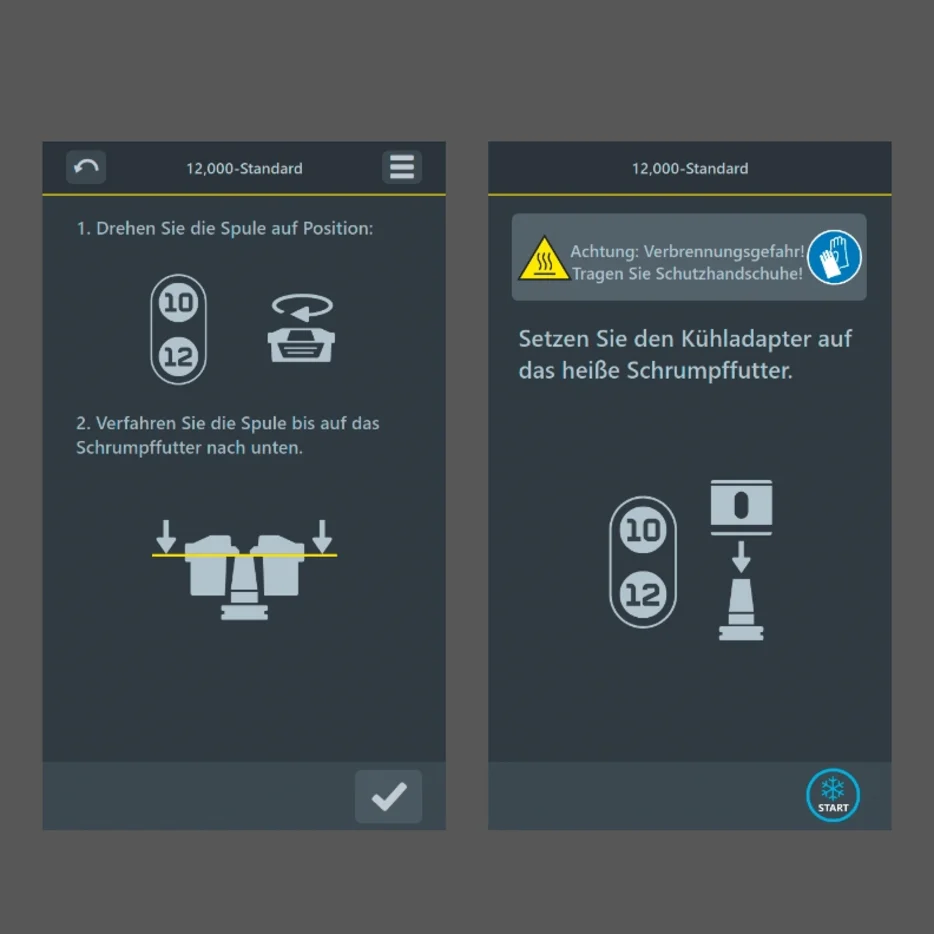

Step-by-step guidance - during the entire shrinking process, »pilot« shows you exactly which step to take and when.

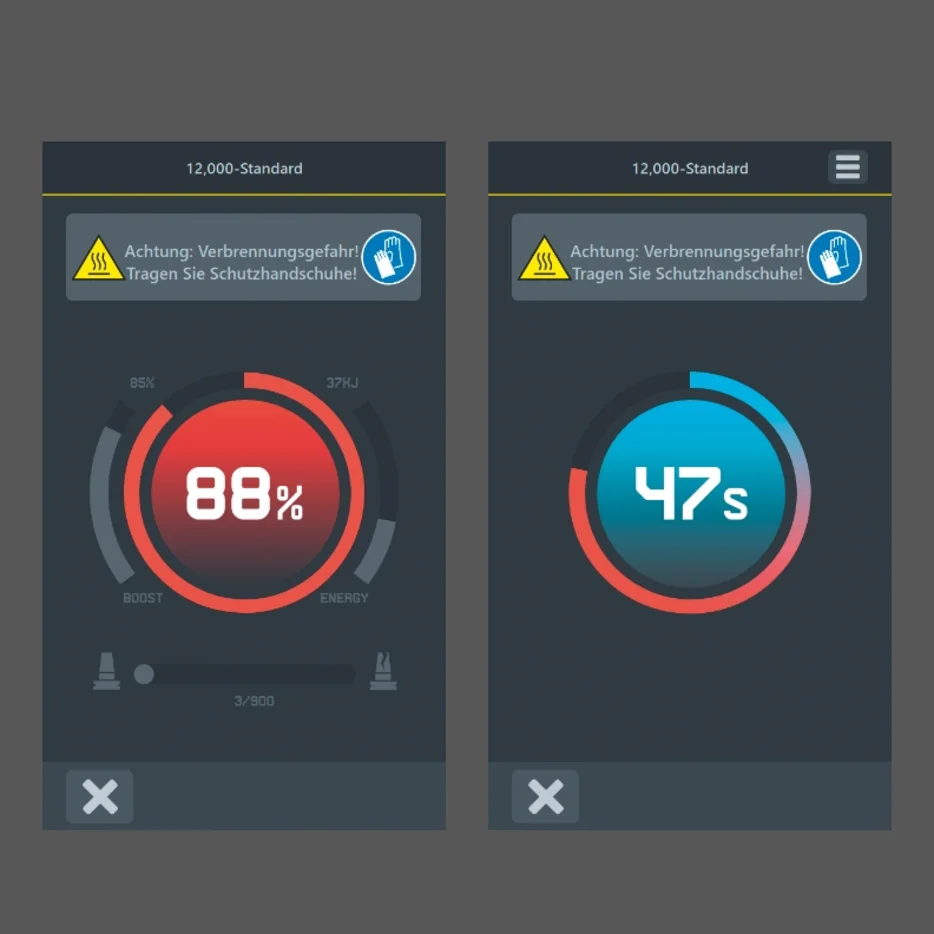

Status displays - whether heating or cooling, »pilot« shows you the progress of the process and important safety instructions at all times.
