»smile« | Entry-Level Tool Presetter

Changes the Workflow to Precise Data

»smile« puts your production on the reliable basis of precisely recorded tool measurement data. This workflow provides the best starting conditions you can offer your CNC machines.

Request a quote 1:1 expert meeting

Augmented reality · 3D

»smile« at full size – on your shop floor

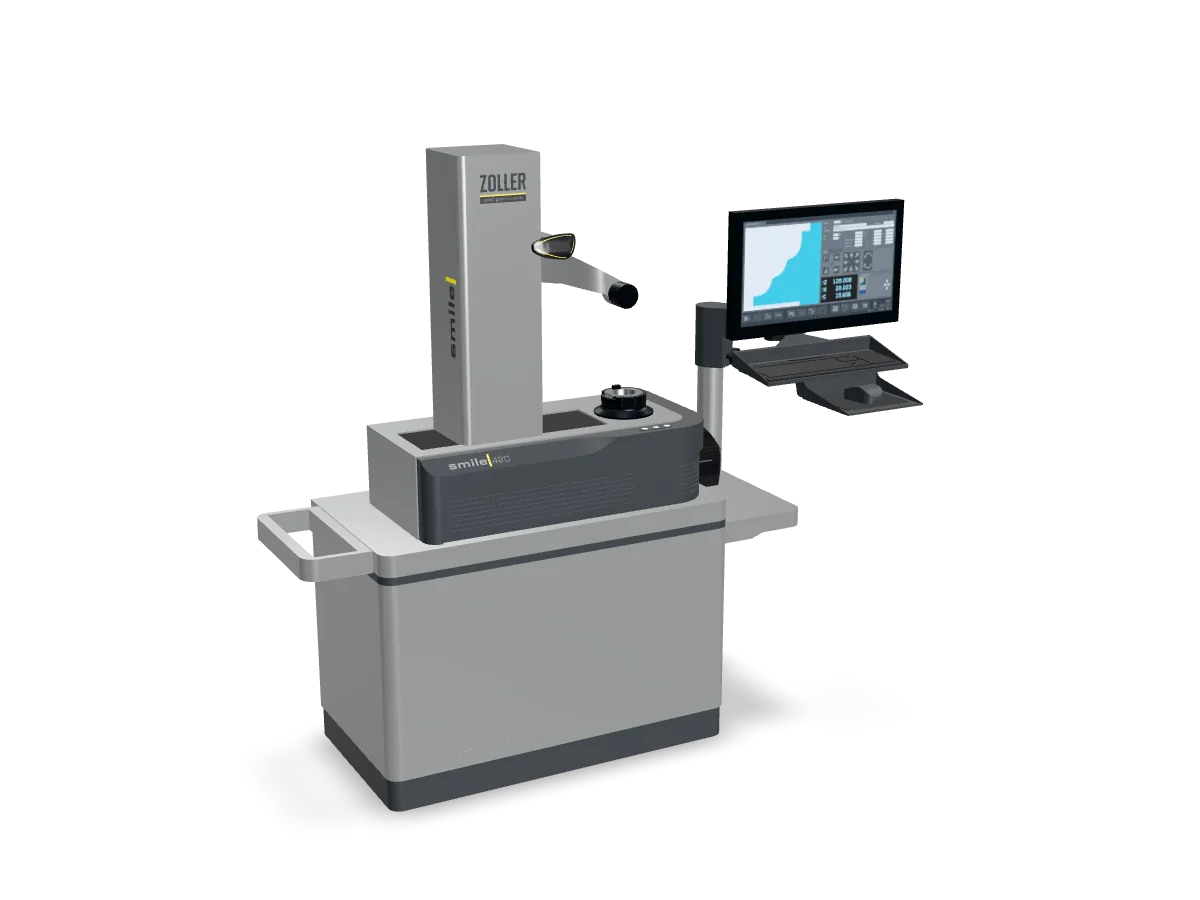

With augmented reality, the unit appears true to scale exactly where it will work: walk around it and check space and access before you order. On a computer, rotate and zoom the CAD model right here.

Width: 1.88 m
Depth: 0.67 m
Height: 1.72 m
Footprint: 1.25 m²

Overall dimensions of the CAD model in this configuration – may vary depending on equipment.

Toolroom Planner

Ergonomic operating concept

Built for measurements directly in production

Adapters for all common mounting systems

Strong reasons for the quality of ZOLLER

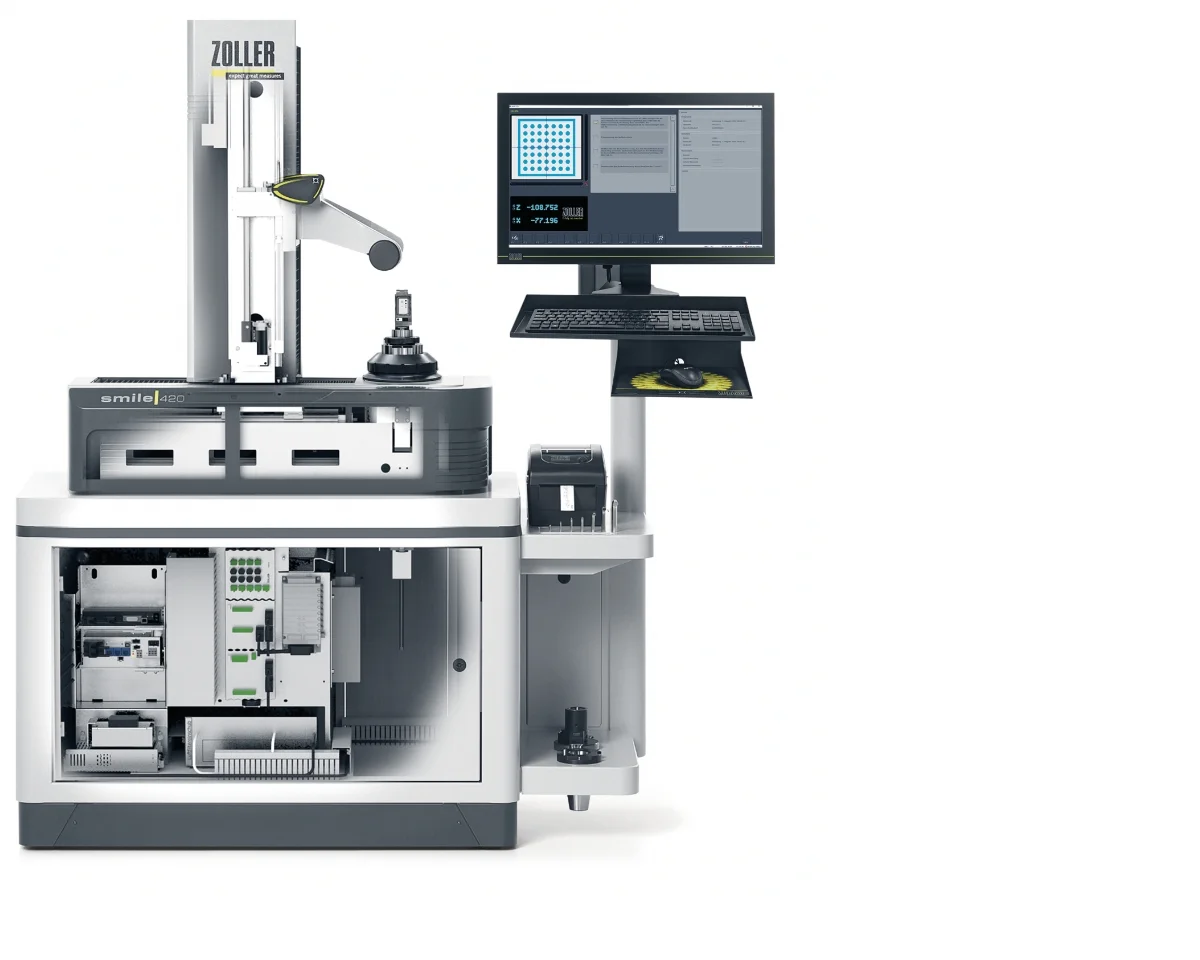

Panel PC

Panel PC with industrial-grade 24" TFT color monitor for sharp display of tools and geometries. High computing power to analyze and evaluate the measurement data.

Monitor holder with keyboard tray

Base body

Base body in the Z and X axes - manufactured from a light metal alloy specially developed for measuring devices. Designed to absorb the weight and forces of the tools. The guarantee for long-term stability and precision in reliable measuring processes.

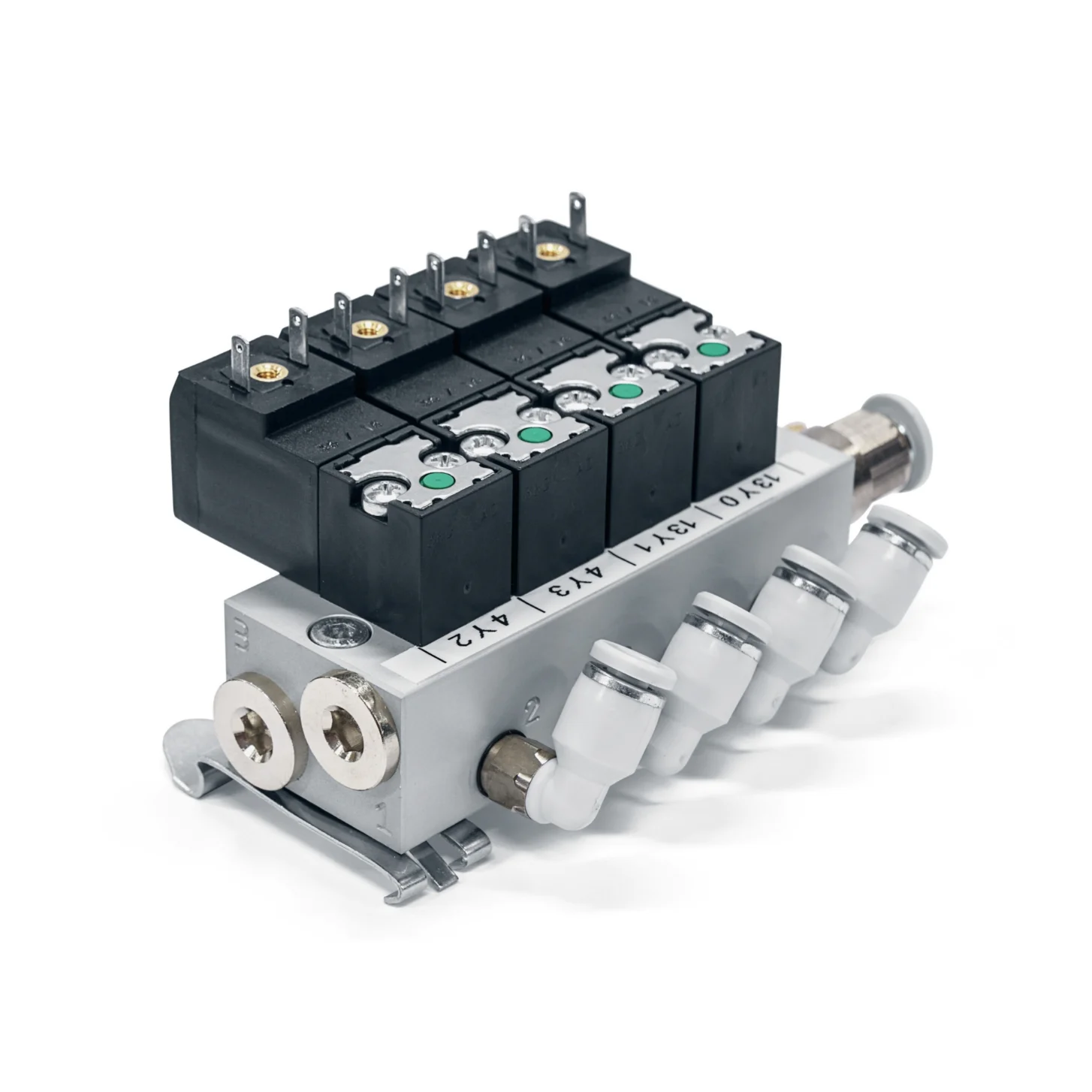

Bosch/Festo pneumatic elements

For the safe operation of pneumatic functions such as the force-tensioning functions on the spindle.

Stable underbench

Stable undercounter

The base of the appliance: The computer, pneumatic elements and electronics are housed here. Good accessibility and optimum ventilation.

Ergonomics under control

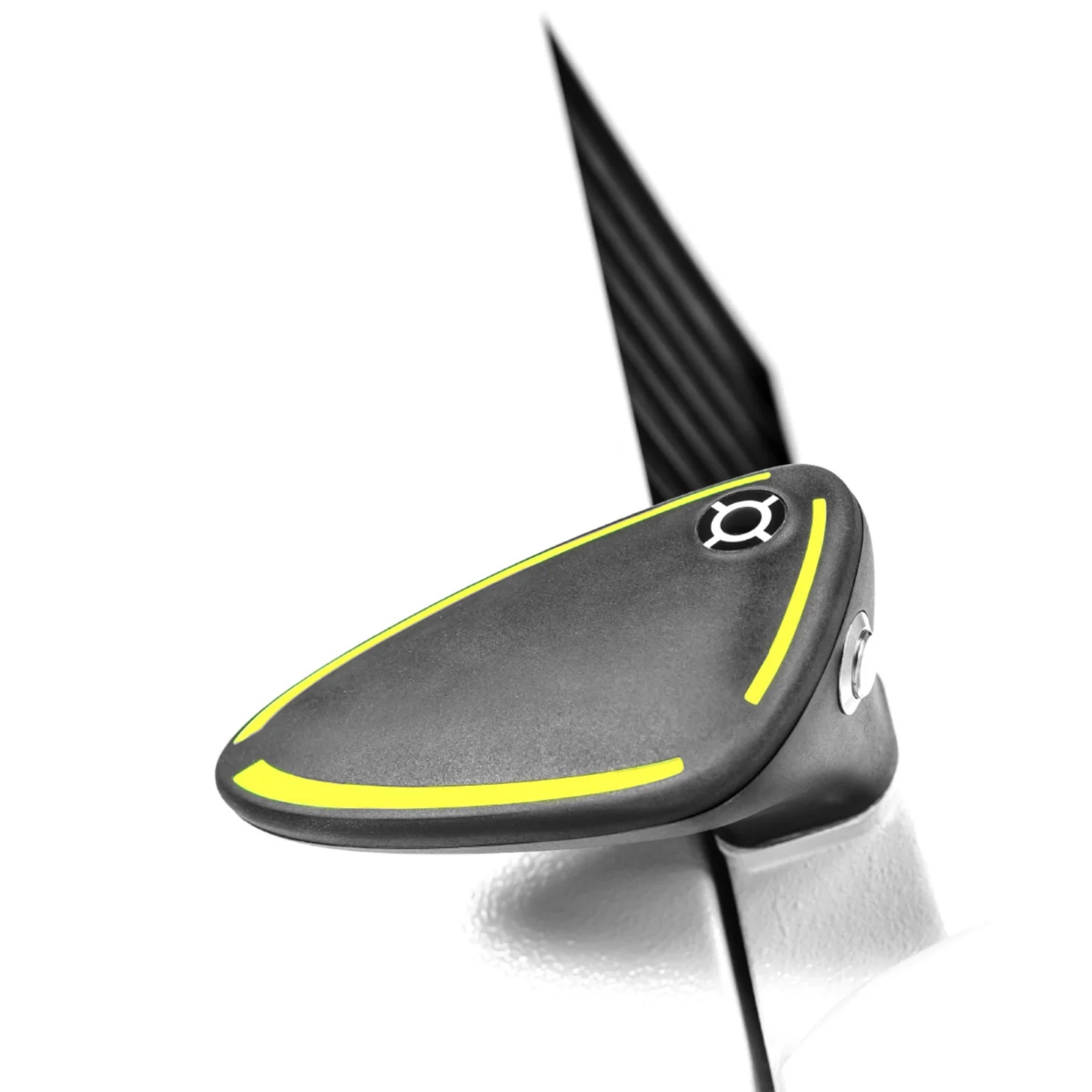

The »eQ« (ergonomic & quick) one-hand operating handle is all you need to adjust the entire appliance tower in the X and Z axes with just one hand. In addition, important functions can be assigned to the release button of the »eQ«. This makes operation even more convenient and ergonomic.

Prepared for high precision

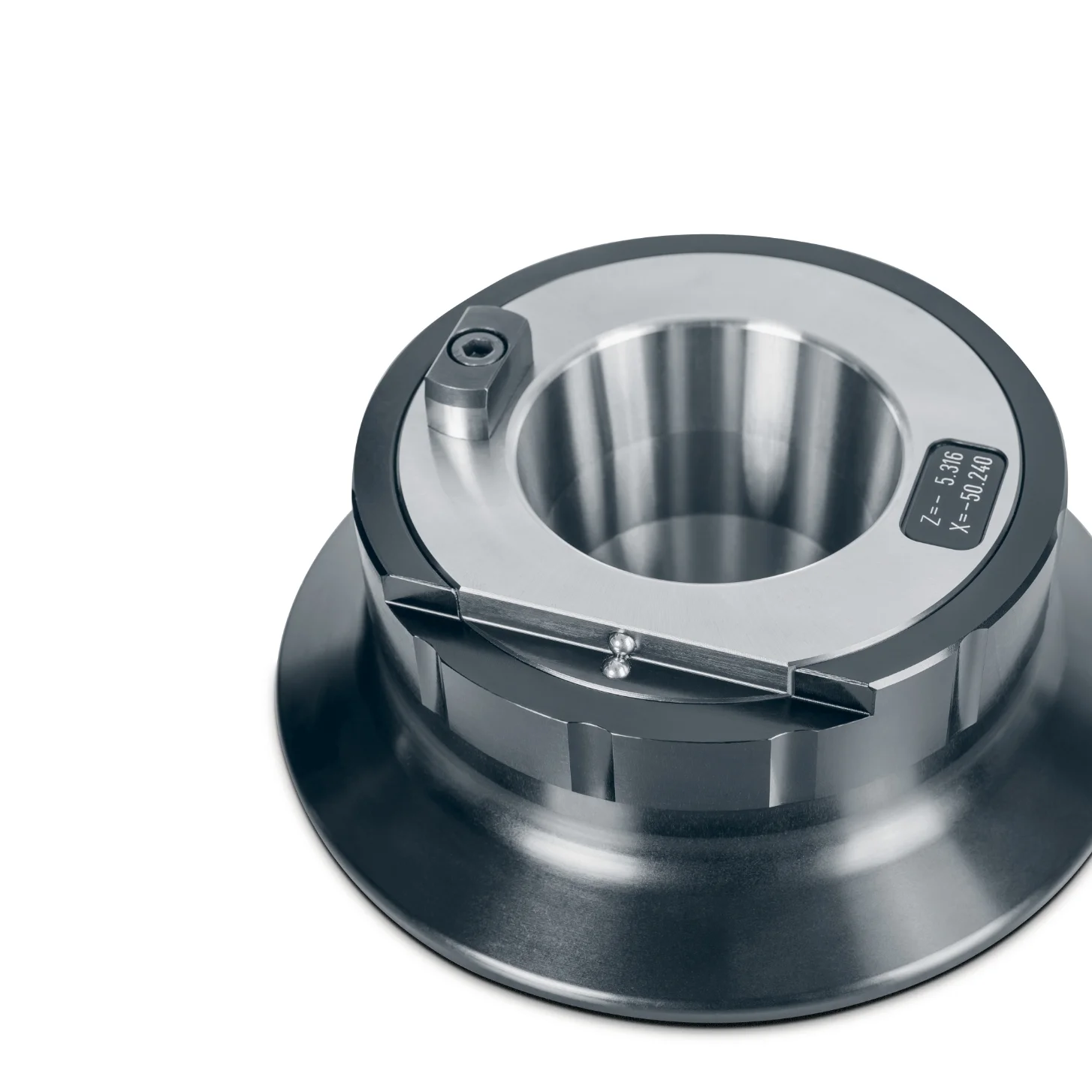

The SK 50 spindle accepts adapters with SK50 mounts. Due to its special features, it delivers precise results with every measurement. It has a concentricity of < 2 µm, a pneumatic spindle brake, 4 x 90° spindle indexing and integrated calibration balls.

Built for production

Everything about »smile« is designed for durability and continuous use. Whether for large-scale production, medium-sized companies or small-scale manufacturing - this presetting and measuring machine keeps pace with your rhythm, even right next to the CNC machine.

Increase the efficiency of your production

»smile« will reduce costs in your production and give your machines and tools more production time. it is a precise investment that quickly pays for itself.

Take advantage of our starter package »smile 420 / pilot 4.0« today.
Request a quote
