Tool Balancing Technology: Your advantages
Balancing is underestimated. Yet balancing leads to greater efficiency because it reduces costly tool wear and relieves the load on machine spindles.
Learn more
Applications
Operating software »toolBalancer« in 25 languages
Intuitive software with graphical user interface for quick and easy balancing in one or two planes, including extensive standard functions.

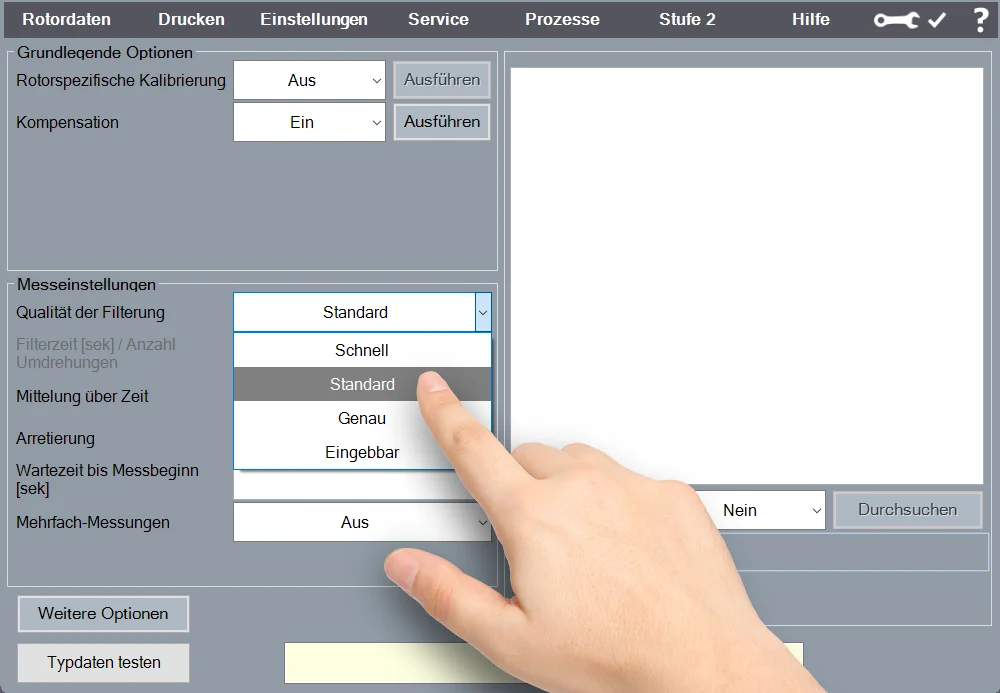

Touch screen
Convenient operation of the software via touchscreen.

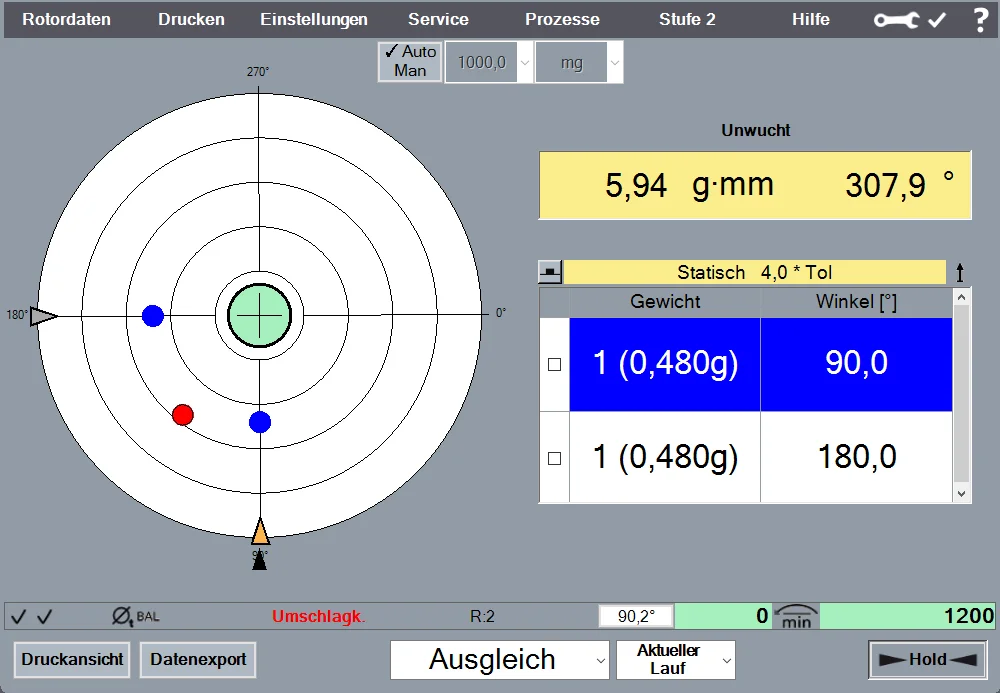

Optical insertion aid
Graphic display of the angular position of the spindle on the monitor.
Balance compensation
Balance correction "Various weights "
Correction of unbalance by attaching or removing weights (e.g. balancing screws). Incl. presetting option for existing weight sets.
Balance correction "Shift weights"
Correction of unbalance by turning balancing rings or sliding blocks.
Balance correction "Drilling radial"
Correction of unbalance by radial drilling. Automatic calculation of the number, angular position and depth of the holes.
Balancing correction "Milling"
Correction of unbalance by radial, tangential or axial milling.
Axial drilling" balance correction
Correction of unbalance by axial drilling. Automatic calculation of the number, angular position and depth of the holes.

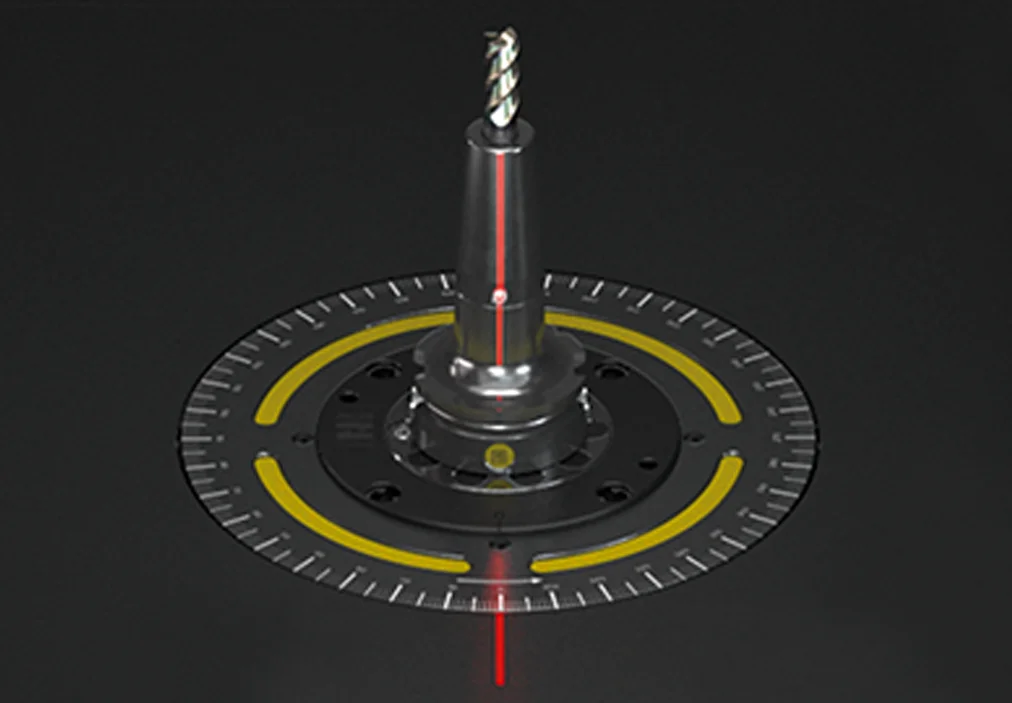

Laser marking
Display of the unbalance and correction position on the chuck via laser beam.

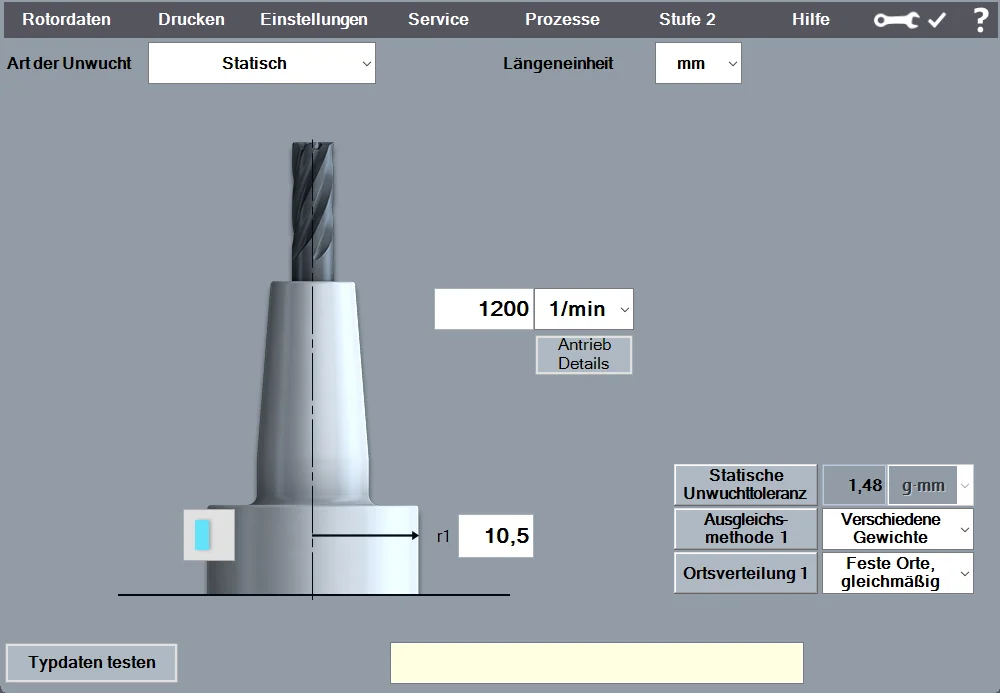

Balancing in one plane
For measuring and correcting the unbalance in a plane (static).

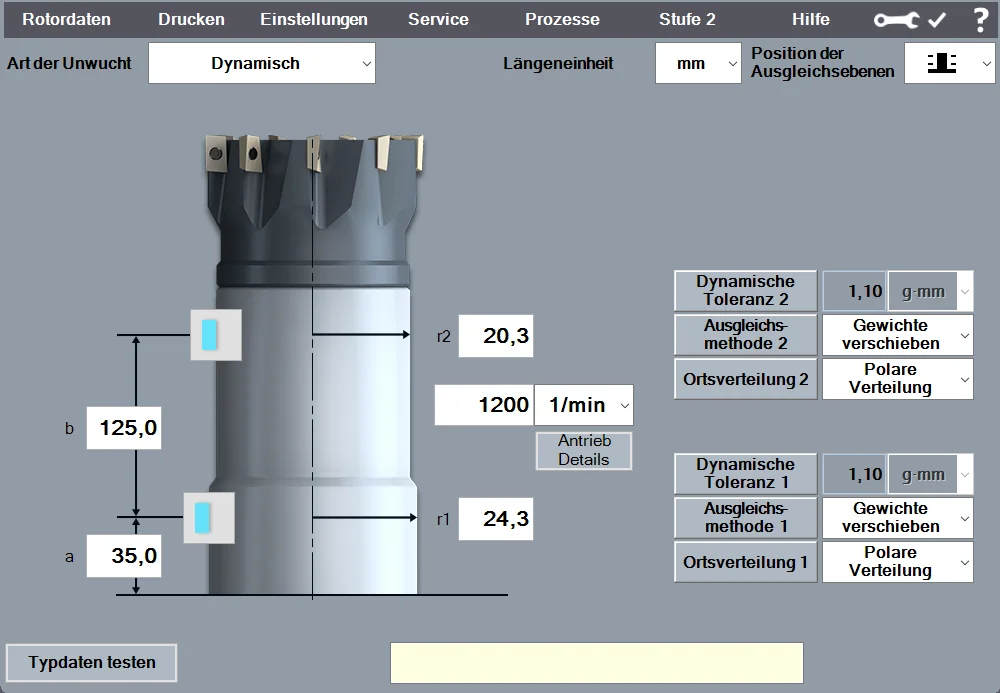

Balancing in two planes
For measuring and correcting the unbalance in two planes (dynamic).
Result data output
Label printing
Output of the measurement results in one or two levels on ZOLLER label printers.
Report printing
Output of the measurement report as a printout on a laser printer or as a PDF file including editing function.
Measurement data export
Automatic export of measurement data in CSV format.
