Focus on thread types, fascination in detail

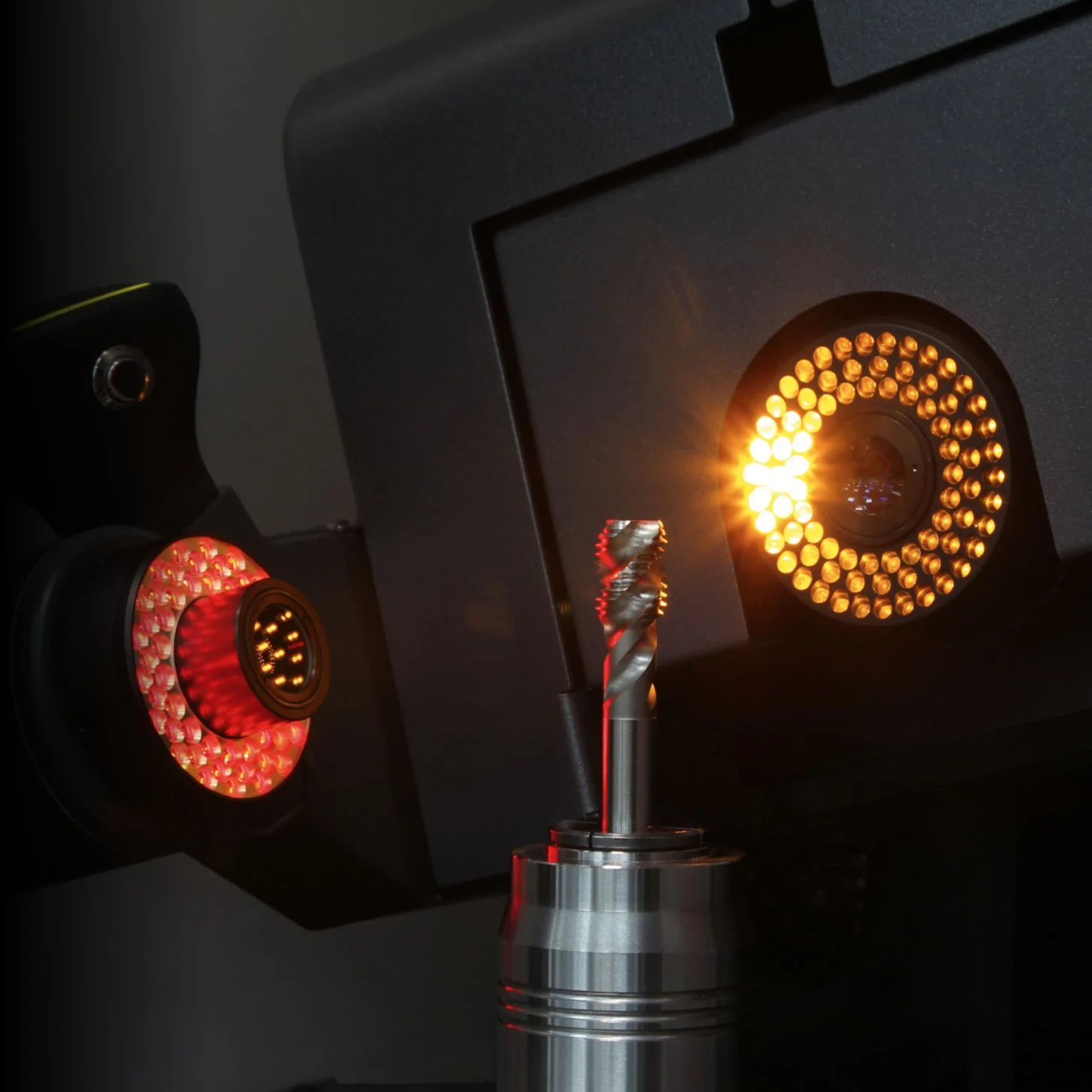

The »threadCheck ❘ cc« impresses with its fully automatic and μm-accurate measurement technology in transmitted and incident light - from measuring the outer contour of the tools to operator-independent complete inspection.

Measuring technology for threading tools

Measuring technology Threading tools

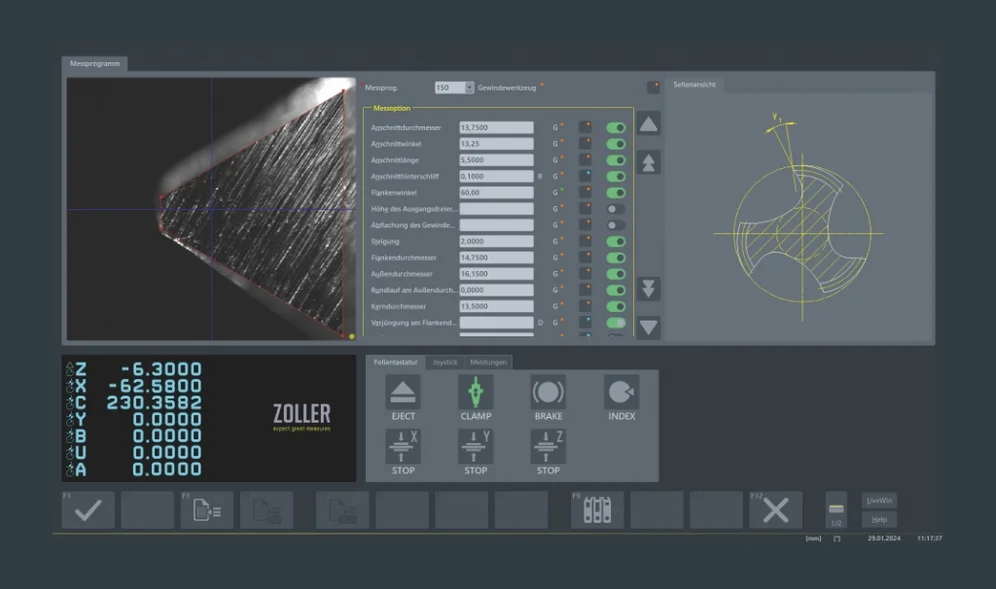

Measuring technology specially developed for the requirements of threading tools enables the fully automatic measurement of all relevant parameters of taps, thread milling cutters and thread formers in transmitted and incident light.

Measuring programs

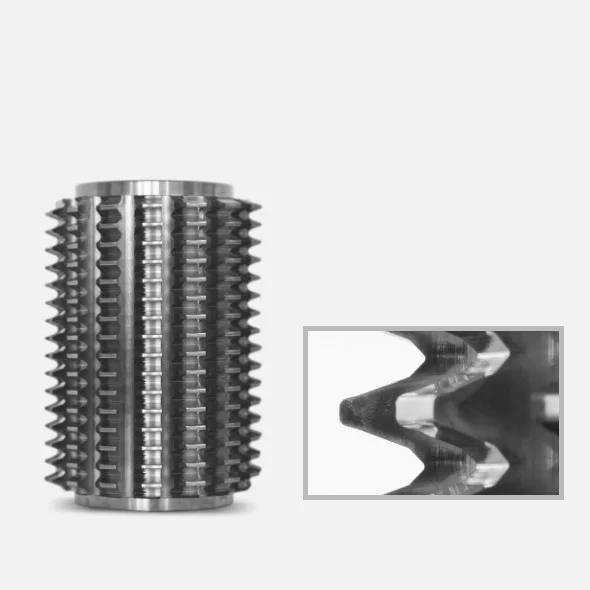

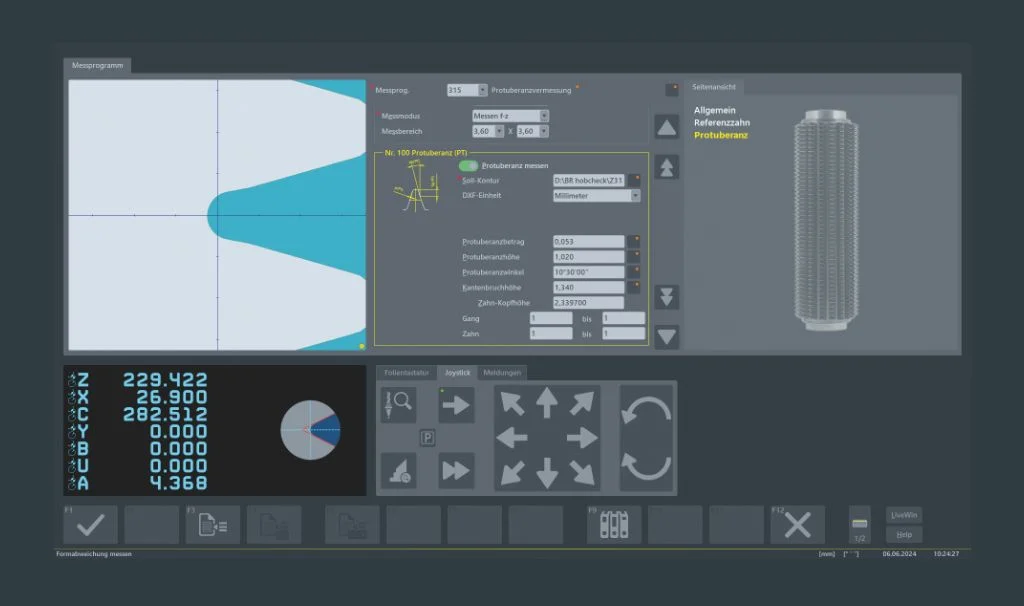

Measuring program 315

for measuring the protuberance on cylindrical hobs. The protuberance amount, height and angle as well as the edge breakage height on the left and right tooth flank are determined.

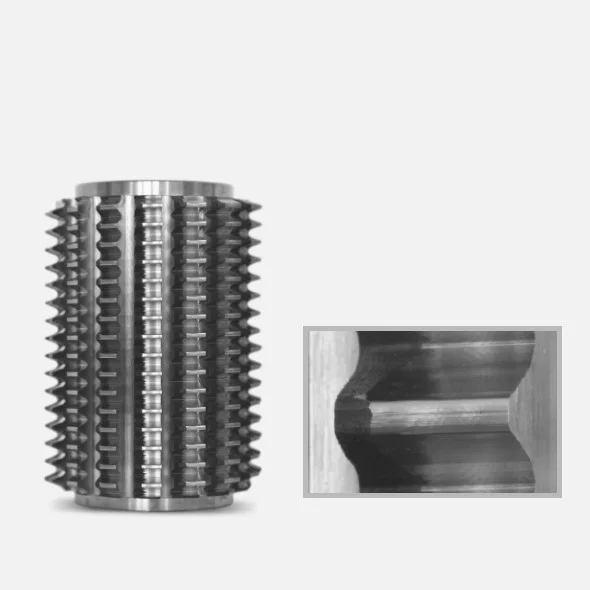

Measuring program 720

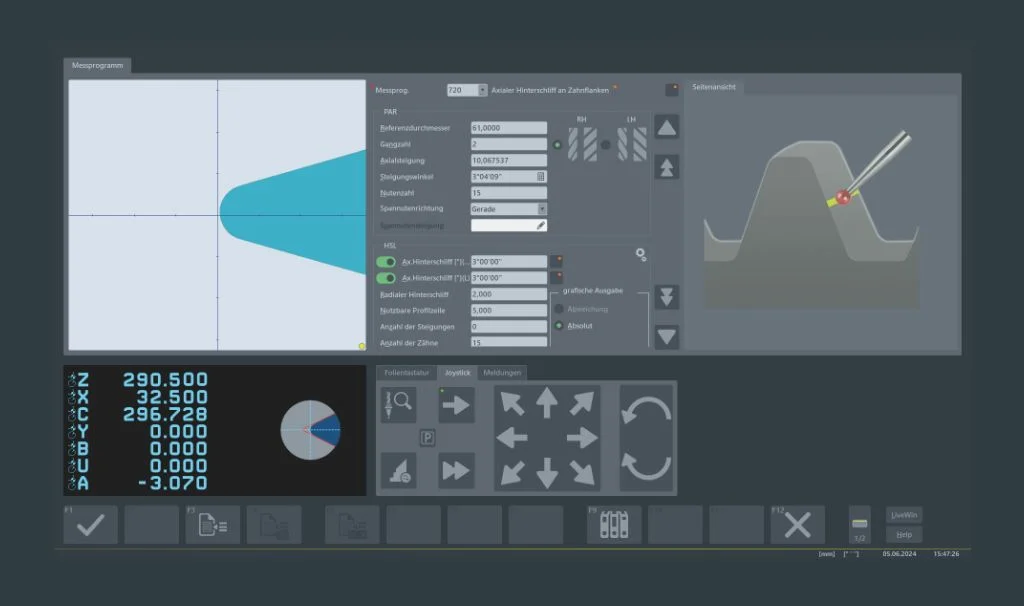

for measuring the axial relief on the tooth flanks of hobs. The exact contour of the relief is recorded and analyzed with the scanning probe.

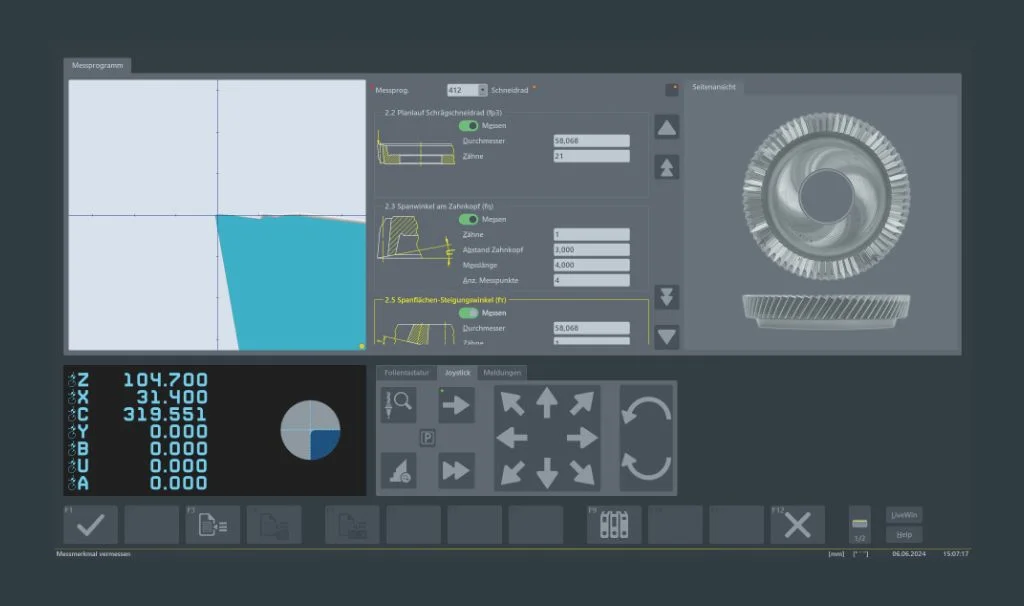

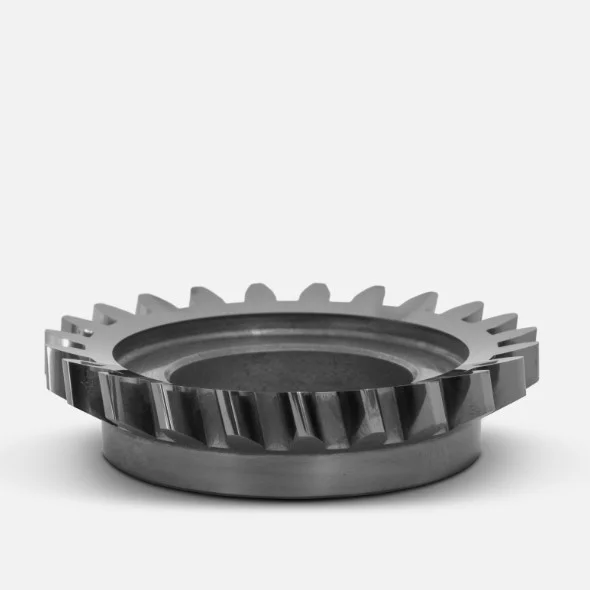

Measuring program 412

for tactile measurement of cutting wheels with measuring probe and evaluation according to DIN 1829. Straight and helical cutting wheels can be measured. The axial run-out, rake angle at the tooth tip and the rake face pitch angle (for helical cutting wheels) are determined.

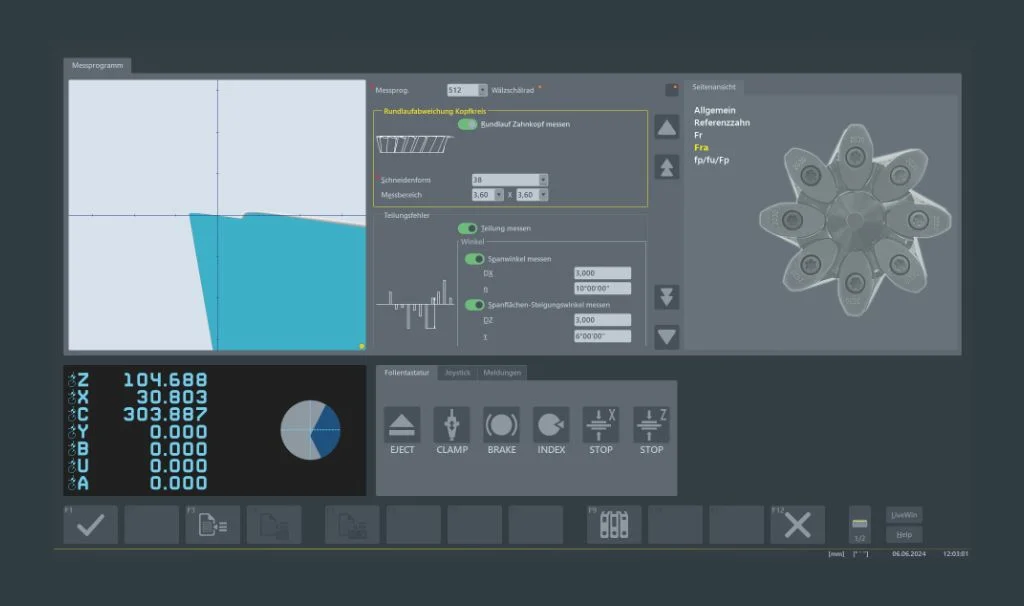

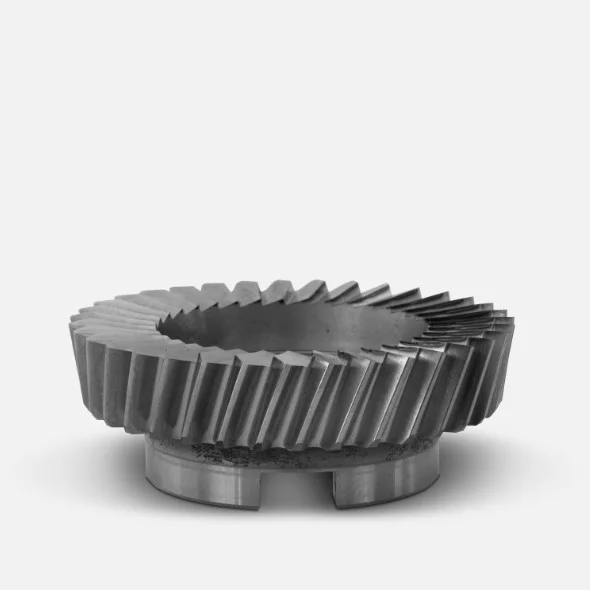

Measuring program 512

for the measurement of hobbing gears in transmitted and incident light with evaluation according to DIN 1829. The program determines concentricity deviation on the pitch and tip circle, individual pitch deviation left/right, pitch step left/right, total pitch deviation left/right, tooth thickness variation, rake angle on the tooth tip and the rake face pitch angle.

Inspection & Measuring: Your Advantages

Find out what is possible with ZOLLER for tool inspections. Process-related inspections or high-end analyses through to SKP, roughness and the creation of digital twins.


Learn more
Christoph Zoller

1:1 Expert Meeting

The individual exchange about your goals and our ideas for achieving them. Online advice from ZOLLER directly from the Smart Factory. Arrange your appointment now.


Learn more
