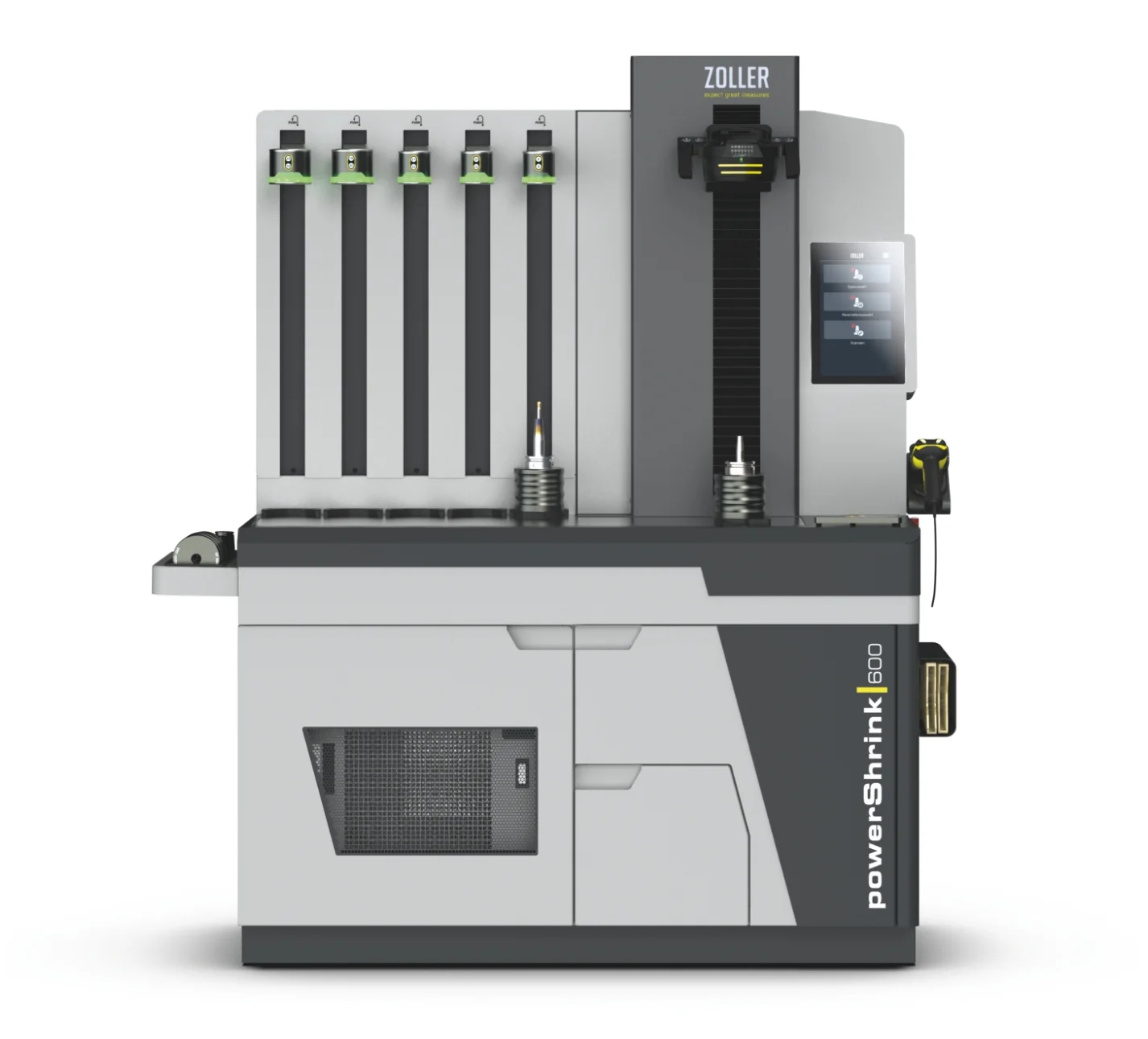

Tool Heat Shrink Technology: Your Advantages
Read how we have achieved significant increases in energy efficiency, process speed and ergonomics. Use perfection for your production.
Learn more
ZOLLER Professional – for ultimate perfection
Cooling bells with »coolbyLight«
Innovative cooling bells with »coolbyLight«
Innovative cooling bells with »coolbyLight« operator guidance, cooling management and diameter display – guide the operator safely through the cooling process, with the help of the color system and the LEDs on the cooling bells. In addition, the cooling bells are labeled with the corresponding tool diameters. The intelligent cooling system, the cooling manager, coordinates the cooling times depending on the tool diameter and switches off the cooling module after a defined time. This saves additional energy. The »powerShrink 600« is optionally also available with standard cooling bells.
Induction coil
Induction coil with »varOct« shielding system
Intelligent induction coil with »varOct« shielding system – with ergonomic handles on the left and right side, including membrane function buttons for moving the coil and activating the heating process. Thanks to the maximum diameter of 45.8 mm, tools with larger cutting diameters can also be simply clamped and unclamped. With the help of a grid, the inner diameter of the shielding system »varOct« can simply be adjusted to the required diameter, either manually or automatically.
Along with »coolbyLight«, ZOLLER »shrinkbyLight« is one of the two functions of the ZOLLER »actbyLight« operator guidance. This optionally available operator guidance of the coil uses LEDs to indicate which windings are active and whether the selected diameter is in accordance with the selected data record. This rules out the possibility of an incorrectly set coil! The fume extraction unit ensures the operator’s safety.
TFT touch monitor
13.3" TFT touch monitor, with ZOLLER »pilot« software
Industrial 13.3" TFT touch monitor, with ZOLLER »pilot« software – impresses with a razor-sharp display and simple operation via touch. The clearly structured graphic software interface intuitively guides you through the shrink process, with the help of large function areas and colors.
Induction coil axis
Induction coil axis
Smooth-running induction coil axis – for fast and comfortable movement of the coil. The pneumatic release of the axis clamping, the high-precision THK linear guide and the counterweight enable ergonomic workflows and ensure a long service life. The maximum tool length is 600 mm.
Cooling Bell Guide
Cooling bell guide
Smooth-running, linear, mechanical cooling bell guide – permits exact and safe positioning of the cooling bells on your heat shrink tool holders. A counterweight ensures that the cooling bell does not drop abruptly when it is released via the push-to-release mechanism. This is safe and provides protection against injuries. The guide also ensures that the cooling bell does not touch the cutting edge during placement, thereby preventing damage to it.
Optionally also available with a simple fixing mechanism.
Work surface
Robust and smooth work surface
Robust and smooth work surface – made from stainless steel, offers sufficient space for the heating and cooling of your shrink fit holders. The material is optimally matched to the holder pot so that shifting the tool is easy, quiet and fast.
Tool Tray
Tool tray
Tool tray – for storing shank tools and providing quick access right on the machine.
Handheld scanner
Practical hand scanner
Practical hand scanner – for a rapid and safe start of your shrink-clamping process. Simply scan the DataMatrix code on the ZOLLER »idChip« and you will immediately have all necessary shrinking parameters available in the »pilot« software.
Storage Boards
Ergonomic storage boards left and right
Ergonomic storage boards left and right – offer space for positioning cleaning brushes, safety gloves, cooling adapters and mounting rings close to the process, thereby rounding off the ergonomic operation of the device.
Stable table
Stable table
Stable table – provides the perfect basis for a long-lasting product, thanks to its particularly robust construction. For maintenance and checks, the front door can be opened and the water cooler, mounted on a drawer, can be pulled out.
Storage space
Large storage space
Large storage space – for cooling components, fume extraction unit and for storing your accessories such as the unclamping device. All components are stored in a structured and tidy manner in three compartments integrated in the table, including an extendable drawer.
