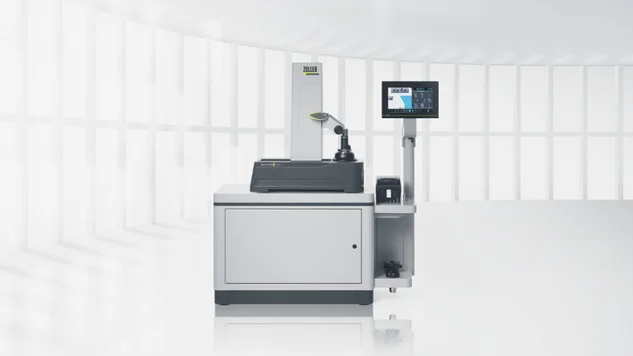

»smile 320«
Software »pilot« | 13" monitor
Learn more
Heroes of the workshop
Pass every endurance test: With a base body made of a light metal alloy specially developed for measuring devices and equipped with high-quality branded components, "smile" devices are extremely robust and durable. Whether for large-scale production or medium-sized companies - the different sizes, electronics and equipment variants make "smile" ideal for day-to-day use in any production facility, even right next to the CNC machine.
One precise base, three controls.

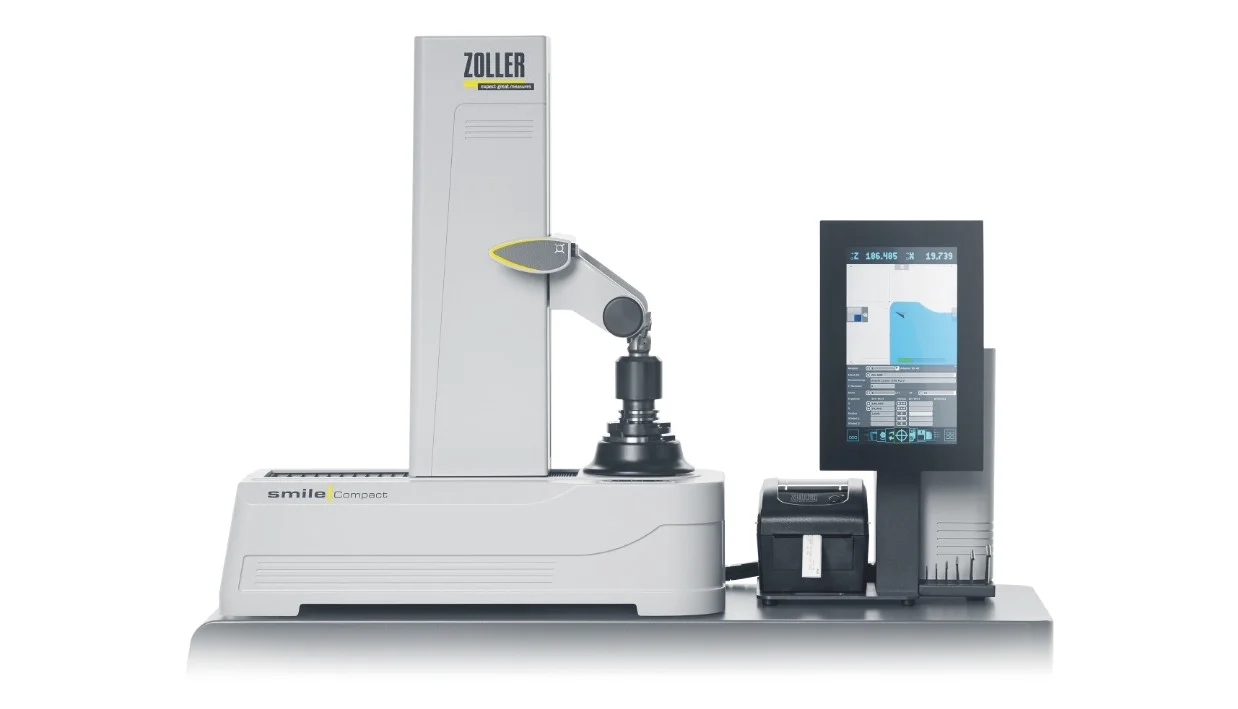

The ZOLLER »smile« entry-level models are equipped with high-quality brand components and are available with the three measuring device software versions "pilotBasic", "pilotStarter" and "pilot 2 mT". You get precise results straight away - without the need for training. Ideal for all standard tools and designed for the tool requirements of medium and small batch sizes. Robust, space-saving and flexible placement directly next to the CNC machine, in the workshop or in production islands.
In short - the »smileCompact« is the perfect introduction to the world of ZOLLER.
One-hand operating handle
One-hand operating handle
For quick and safe adjustment of the measuring carriage in both axes at the touch of a button.
Image Processing | Optics
Image processing | Optics
Reliable precision guaranteed - with telecentric lens and CCD camera including integrated 360° LED incident light for cutting edge inspection.
High-precision spindle SK50
High-precision spindle SK50
Impresses with integrated calibration spheres and a concentricity of 0.002 mm. Separate zero gauges are superfluous.
User interface
User interface
ZOLLER measuring device control (Panel PC) with 13" touch display.
Table electronics
Table electronics
Desk electronics with variable monitor position and space for label printer and key rack.
Label printer
Label printer
The label printer outputs the necessary tool parameters, such as ID and adapter numbers, Z, X, radius dimensions and angles as plain text or codes.
Membrane keypad
Membrane keypad
The membrane keypad controls all power-operated spindle functions such as spindle brake, 4 x 90° locking and optionally available vacuum clamping.
One-hand operating handle
One-hand operating handle
One-hand operating handle
For quick and safe adjustment of the measuring carriage in both axes at the touch of a button.
Image Processing | Optics
Image Processing | Optics
Image processing | Optics
Reliable precision guaranteed - with telecentric lens and CCD camera including integrated 360° LED incident light for cutting edge inspection.
High-precision spindle SK50
High-precision spindle SK50
High-precision spindle SK50
Impresses with integrated calibration spheres and a concentricity of 0.002 mm. Separate zero gauges are superfluous.
User interface
User interface
User interface
ZOLLER measuring device control (Panel PC) with 13" touch display.
Table electronics
Table electronics
Table electronics
Desk electronics with variable monitor position and space for label printer and key rack.
Label printer
Label printer
Label printer
The label printer outputs the necessary tool parameters, such as ID and adapter numbers, Z, X, radius dimensions and angles as plain text or codes.
Membrane keypad
Membrane keypad
Membrane keypad
The membrane keypad controls all power-operated spindle functions such as spindle brake, 4 x 90° locking and optionally available vacuum clamping.

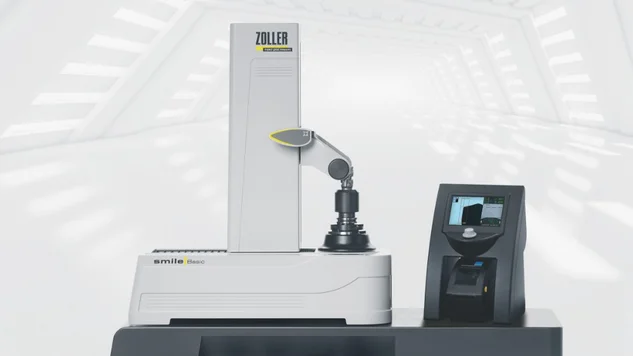

From »pilotBasic«
to »smileBasic«
The »pilotBasic« electronics with a 7-inch monitor turn »smile« devices into a »smileBasic«. You benefit from quick familiarization and fast measurement, setting, and checking of tools. The focus lies on the basic requirements of professional tool presetting: fast measurement results at the touch of a button and cutting-edge inspection with 12x magnification.

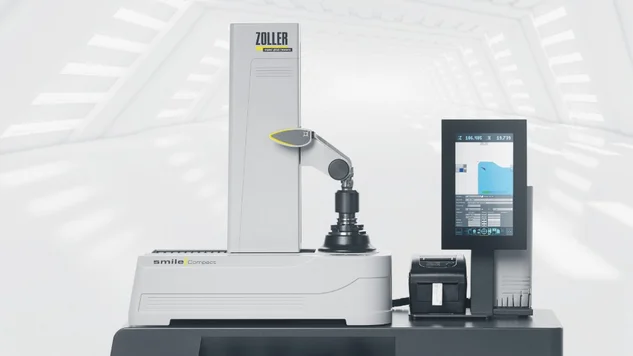

With »pilotStarter« to »smileCompact«
A »smileCompact« presetting device comes with the basic unit plus the »pilotStarter« measuring device software. This software is characterized by its simple operation and practical functions: measurement macros with tool images for quick and easy measurement, automatic detection of the cutting-edge shape and measuring range, determination and measurement of the maximum contour, and the »compass« navigation system
for exact and user-independent target position positioning.

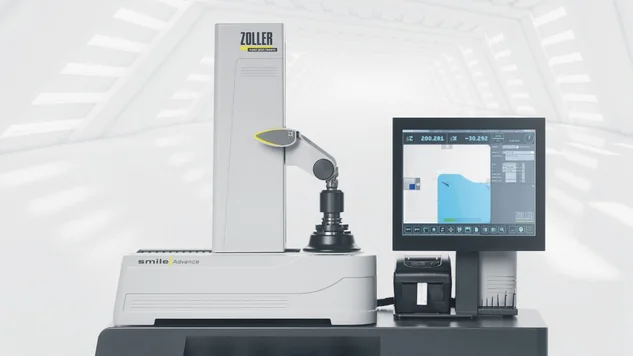

With »pilot 2 mT« to »smileAdvance«
With a ZOLLER »smileAdvance« presetting and measuring machine and the »pilot 2 mT« measuring machine software, you simply get more: more measuring functions, more space thanks to a 17" color monitor, more flexibility thanks to areas that can be customized in size, such as the cutting edge pattern, and more functions: management of your machines, setup sheets, and graphics, as well as tool data transmission in controller format to your machine.
Change the efficiency of your manufacturing
»smile« will reduce costs in your production and enable your machines and tools to spend more time in production. It is a precise investment that quickly pays for itself.
Take advantage of our starter package »smile 420 / pilot 4.0« today.
Request a quote
