»smile 320«
Software »pilot« | 13-inch monitor
Learn more
Heroes of the Shop Floor
Passing Every Durability Test: With a main body made of a lightweight metal alloy developed specifically for measuring machines and equipped with high-quality brand-name components, »smile« devices are extremely robust and durable. Whether in large-scale production or a medium-sized operation—thanks to the various sizes, electronics, and configuration options, »smile« is ideal for day-to-day use in any manufacturing environment, even right next to the CNC machine.
The entry-level compact class

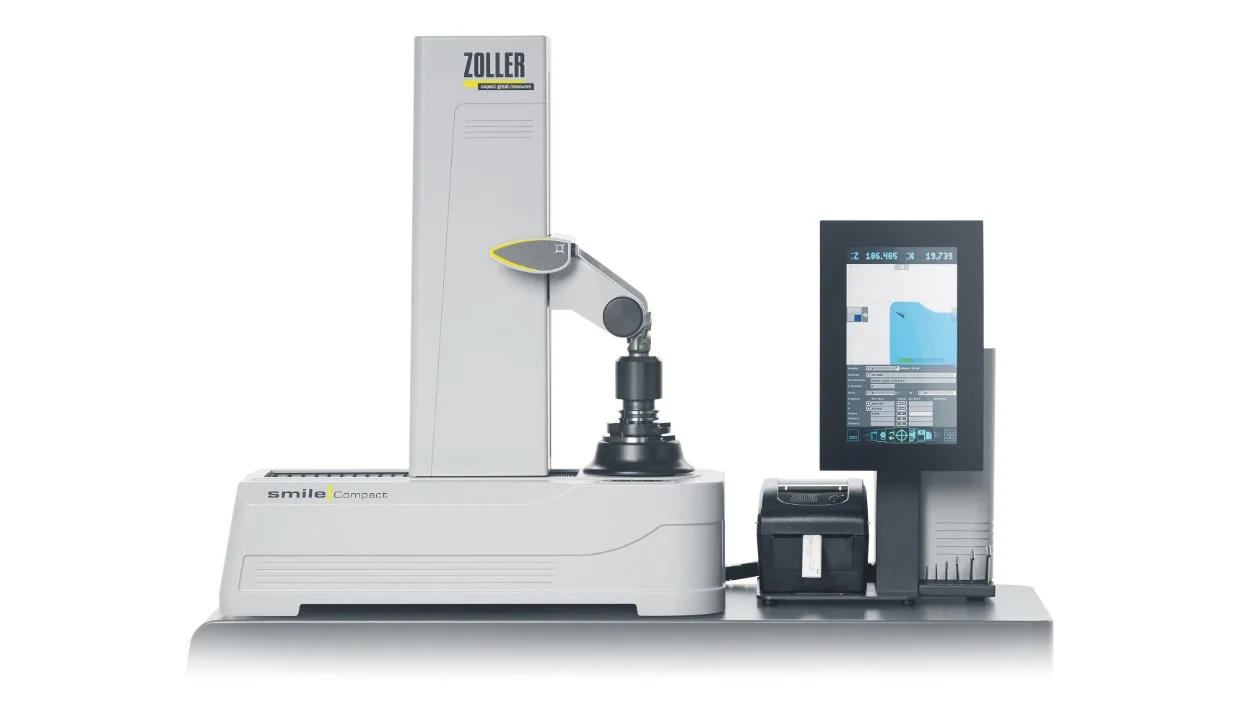

The ZOLLER »smile« entry-level models are equipped with high-quality brand-name components and are available with three software options: »pilotBasic«, »pilotStarter«, and »pilot 2 mT«. You’ll get precise results right away—without the need for training. Ideal for all standard tools and designed to meet the tooling needs of small and medium-sized batch sizes. Robust, space-saving, and flexible—it can be placed right next to the CNC machine, on the shop floor, or in production cells.
In short—the »smileCompact« is the perfect introduction to the world of ZOLLER.
One-Hand Control Handle
One-Hand Control Handle
For quick and safe adjustment of the measuring slide on both axes at the push of a button.
Image Processing | Optics
Image Processing | Optics
Reliable precision guaranteed—with a telecentric lens and CCD camera, including integrated 360° LED incident light for cutting-edge inspection.
SK50 High-Precision Spindle
SK50 High-Precision Spindle
Impressive features include integrated calibration balls and a runout accuracy of 0.002 mm. Separate zero gauges are unnecessary.
User Interface
User Interface
ZOLLER measuring machine control (panel PC) with a 13-inch touchscreen.
Table Electronics
Table Electronics
Table electronics with variable monitor position and space for a label printer and keyboard tray.
Label Printer
Label Printer
The label printer outputs necessary tool parameters, such as ID and adapter numbers, Z and X coordinates, radius measurements, and angles, in plain text or as codes.
Membrane Keypad
Membrane Keypad
The membrane keypad controls all power-operated functions of the spindle, such as the spindle brake, 4 x 90° indexing, and the optional vacuum clamp.
One-Hand Control Handle
One-Hand Control Handle
One-Hand Control Handle
For quick and safe adjustment of the measuring slide on both axes at the push of a button.
Image Processing | Optics
Image Processing | Optics
Image Processing | Optics
Reliable precision guaranteed—with a telecentric lens and CCD camera, including integrated 360° LED incident light for cutting-edge inspection.
SK50 High-Precision Spindle
SK50 High-Precision Spindle
SK50 High-Precision Spindle
Impressive features include integrated calibration balls and a runout accuracy of 0.002 mm. Separate zero gauges are unnecessary.
User Interface
User Interface
User Interface
ZOLLER measuring machine control (panel PC) with a 13-inch touchscreen.
Table Electronics
Table Electronics
Table Electronics
Table electronics with variable monitor position and space for a label printer and keyboard tray.
Label Printer
Label Printer
Label Printer
The label printer outputs necessary tool parameters, such as ID and adapter numbers, Z and X coordinates, radius measurements, and angles, in plain text or as codes.
Membrane Keypad
Membrane Keypad
Membrane Keypad
The membrane keypad controls all power-operated functions of the spindle, such as the spindle brake, 4 x 90° indexing, and the optional vacuum clamp.
From »pilotBasic«
to »smileBasic«

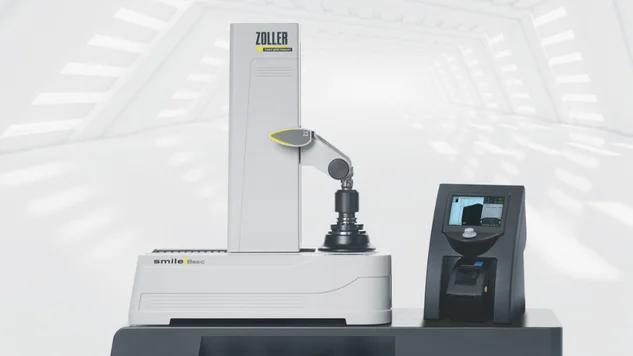

The »pilotBasic« electronics system with a 7-inch monitor transforms »smile« devices into a »smileBasic«. You’ll benefit from a quick learning curve and fast measurement, adjustment, and inspection of tools. The focus lies on the basic requirements of professional tool presetting: fast measurement results at the push of a button and cutting-edge inspection with 12x magnification.
From »pilotStarter« to »smileCompact«

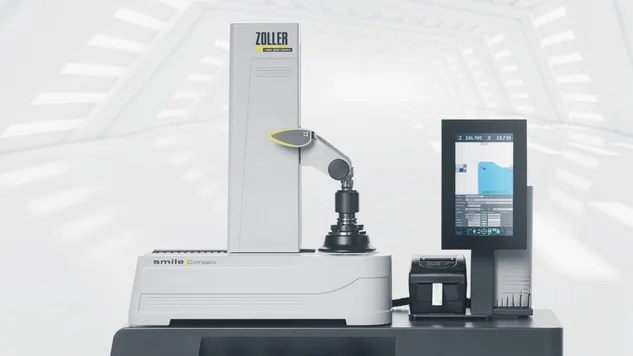

A »smileCompact« presetting unit comes with the base unit plus the »pilotStarter« measuring software. This software stands out for its simple operation and practical functions: Measurement macros with tool images for quick and simple measurement, automatic detection of the cutting-edge shape and measurement range, determination and measurement of the maximum contour, and the »compass« navigation system
for exact, user-independent positioning of the target dimension.
With »pilot 2 mT« to »smileAdvance«

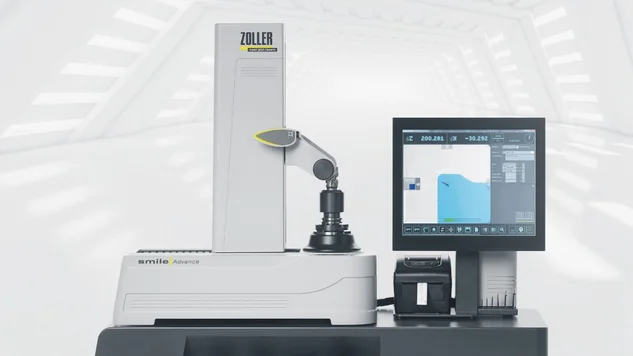

With a ZOLLER »smileAdvance« presetting and measuring machine and the »pilot 2 mT« measuring software, you simply get more: more measuring functions, more screen space thanks to the 17-inch color monitor, more flexibility thanks to freely resizable areas such as the cutting edge pattern, and more features: Management of your machines, setup sheets, and graphics, as well as tool data transmission to your machine in controller format.
Improve the Efficiency of Your Manufacturing Operations
»smile« will reduce your manufacturing costs and maximize the uptime of your machines and tools. It’s a smart investment that pays for itself quickly.
Take advantage of our starter package »smile 420 / pilot 4.0« today.
