»smileCheck«
Compact basic model
Learn more
Technical Data

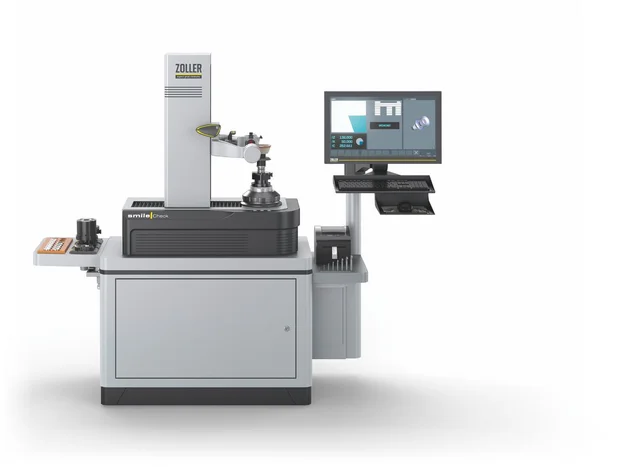

| »smileCheck« – Z420 | |
| Maximum tool length Z | 420 mm |
| Maximum tool diameter D | 420/460/620 mm |
| Maximum groove gauge diameter d | 70 mm |
| Travel range Y-axis | ± 50 mm (optional) |
| Number of axes | 3-4 |
| Height H1 | 1750 mm |
| »smileCheck« – Z600 | |
| Maximum tool length Z | 600 mm |
| Maximum tool diameter D | 420/460/620 mm |
| Maximum groove gauge diameter d | 70 mm |
| Travel range Y-axis | ± 50 mm (optional) |
| Number of axes | 3-4 |
| Height H1 | 1950 mm |
| »smileCheck« – Z800 | |
| Maximum tool length Z | 800 mm |
| Maximum tool diameter D | 420/460/620 mm |
| Maximum gauge diameter d | 70 mm |
| Travel range Y-axis | ± 50 mm (optional) |
| Number of axes | 3-4 |
| Height H1 | 2150 mm |

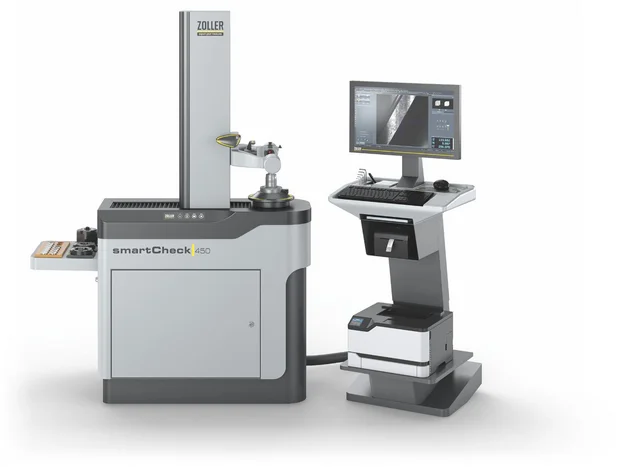

| »smartCheck 450« – Z450 | |
| Maximum tool length Z | 450 mm |
| Maximum tool diameter D | 420/460/620 mm |
| Maximum groove gauge diameter d | 70 mm |
| Travel range Y-axis | ± 50 mm (optional) |
| Number of axes | 3-4 |
| Height H1 | 1750 mm |
| »smartCheck 450« – Z620 | |
| Maximum tool length Z | 620 mm |
| Maximum tool diameter D | 420/460/620 mm |
| Maximum groove gauge diameter d | 70 mm |
| Travel range Y-axis | ± 50 mm (optional) |
| Number of axes | 3-4 |
| Height H1 | 1950 mm |
| »smartCheck 450« – Z820 | |
| Maximum tool length Z | 820 mm |
| Maximum tool diameter D | 420/460/620 mm |
| Maximum gauge diameter d | 70 mm |
| Travel range Y-axis | ± 50 mm (optional) |
| Number of axes | 3-4 |
| Height H1 | 2150 mm |

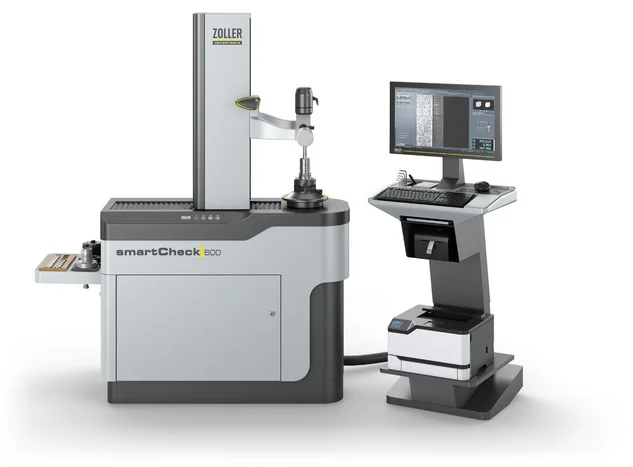

| »smartCheck 600« – Z600 | |
| Maximum tool length Z | 600 mm |
| Maximum tool diameter D | 560/600/660/800 mm |
| Maximum groove gauge diameter d | 65/85 mm |
| Travel range Y-axis | ± 100 mm |
| Number of axes | 3-4 |
| Height H1 | 1936 mm |
| »smartCheck 600« – Z800 | |
| Maximum tool length Z | 800 mm |
| Maximum tool diameter D | 560/600/660/800 mm |
| Maximum gauge diameter d | 65/85 mm |
| Travel range Y-axis | ± 100 mm |
| Number of axes | 3-4 |
| Height H1 | 2136 mm |
| »smartCheck 600« – Z1000 | |
| Maximum tool length Z | 1000 mm |
| Maximum tool diameter D | 560/600/660/800 mm |
| Maximum gauge diameter d | 65/85 mm |
| Travel range Y-axis | ± 100 mm |
| Number of axes | 3-4 |
| Height H1 | 2336 mm |
| »smartCheck 600« – Z1200 | |
| Maximum tool length Z | 1200 mm |
| Maximum tool diameter D | 560/600/660/800 mm |
| Maximum gauge diameter d | 65/85 mm |
| Travel range Y-axis | ± 100 mm |
| Number of axes | 3-4 |
| Height H1 | 2536 mm |
| »smartCheck 800« – Z600 | |
| Maximum tool length Z | 600 mm |
| Maximum tool diameter D | 860/1000 mm |
| Maximum groove gauge diameter d | 85 mm |
| Travel range Y-axis | - |
| Number of axes | 3-4 |
| Height H1 | 1936 mm |
| »smartCheck 800« – Z800 | |
| Maximum tool length Z | 800 mm |
| Maximum tool diameter D | 860/1000 mm |
| Maximum groove gauge diameter d | 85 mm |
| Travel range Y-axis | - |
| Number of axes | 3-4 |
| Height H1 | 2136 mm |
| »smartCheck 800« – Z1000 | |
| Maximum tool length Z | 1000 mm |
| Maximum tool diameter D | 860/1000 mm |
| Maximum gauge diameter d | 85 mm |
| Travel range Y-axis | - |
| Number of axes | 3-4 |
| Height H1 | 2336 mm |
| »smartCheck 800« – Z1200 | |
| Maximum tool length Z | 1200 mm |
| Maximum tool diameter D | 860/1000 mm |
| Maximum gauge diameter d | 85 mm |
| Travel range Y-axis | - |
| Number of axes | 3-4 |
| Height H1 | 2536 mm |
