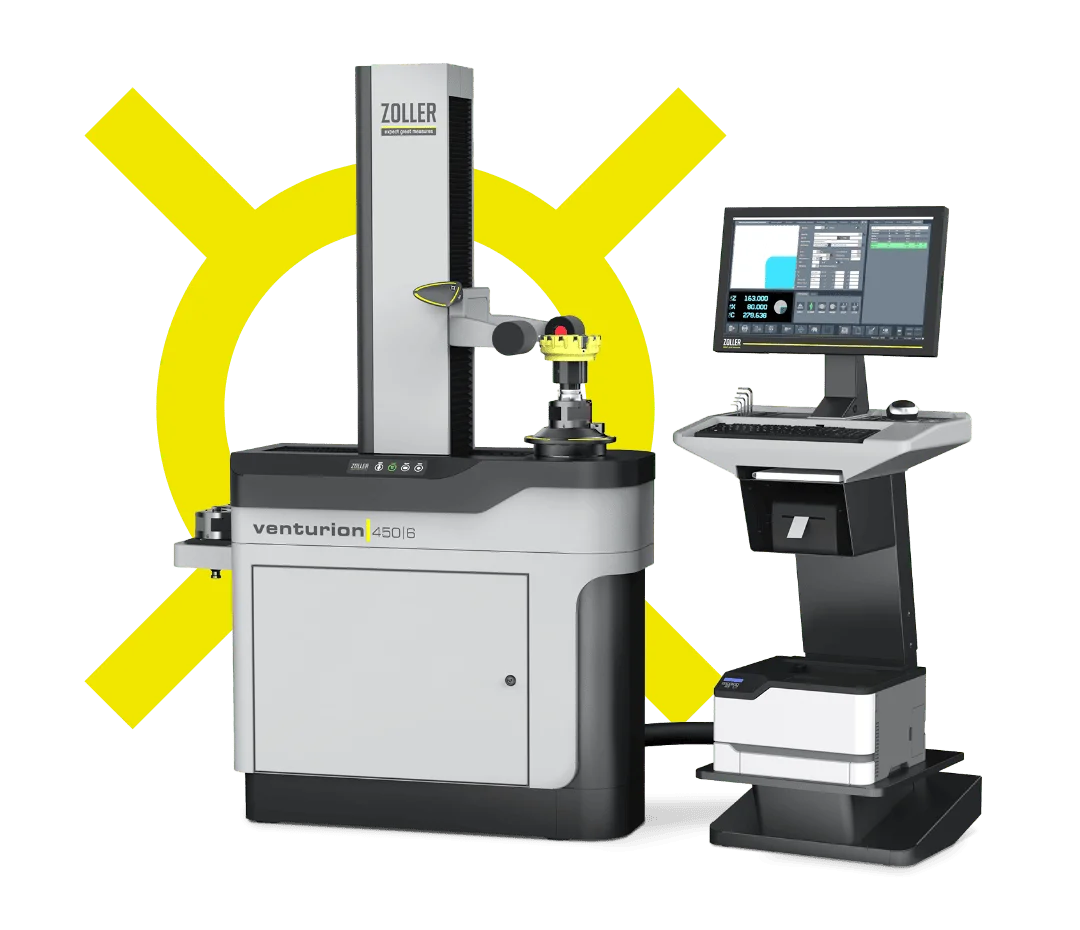

Presetting & Measuring
Scan at the presetting and measuring machine: the tool data is retrieved directly and the measuring parameters are loaded automatically. Every tool is measured the same way, every time.
Learn moreTool Holders · Tooling Solutions
»idChip«
Clearly identify every tool holder – at every station of your production
Tool identification
The digital identity of your tool holders

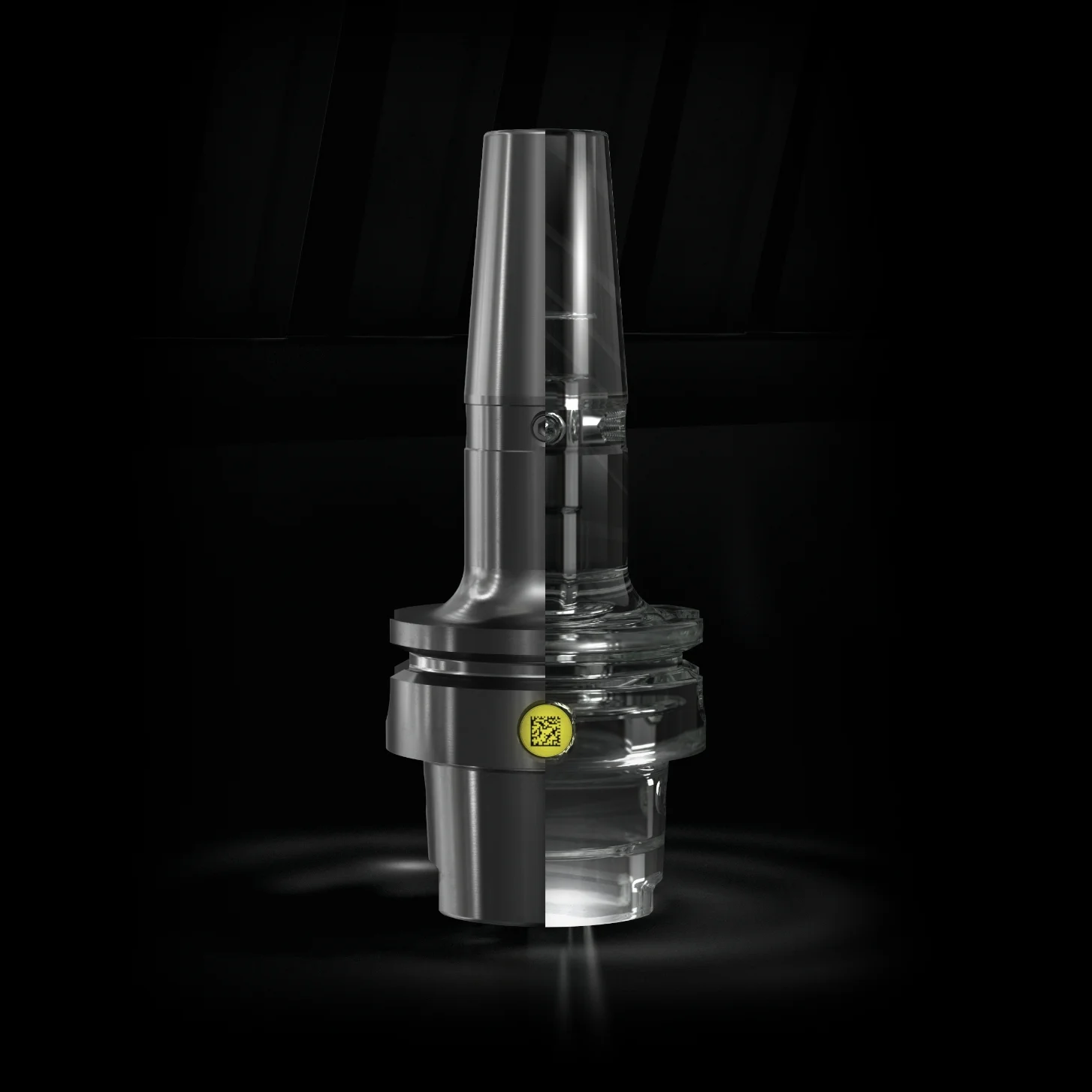

The ZOLLER »idChip« is a coded chip made of extremely robust plastic, permanently integrated into the tool holder. Its DataMatrix code makes every holder uniquely identifiable – at the presetting and measuring machine, at the shrink fit machine, in the tool storage and at the CNC machine.
This way you always know everything about your tool holders: number of heating cycles, uses on the machine and much more. Product service life, digital twin and further information are available anytime, anywhere – at costs far below those of RFID transponders.
Firmly integrated. Protected in the holder.

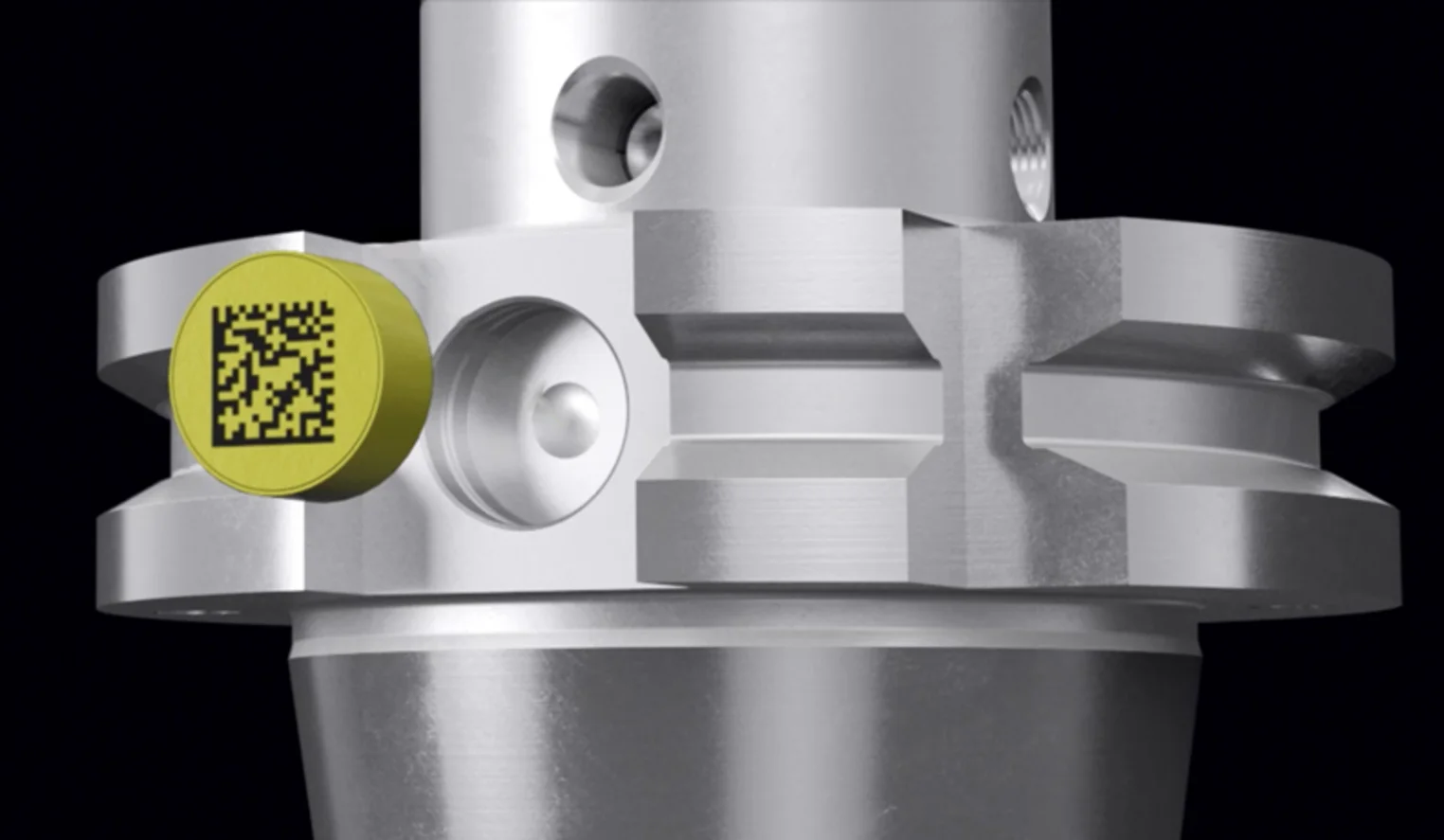

The »idChip« sits in the chip bore of the tool holder and is bonded in place with two-component adhesive. Together with the adhesive, the 3-groove technology in the chip bore creates a form fit – for a secure and firm connection. This keeps the chip protected while it remains clearly visible.

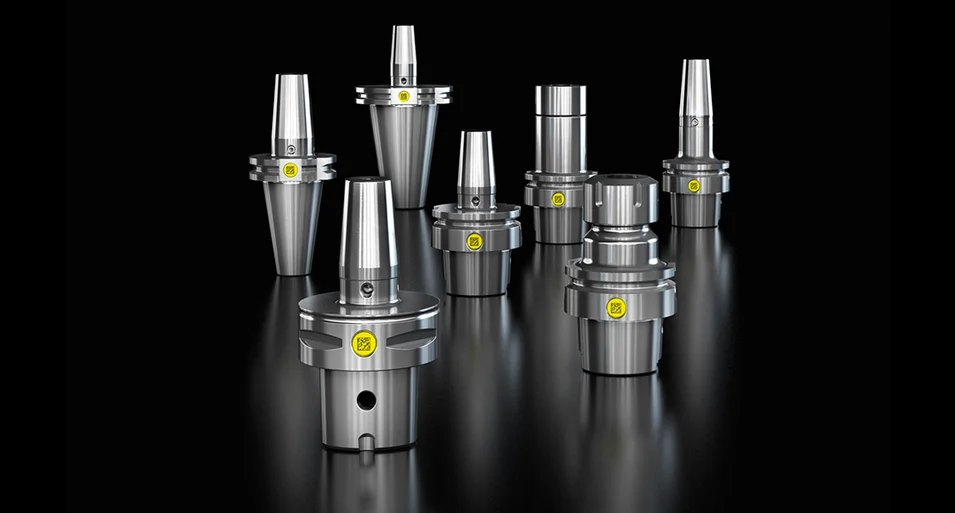

On ZOLLER Tooling tool holders with HSK-A hollow shank taper, SK steep taper and PSC polygonal shank taper, the chip bore is standard. It takes the »idChip« or other data carriers such as RFID chips.
Scan once. Know everything.

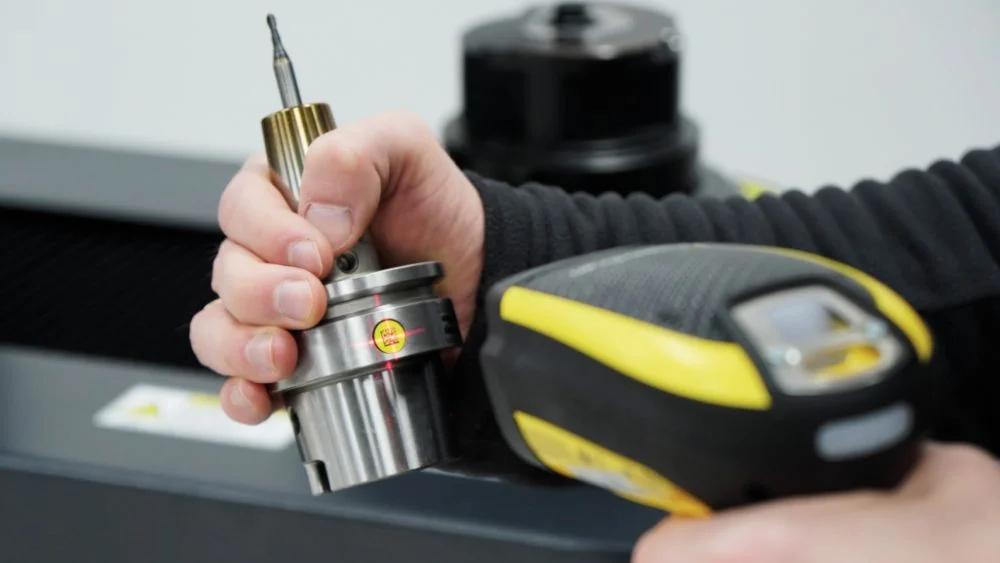

A single scan of the DataMatrix code is all it takes: the tool is uniquely identified and the associated tool data comes straight from the database. Input errors and mix-ups are a thing of the past.
All you need is a scanner that reads the DataMatrix code and software that manages your tool data. ZOLLER offers both with »zidCode 4.0« and TMS Tool Management Solutions.
In TMS Tool Management Solutions, every holder is managed by its ID. The »idChip« is intended as optional hardware for the »z.Shopfloor« and »z.Connectivity« add-ons.
One code for the entire tool cycle
The »idChip« accompanies the tool holder through every station – and ZOLLER solutions recognize it everywhere.
Tool Heat Shrink Technology
Scan at the »powerShrink«: all shrink parameters are instantly available in the »pilot« software. Every heating cycle is counted per shrink chuck, and warning and wear limits can be stored.
Learn more
At the machine
Scan with »zidCode 4.0« at the CNC machine: the tool data comes from the database and goes into the machine control quickly and without errors.
Learn more»idChip« or »idLabel«?
Both carry a DataMatrix code and make tools uniquely identifiable. Which solution fits depends on the application.

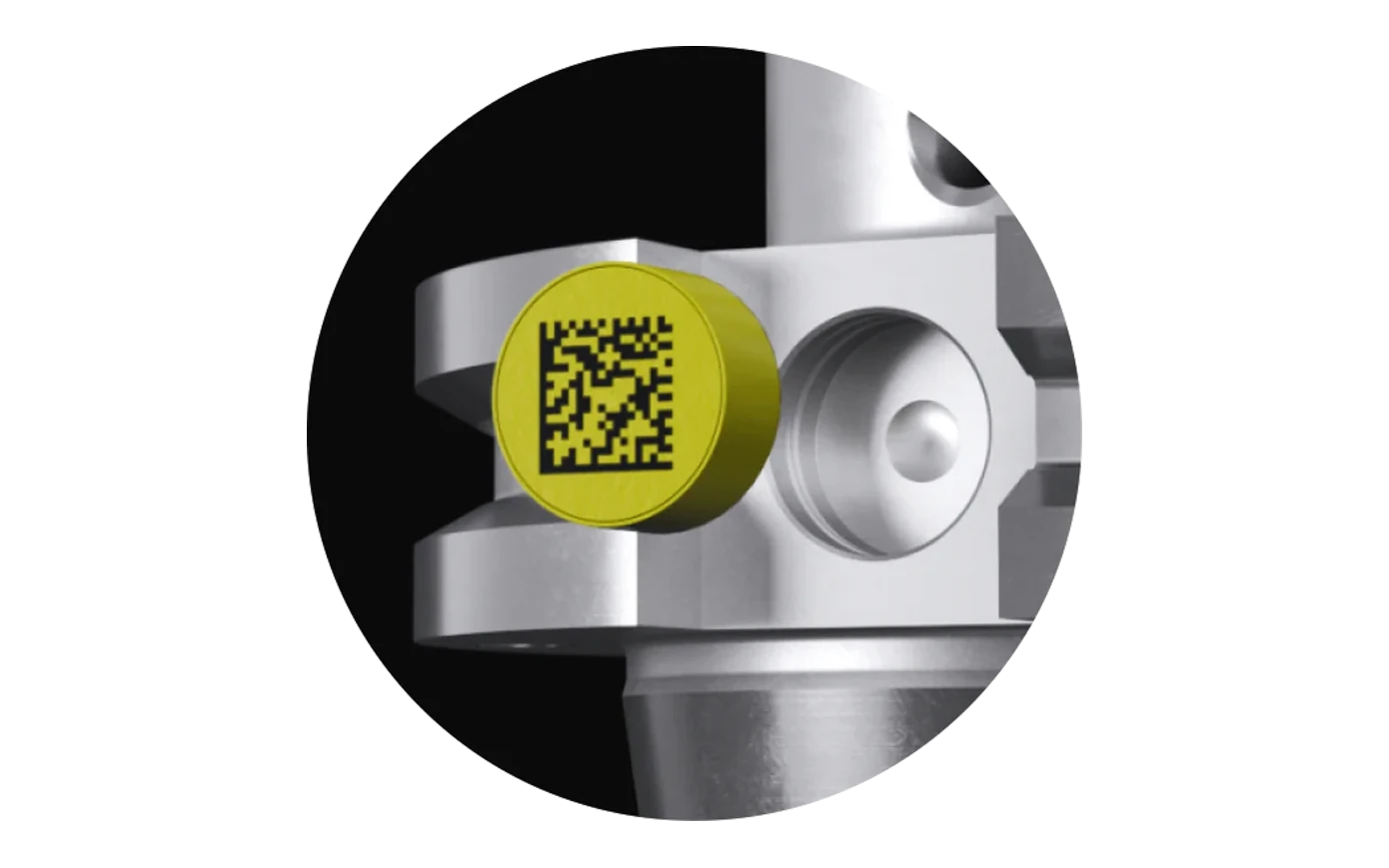

»idChip«
The better choice for rotating tools: firmly integrated in the holder, protected there and still clearly visible.

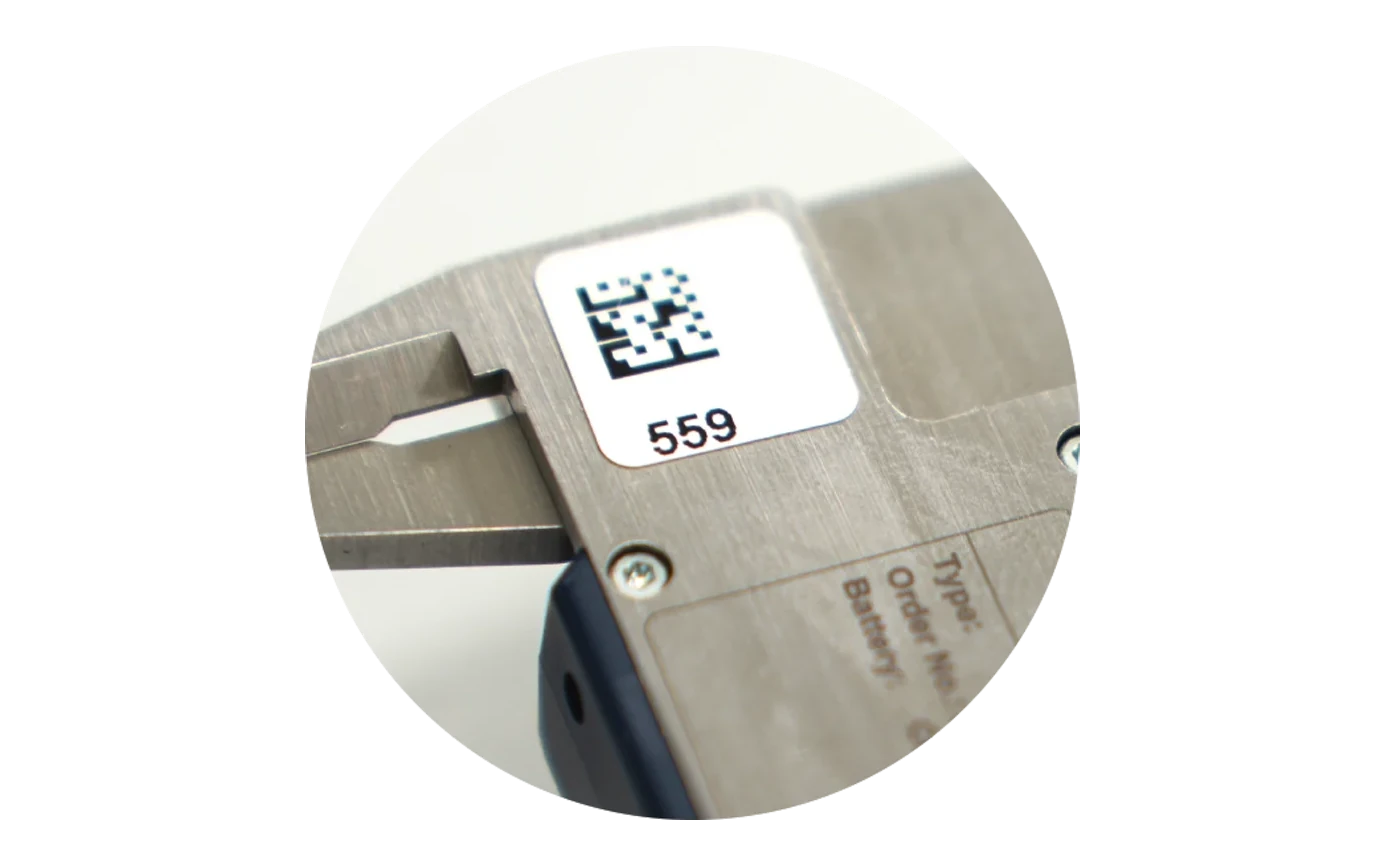

»idLabel«
Recommended for turning tools and fixtures that are not used in rotation: the resin-coated label is attached firmly and securely to the tool holder.
Factory-fitted or retrofitted
On request, we supply all ZOLLER Tooling tool holders with a permanently integrated »idChip« and DataMatrix code – balanced with the chip and delivered straight to your production.
Existing tools can also be fitted with the »idChip« at any time. Simply contact our sales team.
