Presetting & Measuring · Vertical Devices

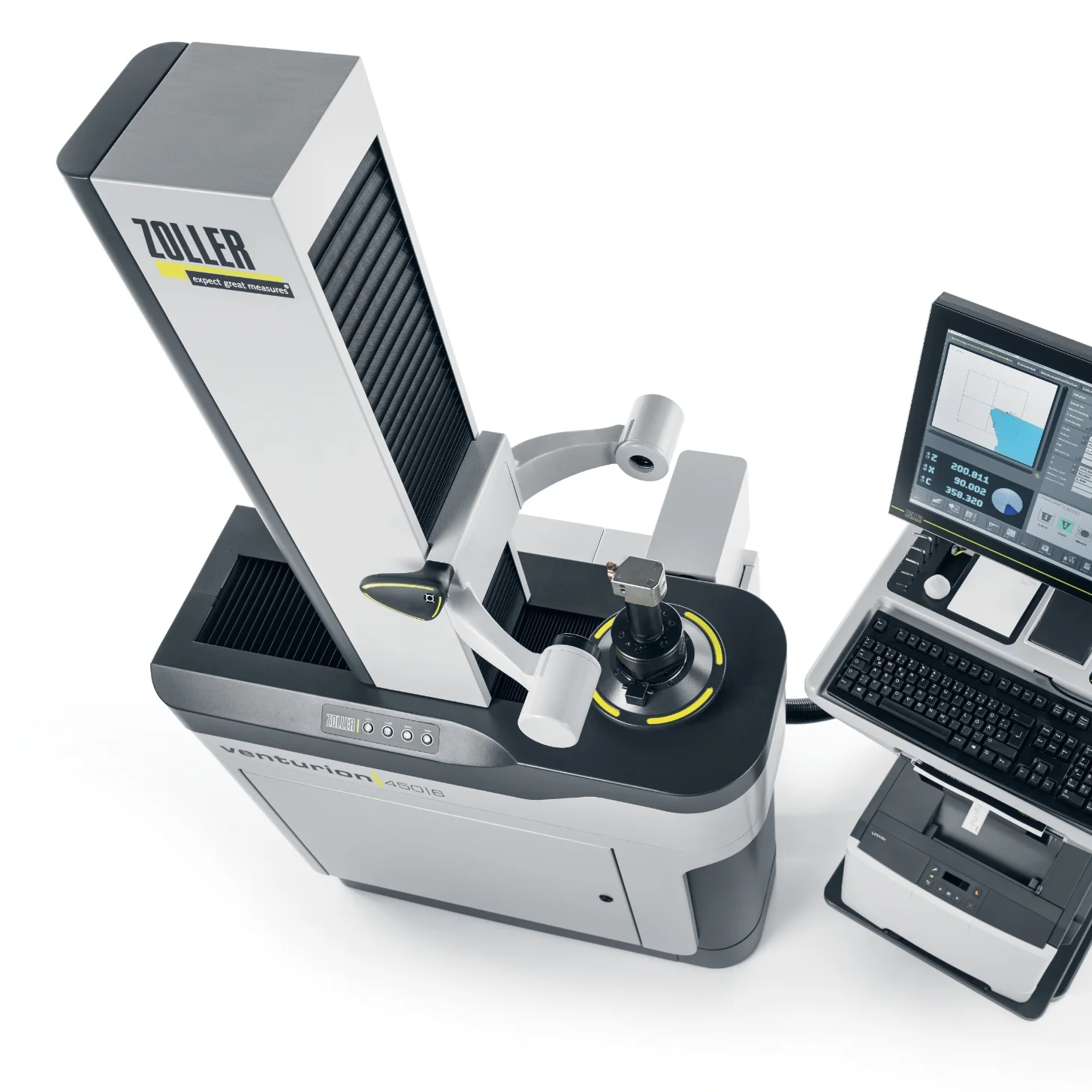

»venturion«
The premium system for professional tool
presetting and measurement
Turn Options into the Future
Every »venturion« represents a commitment to the future. It plays a significant role in realizing the vision of highly efficient manufacturing. You’ll be ready to meet the most demanding requirements for measuring and adjusting tools.
Augmented reality · 3D

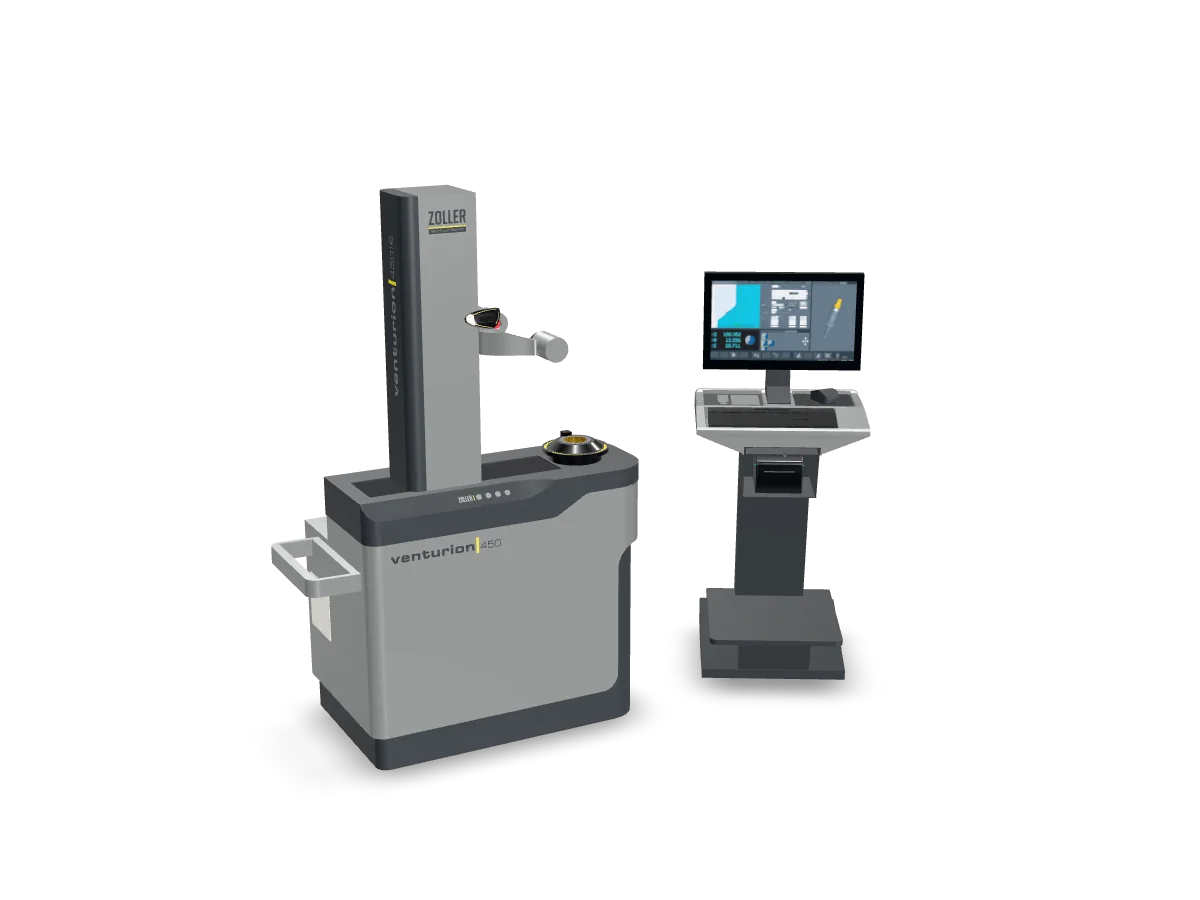

»venturion 450« at full size – on your shop floor
With augmented reality, the unit appears true to scale exactly where it will work: walk around it and check space and access before you order. On a computer, rotate and zoom the CAD model right here.
- Width
- 2.32 m
- Depth
- 0.85 m
- Height
- 1.94 m
- Footprint
- 1.96 m²
Overall dimensions of the CAD model in this configuration – may vary depending on equipment.
Open on your phone or tablet
Scan the QR code and place the unit at full size in your room – on iPhone, iPad or an Android device with ARCore.
Loading 3D model …
Drag to rotateFast and precise
Automatic zero-point monitoring
Premium quality at the best price-to-performance ratio

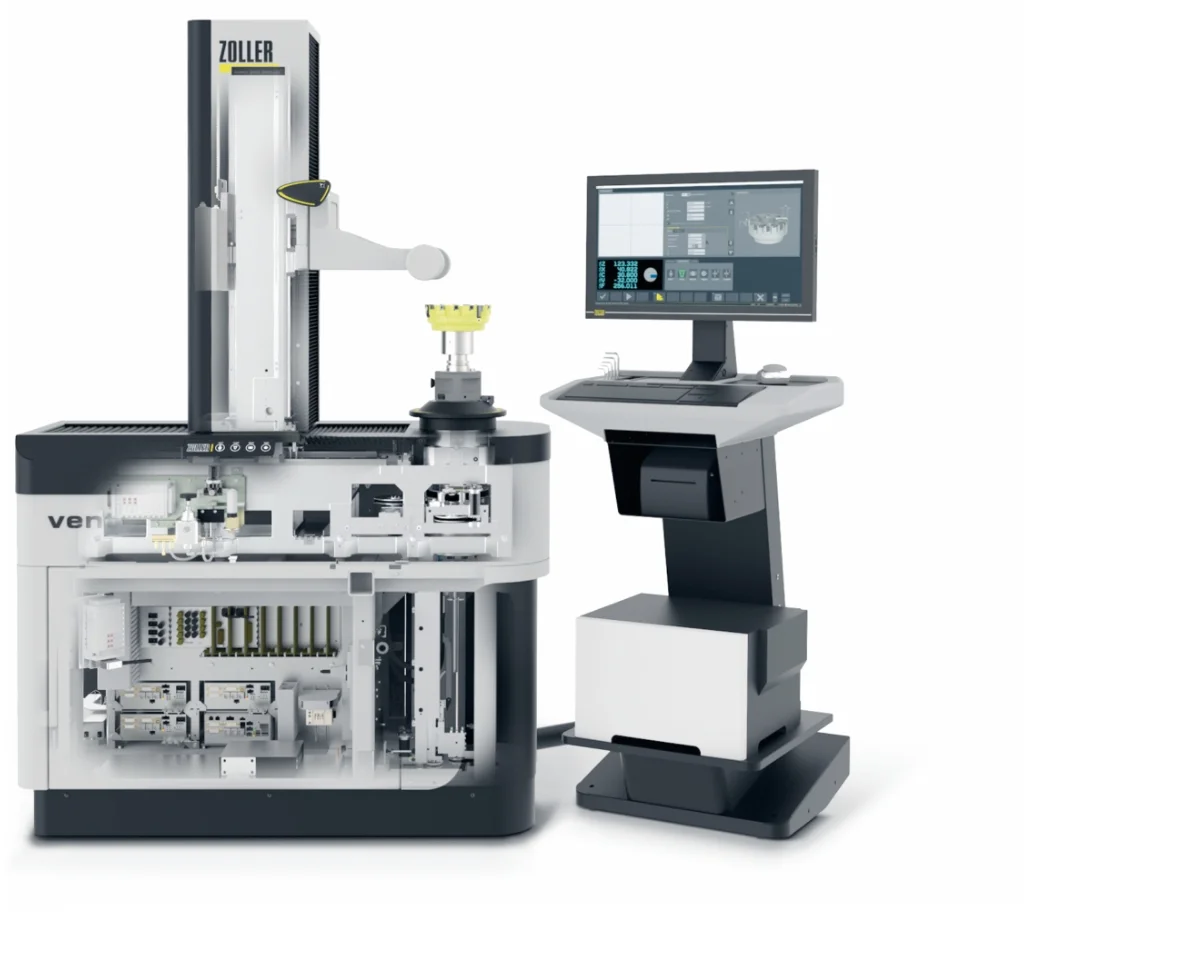

Compelling Reasons for ZOLLER's Quality
IPC with a 24-inch TFT color monitor
IPC with a 24-inch TFT color monitor
Designed to quickly process large amounts of data and immediately call up extensive programs and measurement sequences. The monitor delivers a crystal-clear representation.
Separate control unit »cockpit«
Separate Control Unit »cockpit«
Provides space for a keyboard and mouse, as well as storage for tools, a printer, and a scanner. The monitor is adjustable for height and inclination. The workplace is adjustable in just a few simple steps for comfortable working.
Main body along the Z-axis and X-axis
Main body on the Z-axis and the X-axis
Manufactured from a light-metal alloy developed specifically for measuring machines. Designed to absorb the weight and forces of the tools. Ensures long-term stability and precision for reliable measurement processes.
Bosch/Festo Pneumatic Components
Bosch/Festo Pneumatic Components
For the safe operation of pneumatic functions, such as the power clamping functions on the spindle.
Sturdy equipment base
Sturdy Equipment Base
The base of the device: This is where the computer, pneumatic elements, and electronics are housed, with sufficient space provided for easy accessibility and optimal ventilation. This effectively prevents the computer from overheating, allowing the system to run 24 hours a day.
IPC with a 24-inch TFT color monitor
IPC with a 24-inch TFT color monitor
IPC with a 24-inch TFT color monitor
Designed to quickly process large amounts of data and immediately call up extensive programs and measurement sequences. The monitor delivers a crystal-clear representation.
Separate control unit »cockpit«
Separate control unit »cockpit«
Separate Control Unit »cockpit«
Provides space for a keyboard and mouse, as well as storage for tools, a printer, and a scanner. The monitor is adjustable for height and inclination. The workplace is adjustable in just a few simple steps for comfortable working.
Main body along the Z-axis and X-axis
Main body along the Z-axis and X-axis
Main body on the Z-axis and the X-axis
Manufactured from a light-metal alloy developed specifically for measuring machines. Designed to absorb the weight and forces of the tools. Ensures long-term stability and precision for reliable measurement processes.
Bosch/Festo Pneumatic Components
Bosch/Festo Pneumatic Components
Bosch/Festo Pneumatic Components
For the safe operation of pneumatic functions, such as the power clamping functions on the spindle.
Sturdy equipment base
Sturdy equipment base
Sturdy Equipment Base
The base of the device: This is where the computer, pneumatic elements, and electronics are housed, with sufficient space provided for easy accessibility and optimal ventilation. This effectively prevents the computer from overheating, allowing the system to run 24 hours a day.
Automated Measurement
You’ll always receive precise measurement data for your tools, regardless of how they are used.
With CNC control, autofocus, and the intuitive »pilot 4.0« software, »venturion« brings automated tool measurement to your production facility.

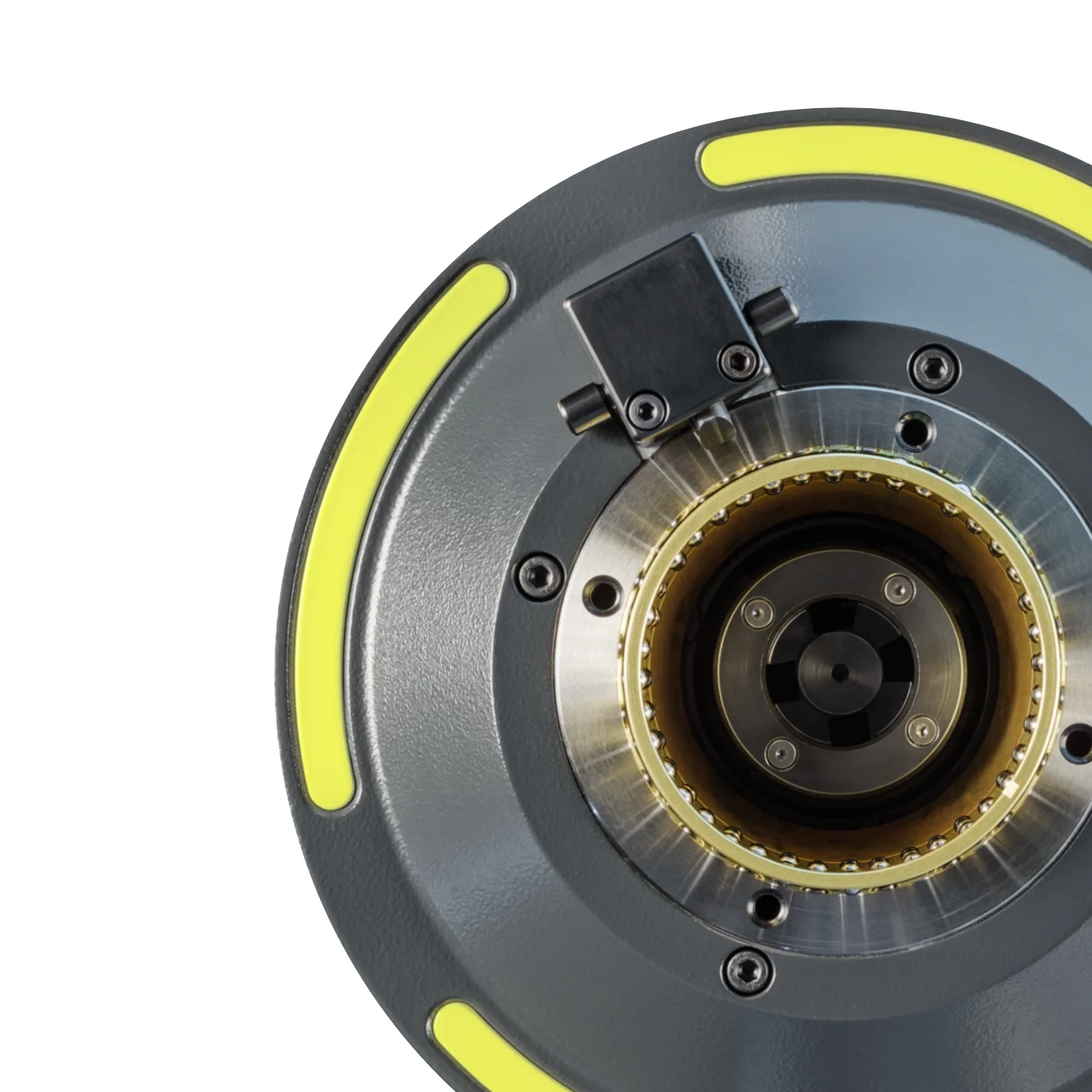

»ace« Spindle: Quick Changes
The »ace« spindle directly mounts any adapter tool post via its ball bushing with zero backlash. You can insert the appropriate tool holders in the adapter tool posts and clamp them using a power-operated mechanism, just as in a machine tool. A tool holder change takes 10 seconds with an accuracy of < 1 µm. The ROD rotary encoder captures the exact position of the C-axis.

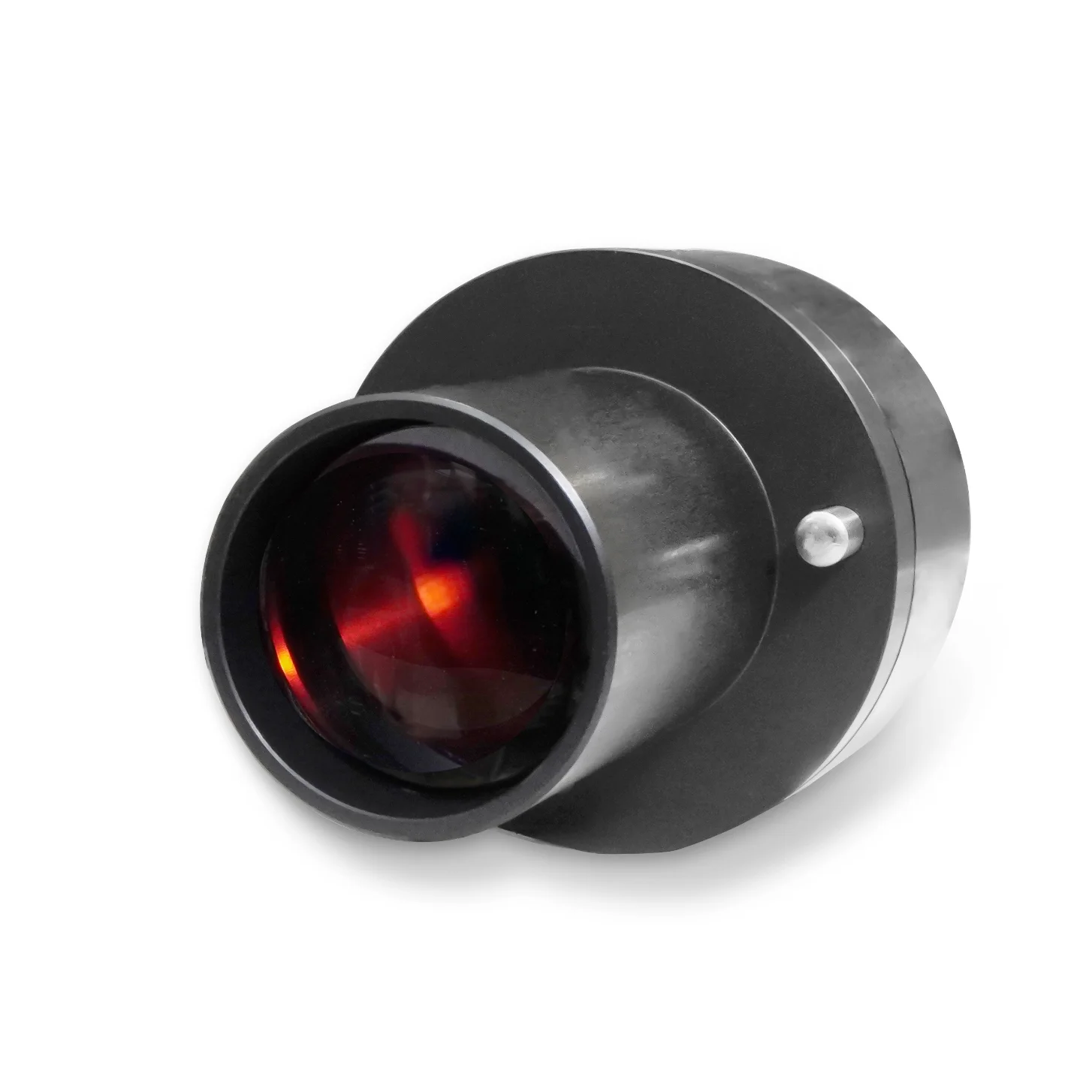

Optics with an Industrial Camera
A keen eye for detail: This high-quality lens features additional elements and captures every detail—with optional higher resolution.
Change what's holding you back from success
Your production facility is equipped with top-of-the-line machines, and your team is highly qualified and motivated. What’s missing is comprehensive geometry data for your tools and faster machine setup processes. It’s time to shape the future. It’s time for »venturion«.
ZOLLER »wearCheck«
Tool Wear Measurement with AI-Based Analysis
ZOLLER offers a reliable AI function for evaluating tool life. The goal is to use tools efficiently up to the technical wear limit—supported by system-based evaluation of real-world tool data.
On this basis, clear decisions can be made regarding continued use. This helps avoid unplanned machine downtime caused by tool failure.
