Automation · Tool Inspection
»roboSet 2«
The Time Machine: Unlocks
Potential for Value Creation with Every Inspection
Turn Experience into Success

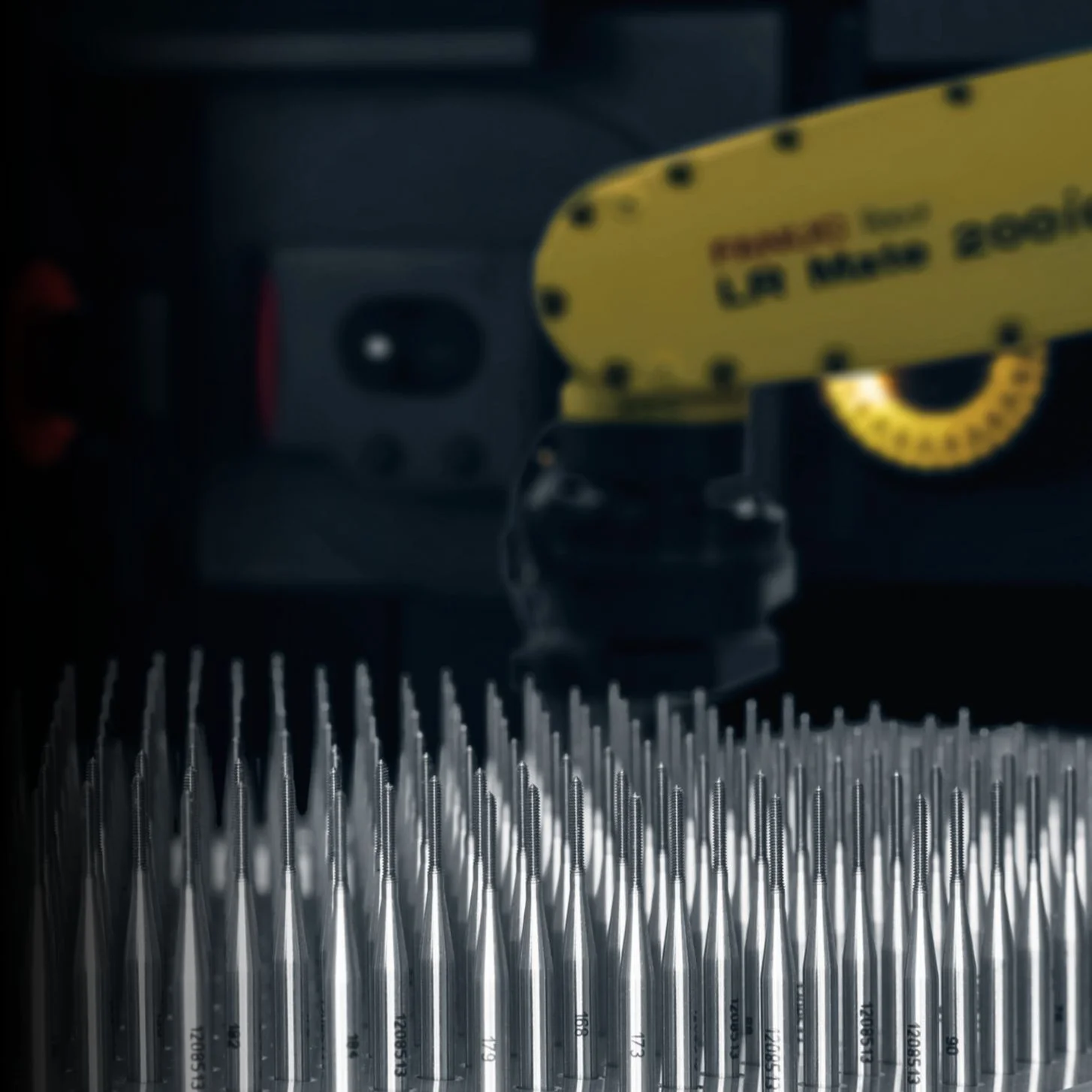

Space for eight pallets and plenty of tools—fully automated tool inspection is the best way to use skilled workers where they can make the biggest impact.
Tool sorting according to specifications
Generates documentation and tool history
Small footprint and quick return on investment
For endurance runs during the inspection
»cockpit«
»cockpit«
You can use the »roboSet 2« conveniently and simply using the »pilot« image processing technology.
Measuring Machine
Measuring Machine

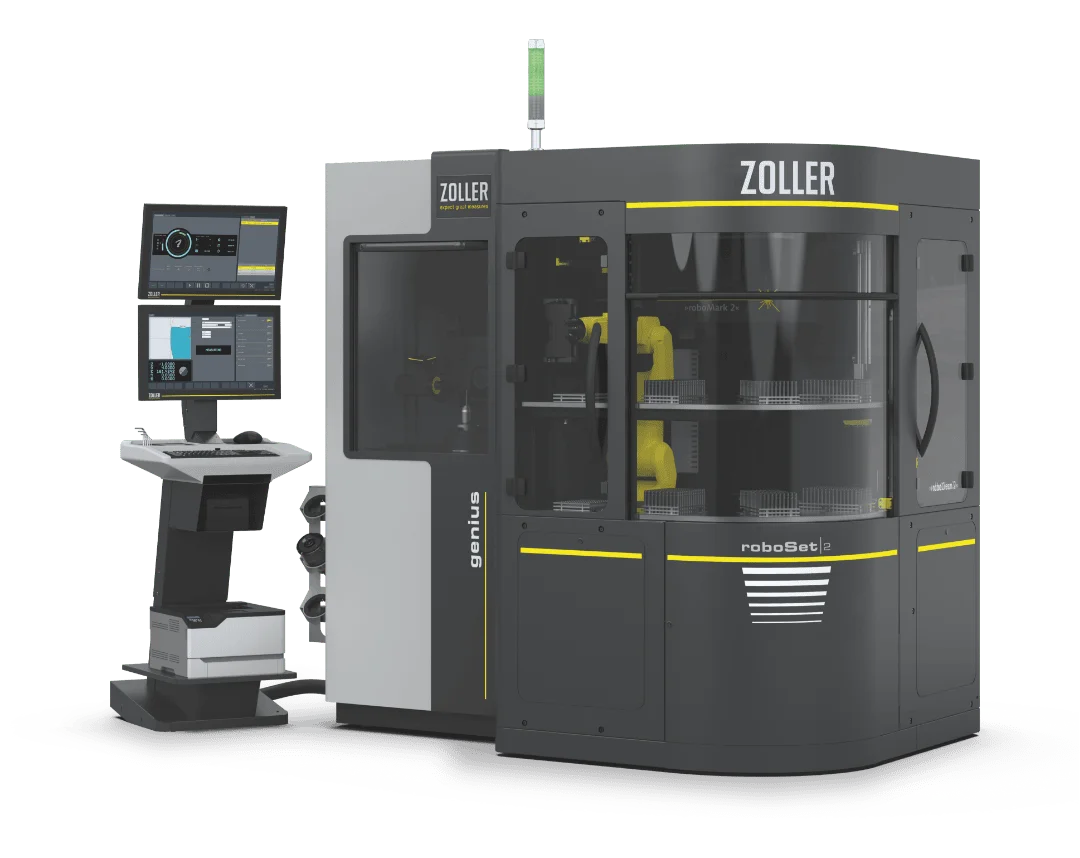

Can be combined with all measuring machines in the »genius« series from ZOLLER.

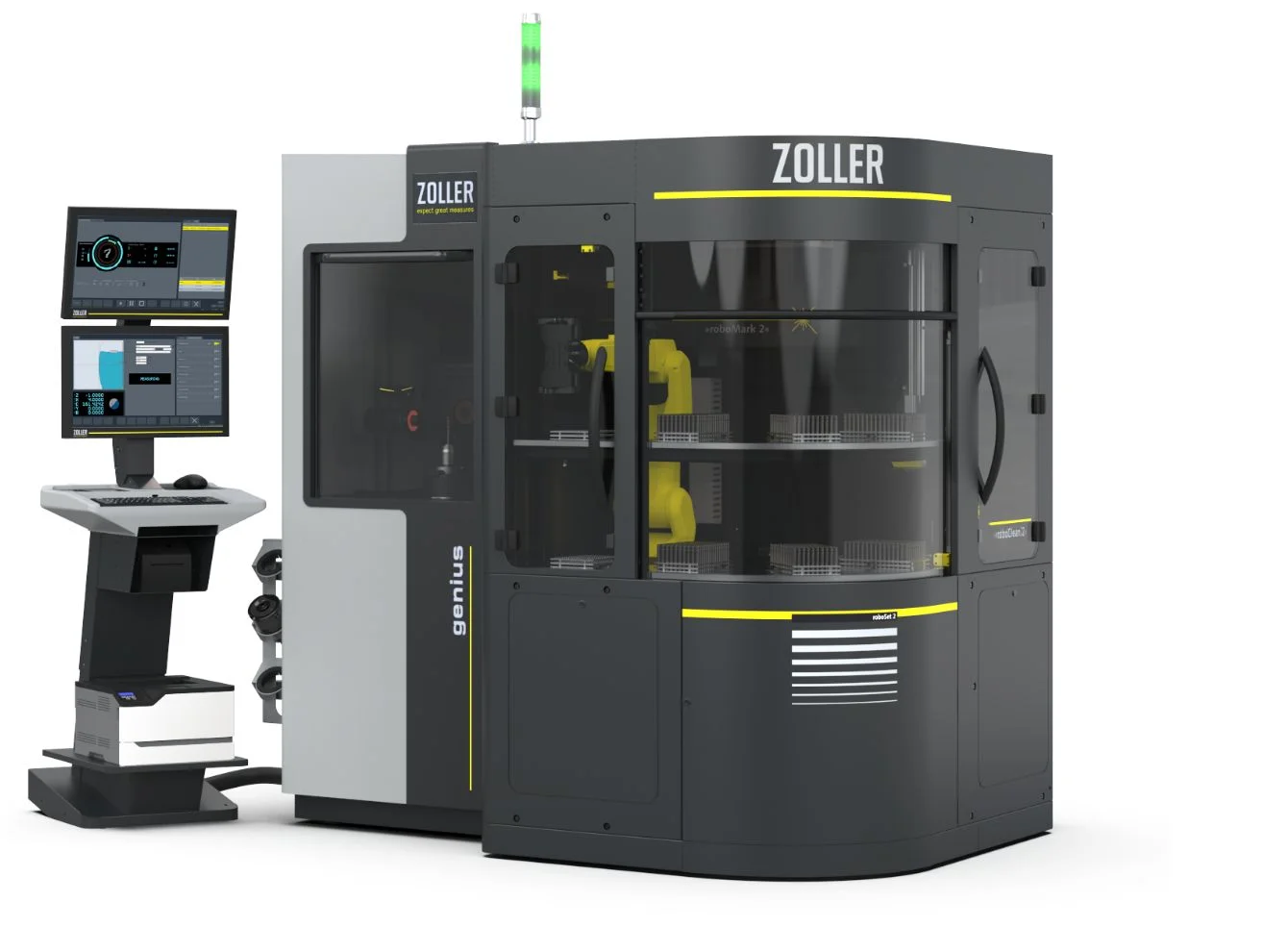

»roboSet 2«
»roboSet 2«
Loading unit with robot, marking laser, and cleaning bath. Capacity for several thousand tools.
Access Window
Access Window
Large access window that slides simply upward to the two pallet levels. High tool capacity thanks to eight pallet positions.
Interior
Interior
Convenient access to the ultrasonic cleaning area and the interior of the loading unit.
»cockpit«
»cockpit«
»cockpit«
You can use the »roboSet 2« conveniently and simply using the »pilot« image processing technology.
Measuring Machine
Measuring Machine
Measuring Machine
Can be combined with all measuring machines in the »genius« series from ZOLLER.
»roboSet 2«
»roboSet 2«
»roboSet 2«
Loading unit with robot, marking laser, and cleaning bath. Capacity for several thousand tools.
Access Window
Access Window
Access Window
Large access window that slides simply upward to the two pallet levels. High tool capacity thanks to eight pallet positions.
Interior
Interior
Interior
Convenient access to the ultrasonic cleaning area and the interior of the loading unit.

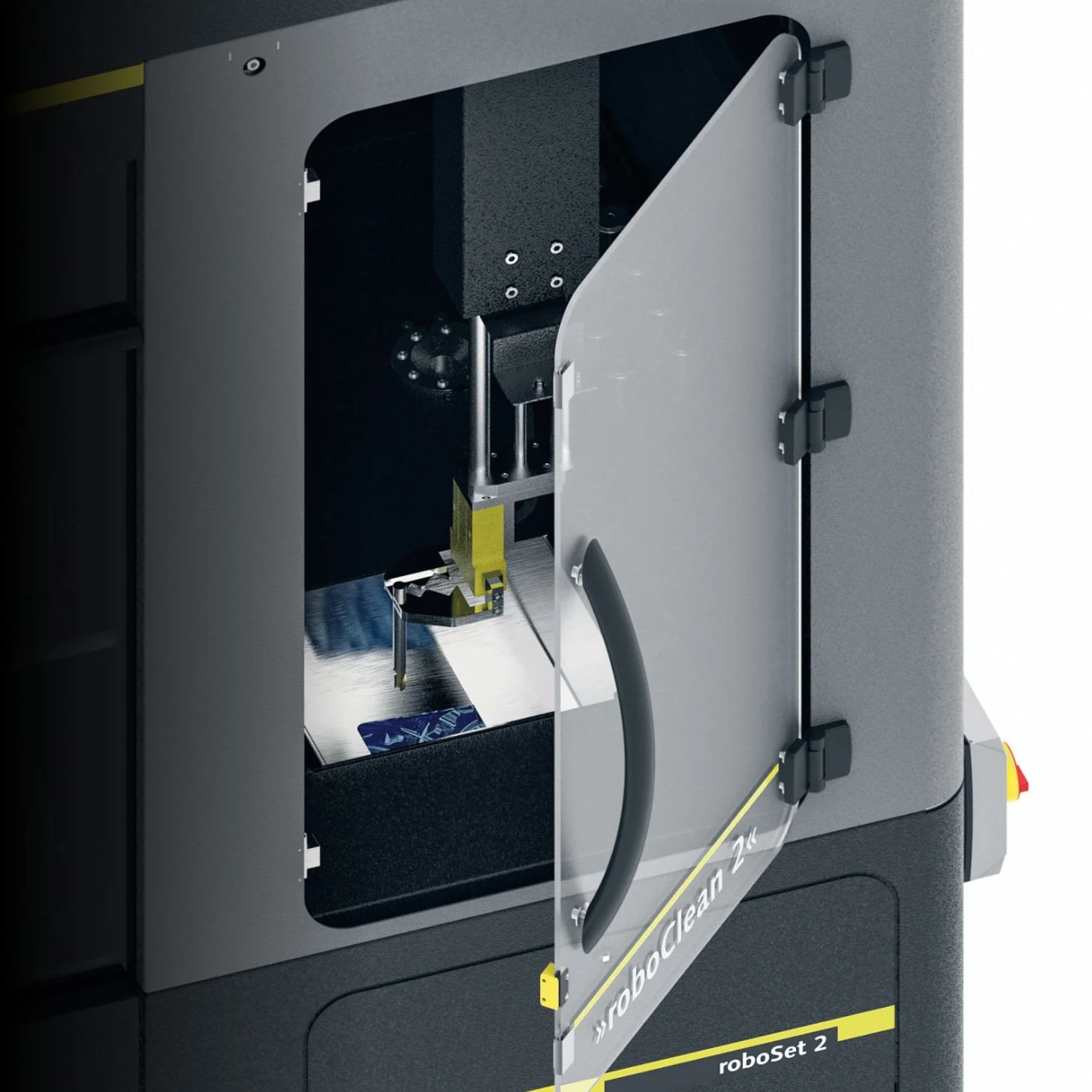

Freshly cleaned and ready for inspection
Using ultrasonic and dry cleaning, »roboSet 2« removes microparticles, dust, and organic coolants from every tool. No matter which ZOLLER measuring machine you pair »roboSet 2« with, the tools will be spotless and ready for inspection. These are the perfect conditions for fully leveraging ZOLLER’s precise measuring capabilities.
Mechanically decoupled
In »roboSet 2«, the robotics action is in full swing. Next door, at »genius«, however, it’s almost completely quiet. To ensure that these dissimilar neighbors work together perfectly, »roboSet 2« was designed as a separate unit that is mechanically decoupled from the measuring machine. Vibrations and shocks do not enter the µm-precise measuring technology.
Case Study: GKN Aerospace
Our customer, GKN Aerospace, has been relying on automated inspection with the »roboSet 2« for two years. In the video, manufacturing expert Jeremy St. Pierre shares his experiences with this ZOLLER solution.
Ready for the New Era
Automation is more than just a step. It’s a giant leap toward new priorities. Decide how you want to use your skilled workforce in the future. »roboSet 2« offers efficient automation for tool manufacturers and grinding shops.
