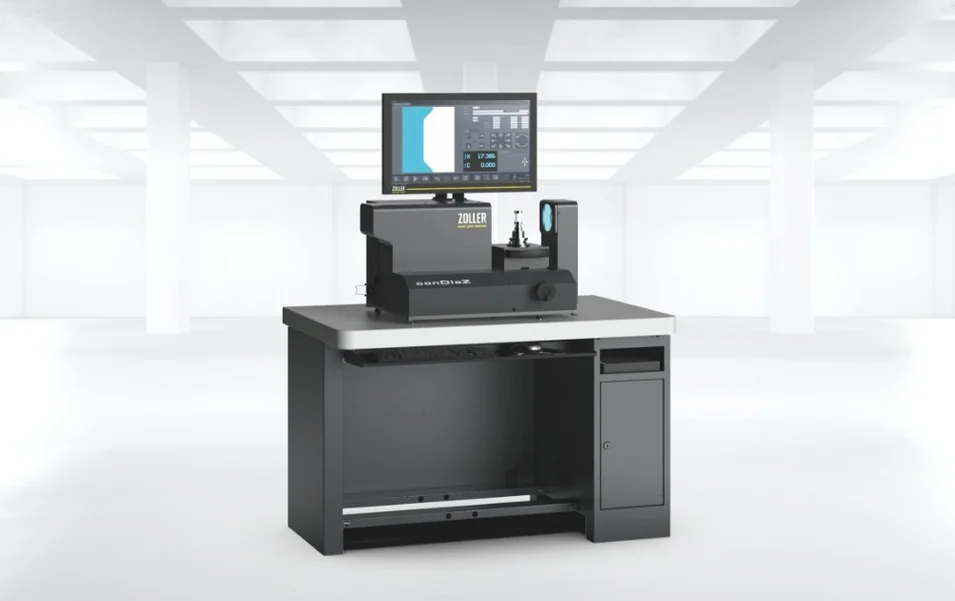

Seated workstation
»conDiaZ« – optionally available as a seated workstation
Inspection & Measuring · CNC Stone Machining

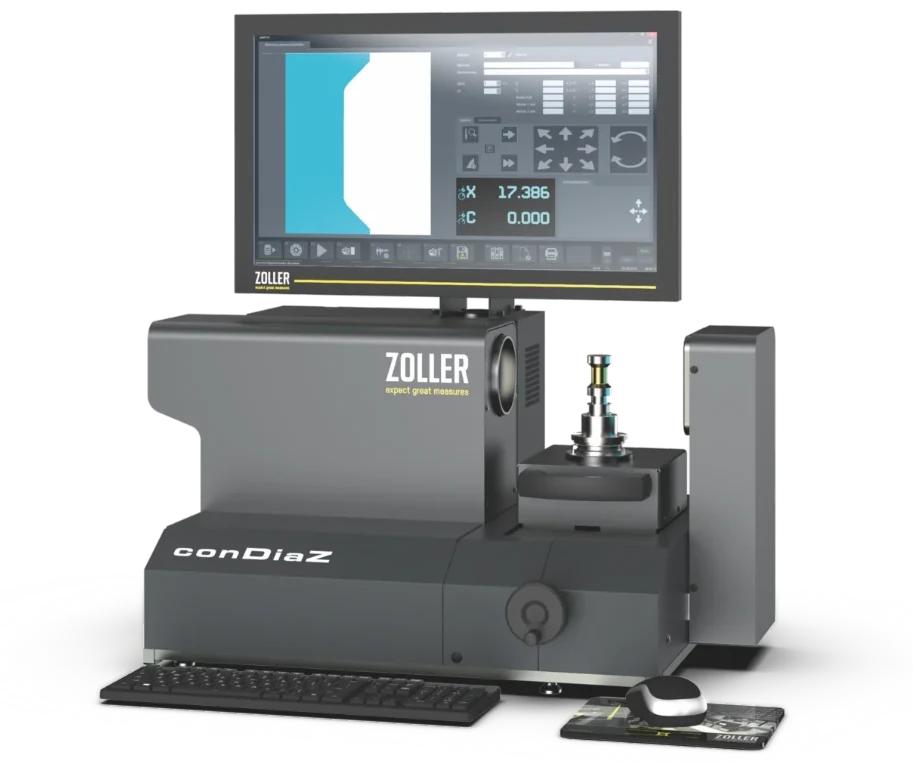

»conDiaZ«
Capture the contours of stone-cutting tools in a matter of seconds.
The ZOLLER »conDiaZ« was specially designed for measuring and inspecting diamond-coated stoneworking tools and enables precise contour scanning as well as the determination of correction values for the machine.
Its fast, intuitive operation delivers efficient, user-independent measurement results with high process reliability and reproducibility. Thanks to compact axes, telecentric wide-field optics, perfect software, and a workshop-friendly design, »conDiaZ« fits perfectly into existing workflows and enables high-precision analysis directly on the tool—fully integrated into the measuring process.

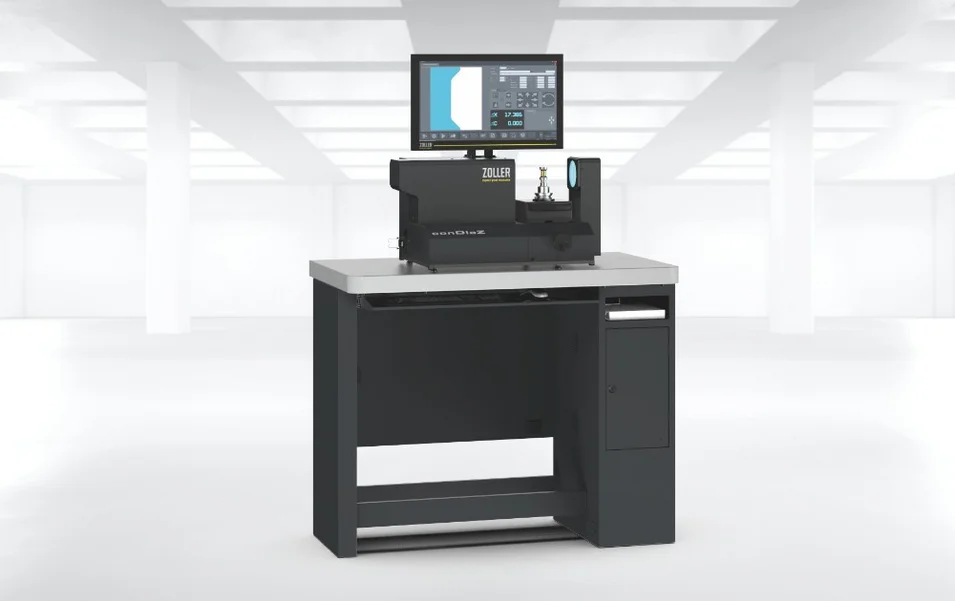

Standing workstation
»conDiaZ« – optionally available as a standing workstation

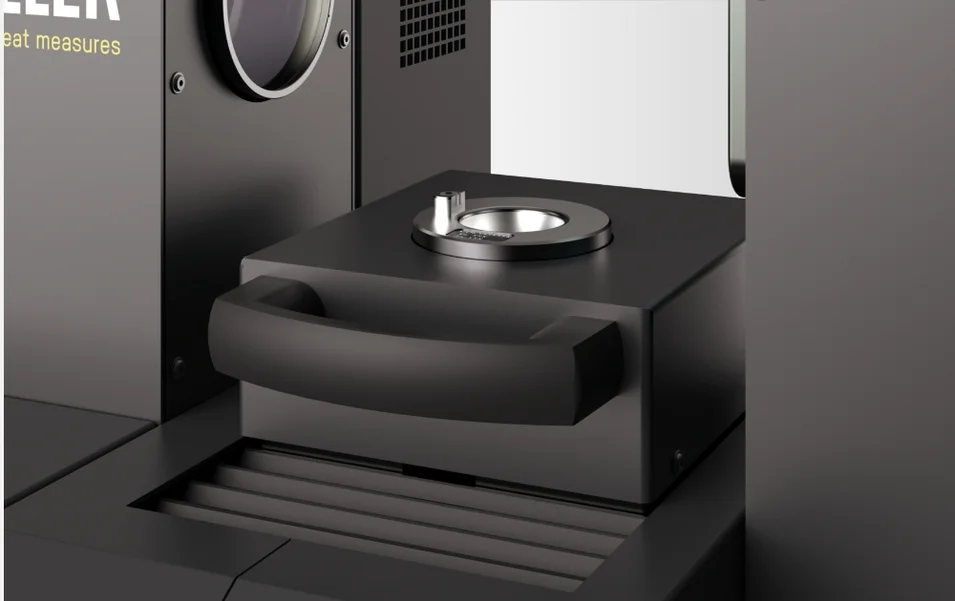

Rotary Encoder
The SK 40 high-precision spindle with an integrated rotary encoder ensures exact, repeatable angular positioning.

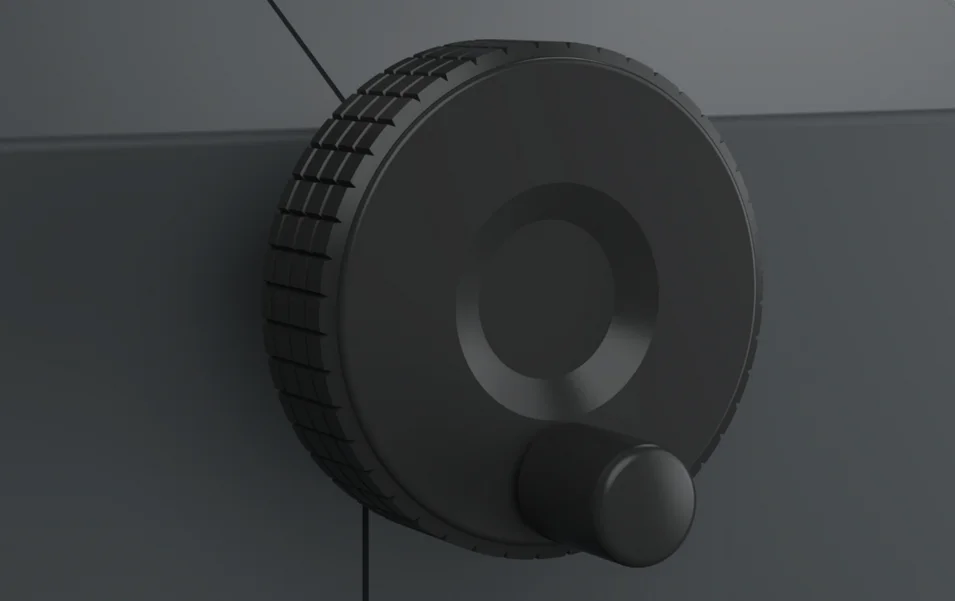

Quick Adjustment
The manual quick-adjustment feature allows for lightning-fast and convenient positioning of the tool.
Precise contour measurement in seconds
Reproducible results—regardless of the operator
Compact inspection station for the shop floor
Direct measured values for the machine
