Inspection & Measuring
Proof of quality starts with the details. With ZOLLER, you can perform inspection on everything that’s critical to quality.

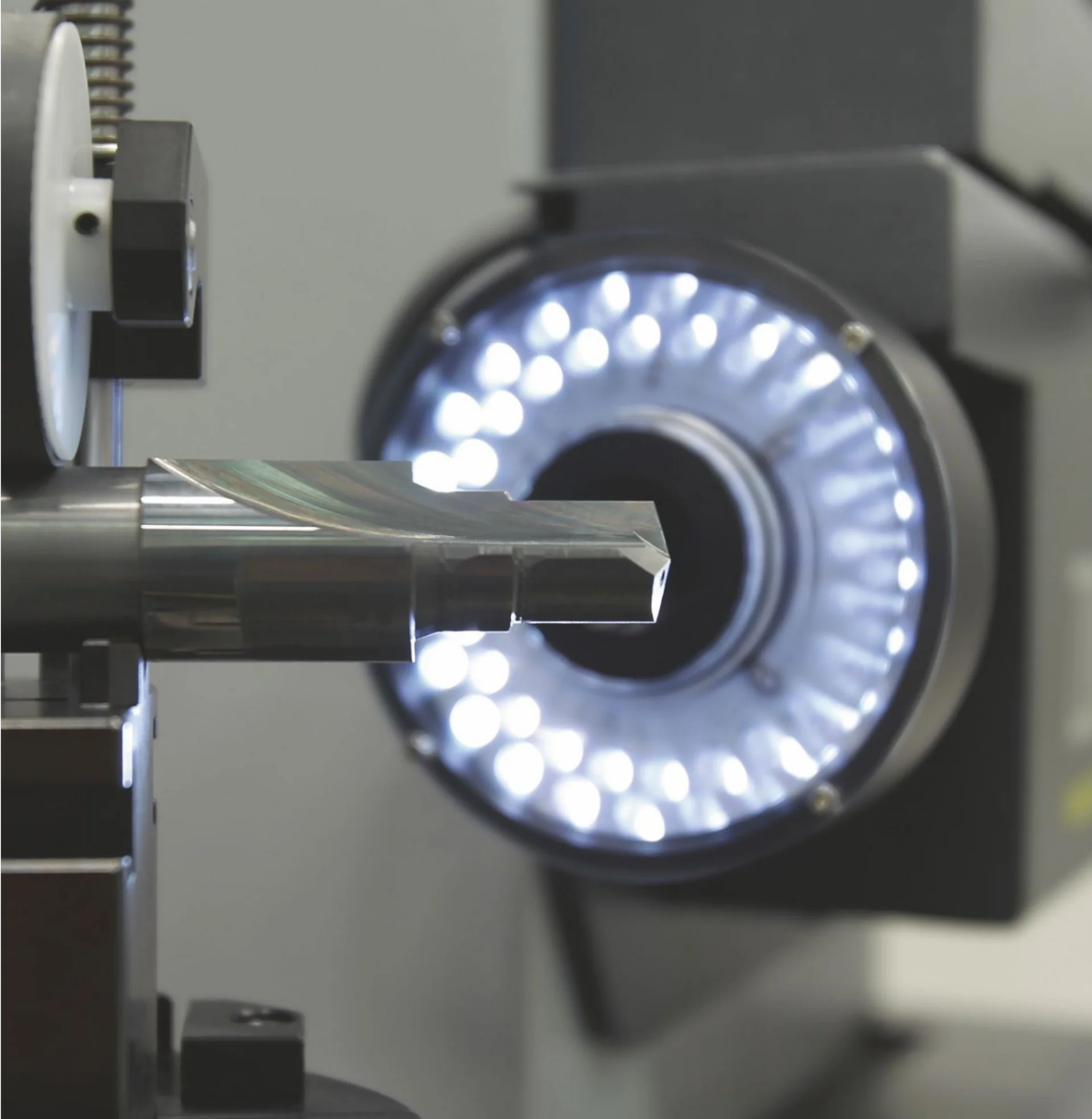

Inspect your tools and grinding wheels. This allows you to establish an irrefutable chain of evidence for process and product quality. Machining companies use ZOLLER to measure new tools at incoming goods inspection and reliably detect wear patterns during production. Grinding shops capture parameters for the regrinding process. As tool manufacturers, you verify the quality of initial samples and tool batches. The precision is outstanding: up to 0.1 µm.
ZOLLER offers the right inspection equipment for every requirement: manual devices for checks in a matter of seconds, automated inspection systems with incident and transmitted light, inspection units for surface profile and roughness, and fully automatic universal measuring machines for complex tasks. Create digital twins or ensure your tool quality in 2D and 3D with more than 100 parameters.
Tool inspections with ZOLLER provide precise data to answer quality questions.

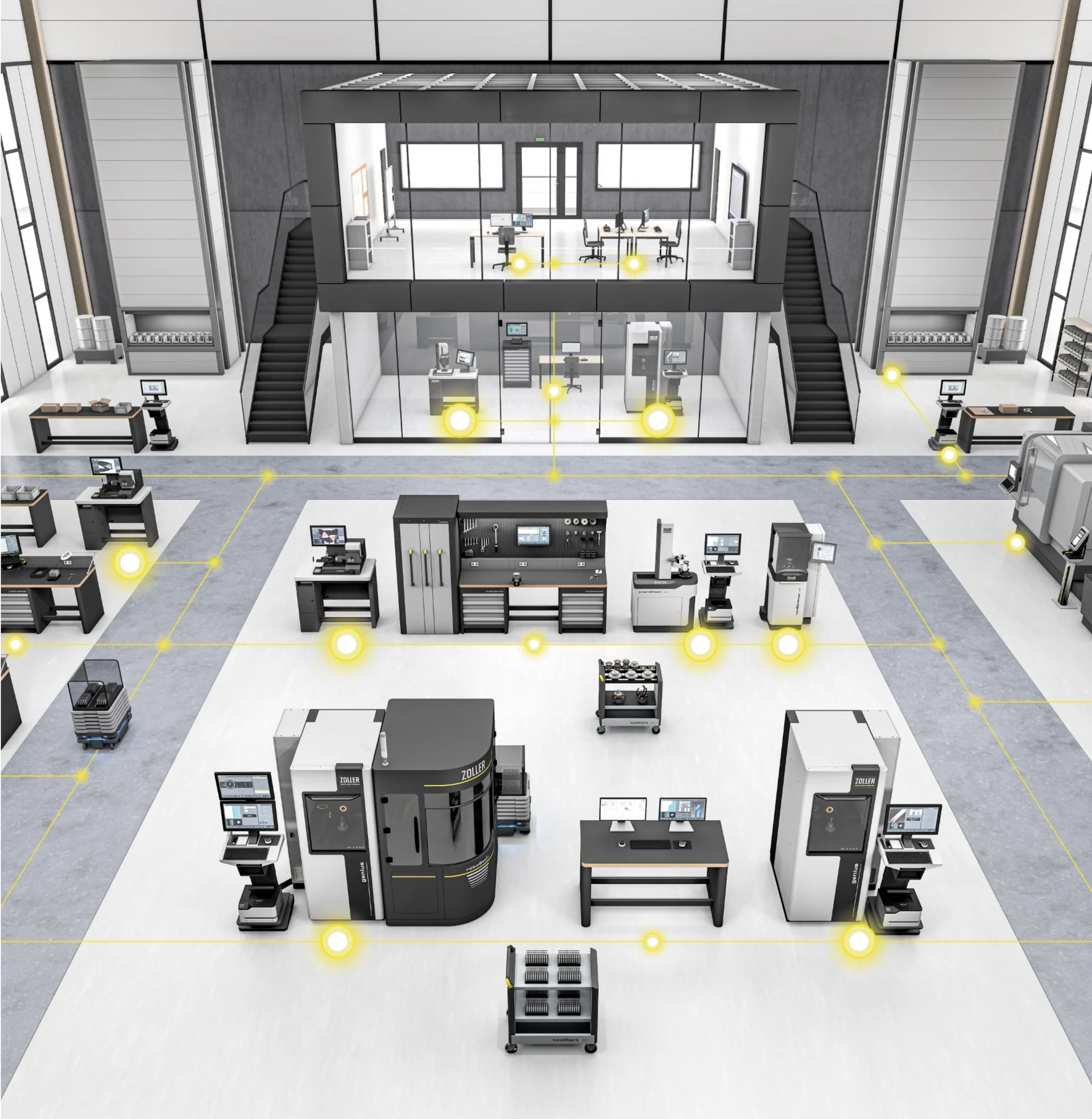

Inspection and Interaction
All ZOLLER devices for measuring and inspecting tools come equipped with the »pilot 4.0« measurement software and the z.One database.
All setup, measurement, and inspection data for tools and grinding wheels can be stored optionally on the device itself or centrally. From there, they can be automatically transferred to your CNC-controlled grinding or machining centers using other ZOLLER technologies.
With ZOLLER, you’re also well-equipped for data exchange with all common CAD/CAM systems.
Get Clarity in Seconds

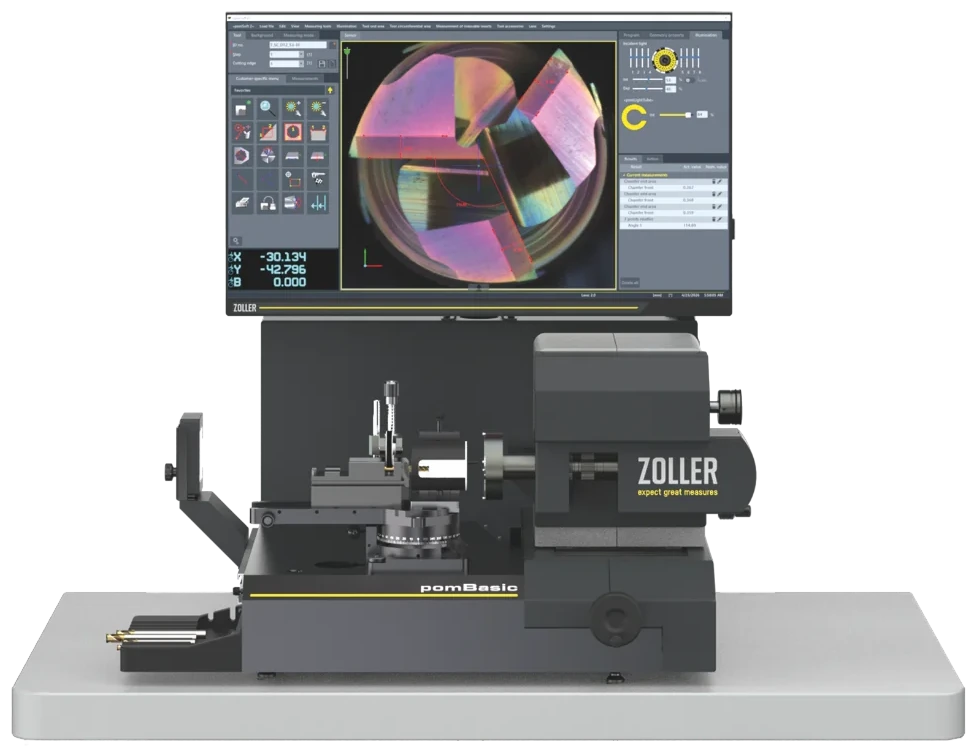

Check whether the data for the CNC grinding machine is correct right in the middle of the process. With the pom series devices, you can manually measure 70 parameters in a matter of seconds right next to the machine. You’ll know immediately whether your processes are set up for success.
Measure with an accuracy of 0.1 µm

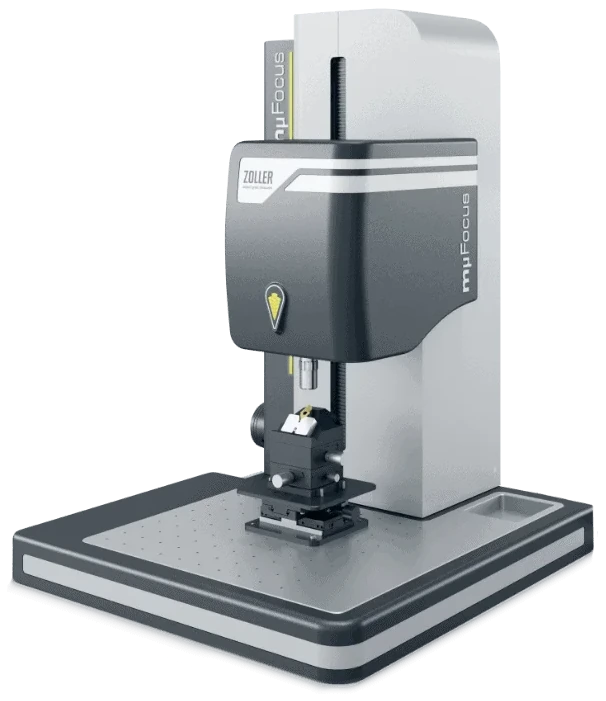

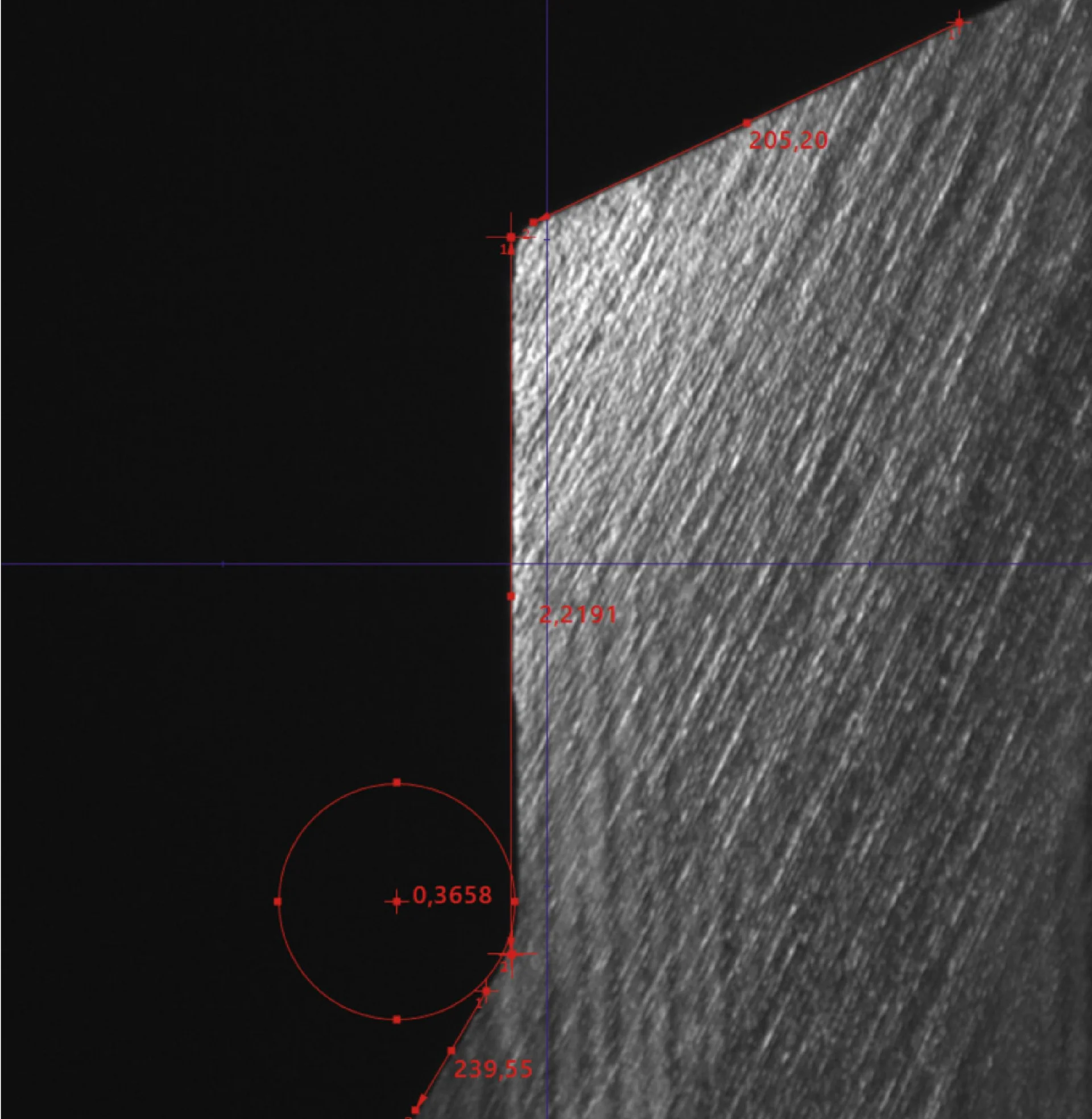

With ZOLLER, you can perform analyses with microscopic exactness and use state-of-the-art imaging. The sensors in the »mµFocus« inspection unit resolve structures related to cutting edge preparation and surface roughness with an accuracy of up to 0.1 µm. Image processing with »pilot 4.0« generates exact two- and three-dimensional visualizations from this data.
Simple and Reproducible Inspection
Tool inspection with ZOLLER is simple because we’ve tailored our hardware and software to this purpose. With the optional CNC control for »smileCheck« and »smartCheck« or the fully automated »genius« series, tool inspections can be performed successfully even without extensive training. Additionally, the »elephant« software module provides additional support with automatic tool identification and intuitive user guidance.
Inspection and Measuring Machines

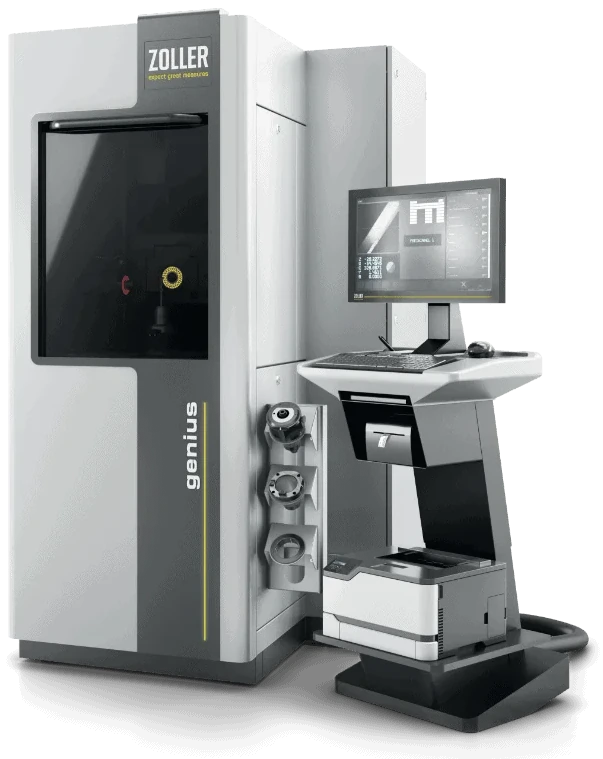

»genius«
It measures over 100 parameters with ultra-high precision and has proven itself more than 1,000 times over worldwide

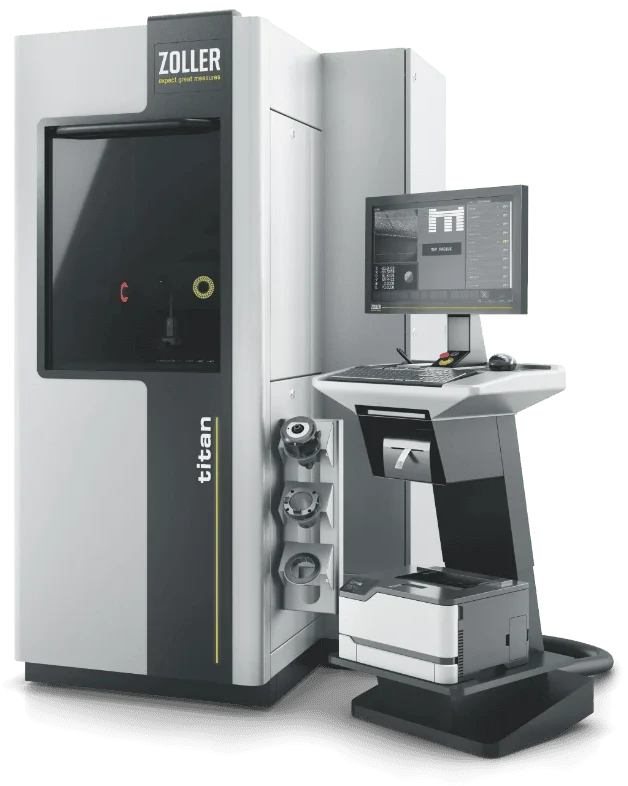

»titan«
For experts who want to know everything—including cutting edge preparation

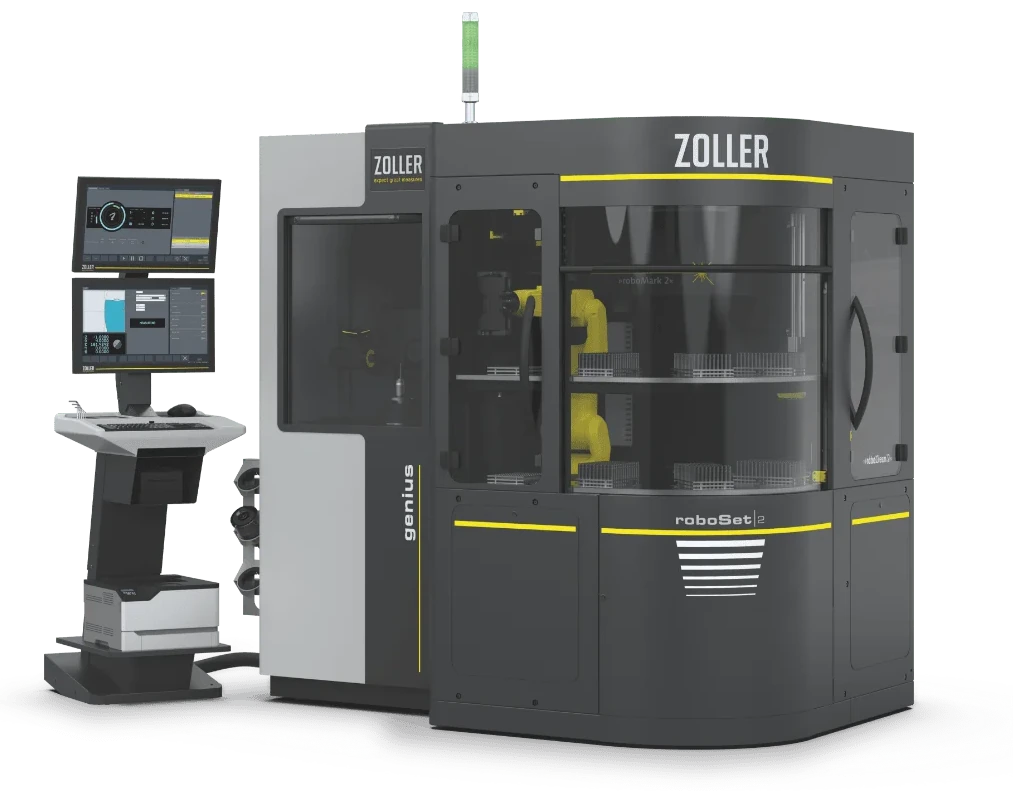

»roboSet 2«
Tool Handling for »genius«, »3dCheck«, »threadCheck«, »titan«, and »edgeControl«

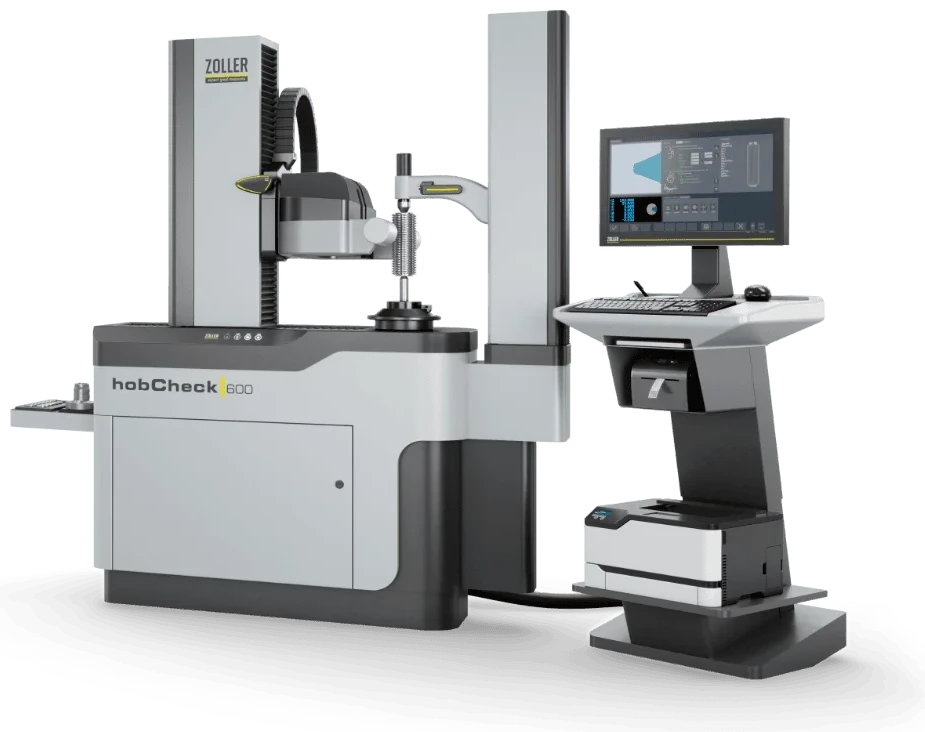

»hobCheck«
Over 200 measured values from transmitted-light and incident-light cameras as well as a measuring sensor

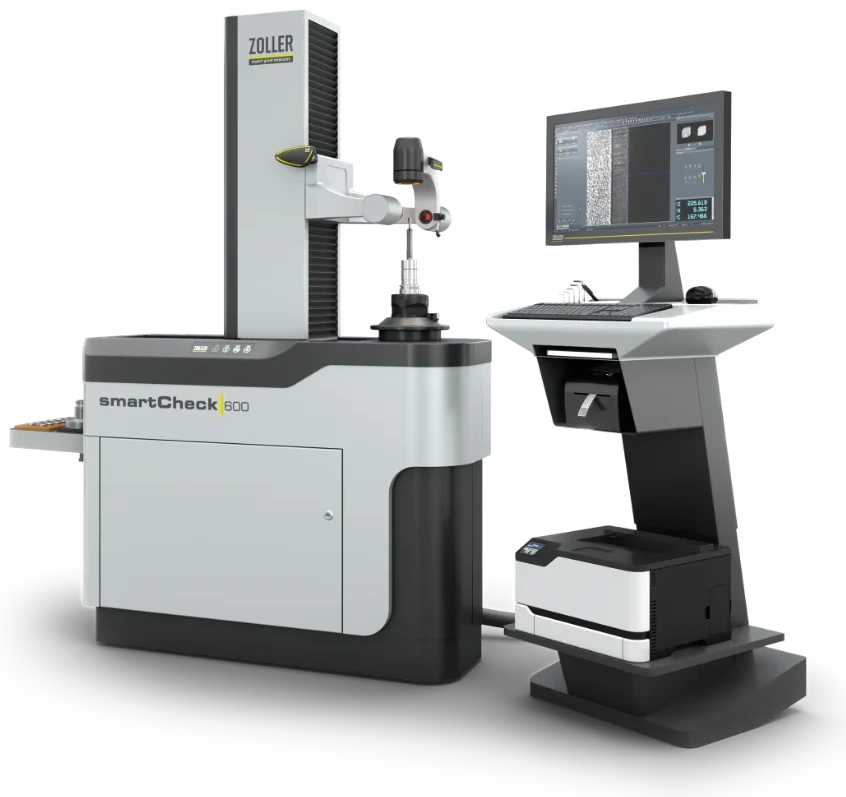

»smartCheck«
Presetting and measuring machine with additional incident light and advanced image analysis

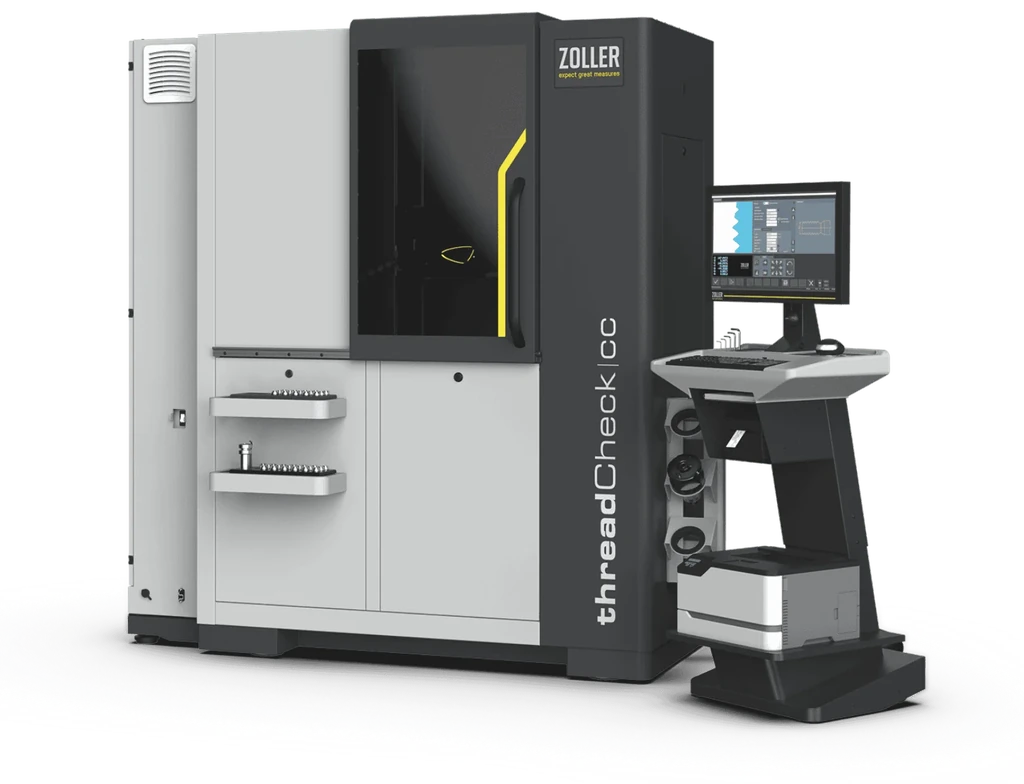

»threadCheck ❘ cc«
High-end system with six CNC axes and a swivelling multisensor optic carrier
