»toolBalancer«
The balancing system featuring state-of-the-art technology
and an ergonomic design

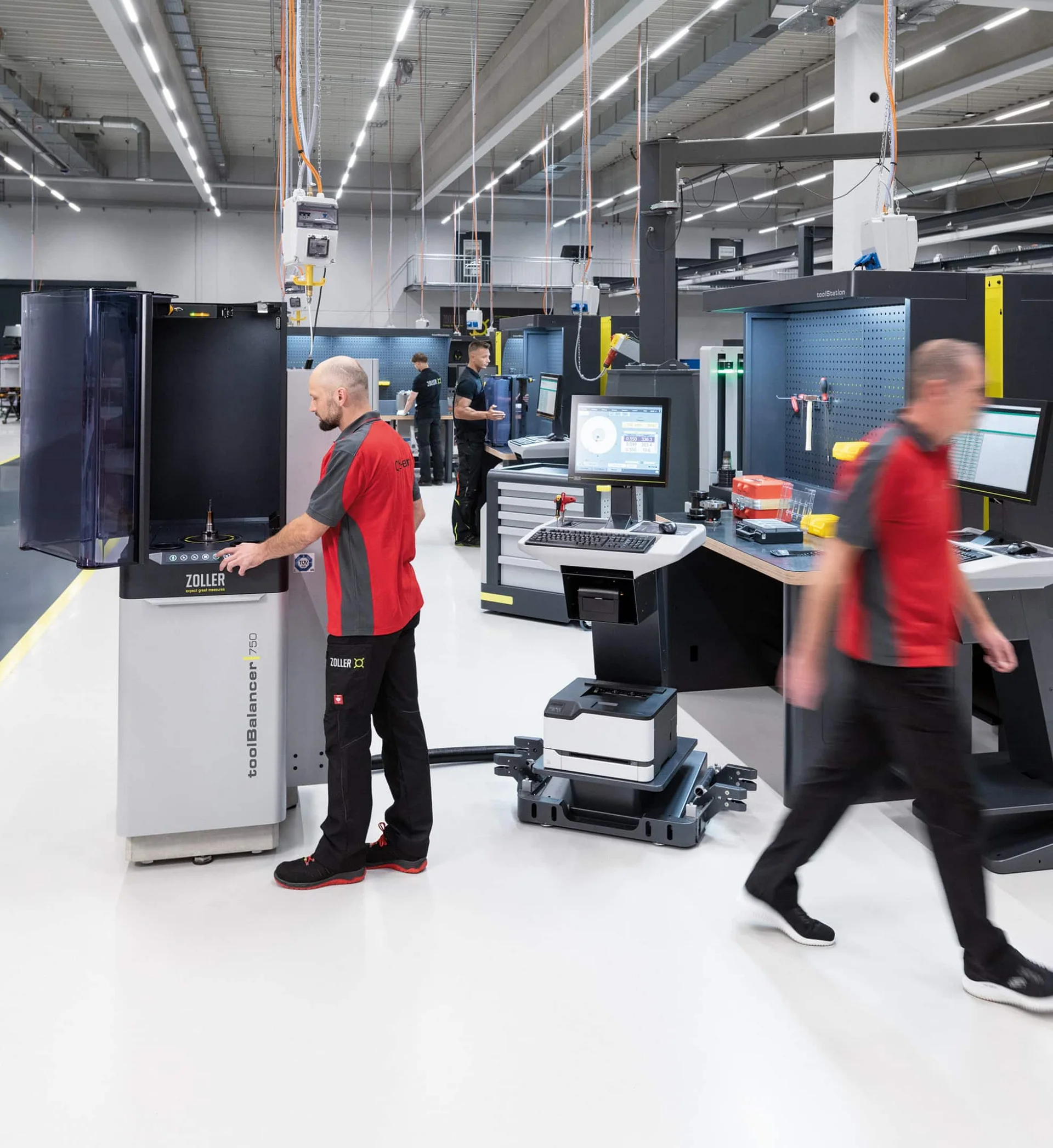

We stand for smart progress
With optimally and precisely balanced tools, you can achieve longer tool life, extended spindle runtime, and better surface finish on your components. With »toolBalancer«, you can bring not only your tools but your entire manufacturing process into perfect balance between sustainability, efficiency, and progress.
»toolBalancer 550« at full size – on your shop floor

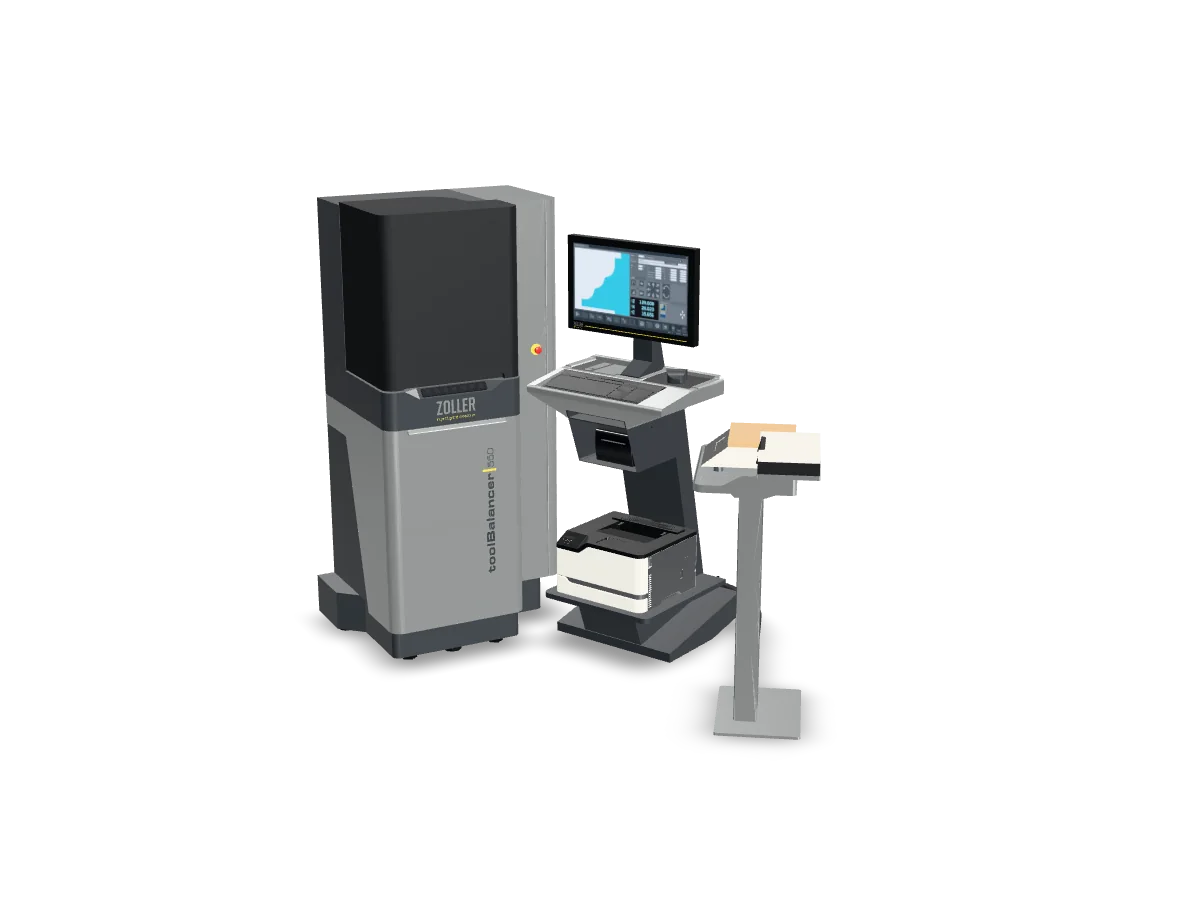

With augmented reality, the unit appears true to scale exactly where it will work: walk around it and check space and access before you order. On a computer, rotate and zoom the CAD model right here.
- Width
- 1.54 m5′ 1″
- Depth
- 2.02 m6′ 7″
- Height
- 1.73 m5′ 8″
- Footprint
- 3.11 m²33 sq ft
Overall dimensions of the CAD model in this configuration – may vary depending on equipment.
Scan the QR code and place the unit at full size in your room – on iPhone, iPad or an Android device with ARCore.
TÜV and UL/CSA inspected
500 kg solid base
Best balancing results: < 0.4 gmm
The High-Performance Synergy
»twinPanel« Safety Cover
»twinPanel« Safety Hood
Complies with DIN ISO 21940-23 Class C60 for maximum safety.
The internal “sacrificial pane” absorbs contaminants such as residues of cooling lubricants and damage caused by component detachment. This takes into account the very important—and often overlooked—process of protective pane aging resulting from daily use. By allowing for quick and cost-effective replacement of the sacrificial pane, the ZOLLER »twinPanel« guarantees the long-term safety of your operators.
High-Precision Spindle
High-Precision Spindle
Accommodates virtually any tool holder with the appropriate balance adapter. Depending on the weight of the tool, the spindle rotates it at an adjustable speed ranging from 400 to a maximum of 1,200 revolutions per minute and measures the unbalance with an accuracy of < 0.4 gmm.
In designing the high-precision spindle, ZOLLER placed especially great focus on a safe and certified adapter-changing process. A special design feature avoids accidents and damage caused by balance adapters that are not securely fastened in the spindle.
Adapter Compartment
Adapter compartment with a swivelling front flap
Three storage places for ergonomic, back-friendly, and quick adapter changes without having to bend down.
Fork Cutout
Fork Slot
For flexible installation and simple transport of the »toolBalancer« in your production facility using a pallet truck.
ZOLLER Control Software
Simple ZOLLER Operating Software
The structured, graphic representation intuitively guides the operator through the measurement and balancing process.
The machine is set up by providing the tool geometry data as input. All data is stored in the database and remains available for later use.
»cockpit« Control Unit
Separate »cockpit« Control Unit
It is adjustable in height and position, and the monitor’s inclination can be adjusted; it can be simply shifted to the required position, making the use of software as convenient as possible.
In addition to touch operation, the »cockpit« offers the option to input data via mouse and keyboard, as well as storage compartments for label and laser printers, handheld scanners, and tools such as Allen keys.
»twinPanel« Safety Cover
»twinPanel« Safety Cover
»twinPanel« Safety Hood
Complies with DIN ISO 21940-23 Class C60 for maximum safety.
The internal “sacrificial pane” absorbs contaminants such as residues of cooling lubricants and damage caused by component detachment. This takes into account the very important—and often overlooked—process of protective pane aging resulting from daily use. By allowing for quick and cost-effective replacement of the sacrificial pane, the ZOLLER »twinPanel« guarantees the long-term safety of your operators.
High-Precision Spindle
High-Precision Spindle
High-Precision Spindle
Accommodates virtually any tool holder with the appropriate balance adapter. Depending on the weight of the tool, the spindle rotates it at an adjustable speed ranging from 400 to a maximum of 1,200 revolutions per minute and measures the unbalance with an accuracy of < 0.4 gmm.
In designing the high-precision spindle, ZOLLER placed especially great focus on a safe and certified adapter-changing process. A special design feature avoids accidents and damage caused by balance adapters that are not securely fastened in the spindle.
Adapter Compartment
Adapter Compartment
Adapter compartment with a swivelling front flap
Three storage places for ergonomic, back-friendly, and quick adapter changes without having to bend down.
Fork Cutout
Fork Cutout
Fork Slot
For flexible installation and simple transport of the »toolBalancer« in your production facility using a pallet truck.
ZOLLER Control Software
ZOLLER Control Software
Simple ZOLLER Operating Software
The structured, graphic representation intuitively guides the operator through the measurement and balancing process.
The machine is set up by providing the tool geometry data as input. All data is stored in the database and remains available for later use.
»cockpit« Control Unit
»cockpit« Control Unit
Separate »cockpit« Control Unit
It is adjustable in height and position, and the monitor’s inclination can be adjusted; it can be simply shifted to the required position, making the use of software as convenient as possible.
In addition to touch operation, the »cockpit« offers the option to input data via mouse and keyboard, as well as storage compartments for label and laser printers, handheld scanners, and tools such as Allen keys.
Reach Your Goal Safely and Quickly
»toolBalancer« makes tool balancing especially simple: thanks to the ergonomically designed »twinPanel« safety hood, a convenient membrane keypad, a compartment for balance adapters, and storage shelves in the spacious work area.
The ZOLLER operating software, with its structured graphic representation, intuitively guides the operator through the measurement and balancing process. With the corresponding software options, all balancing applications on 1 to 2 balancing planes are available, such as fixed-point balancing with balancing screws, the use of balancing rings, or balancing through material removal such as drilling or milling.

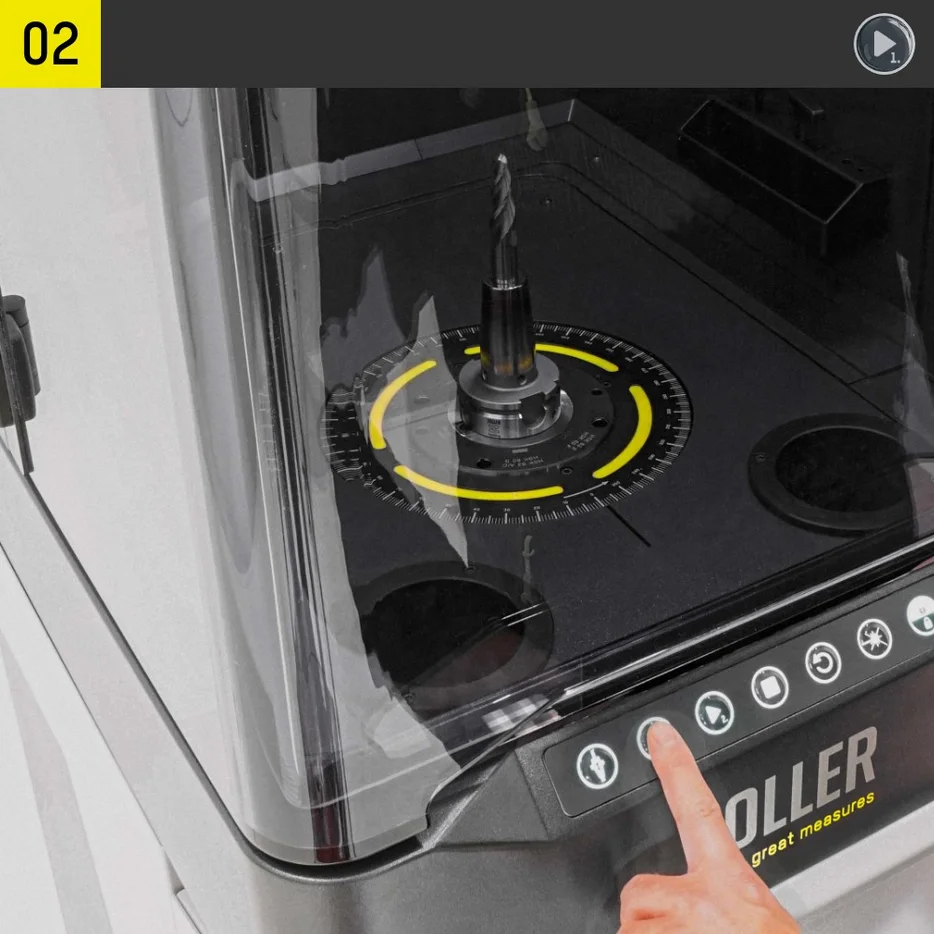

Open the hood, release the clamp,
rotate the tool 180°, and clamp it in place
Open the hood,

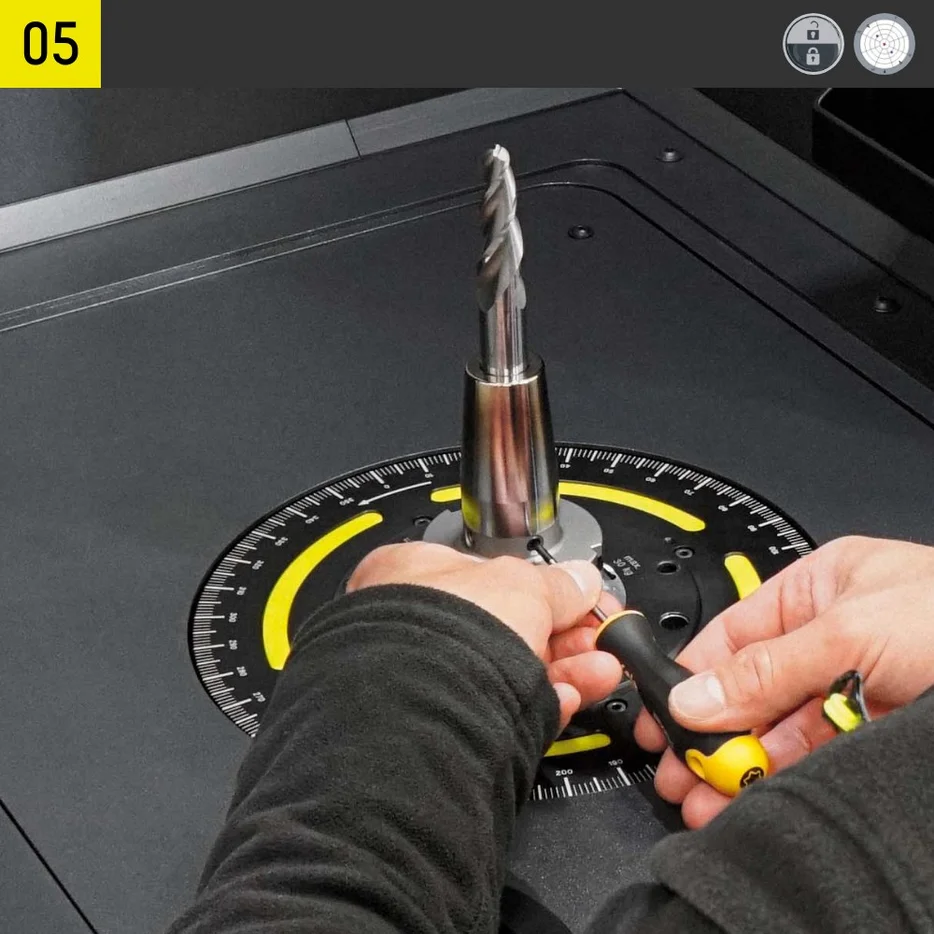

correct the unbalance (e.g., using balancing screws)
Open the hood,
insert the tool, and clamp it

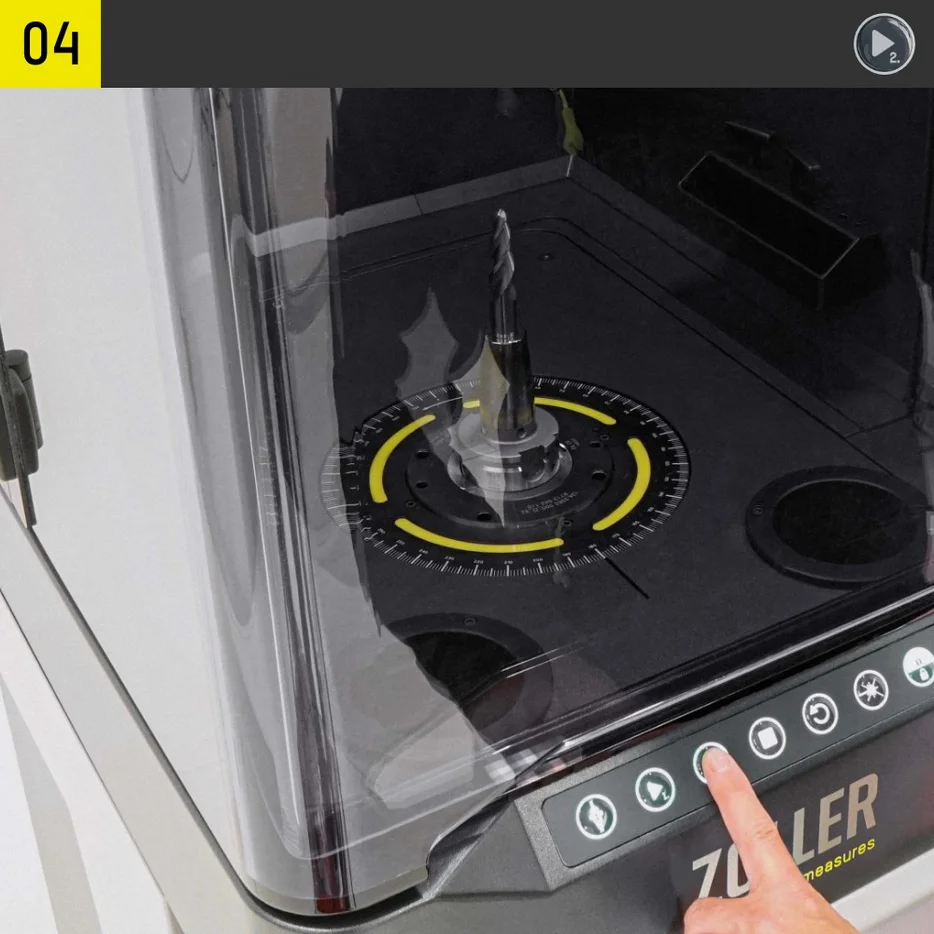

Close the hood and start Run 1
Close the hood and start Run 2
Close the hood and start the test run; test run measurement
Result
Our adapters: reliable and exact

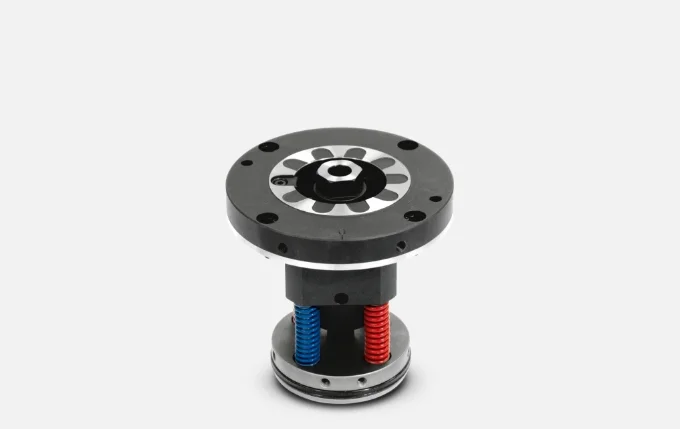

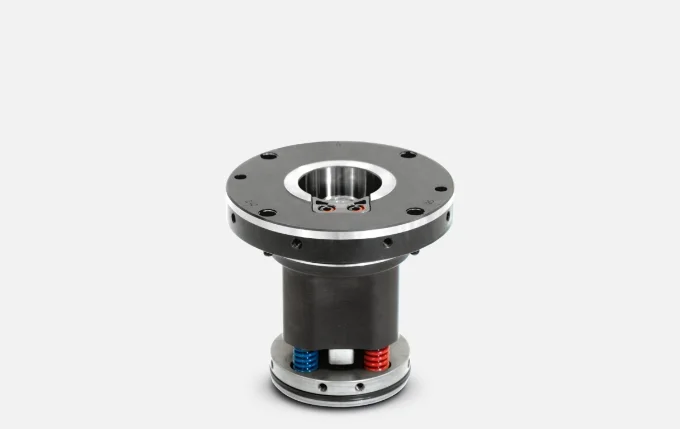

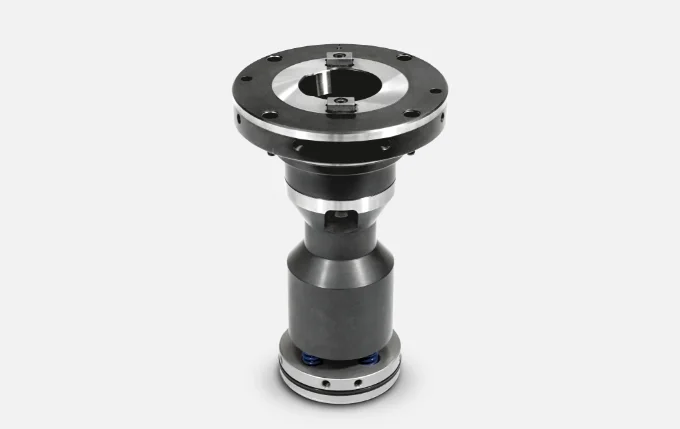

The selection of high-precision ZOLLER balance adapters, with their unique design, allows you to clamp SK, HSK, and polygonal shank taper mounts using power-operated clamping—and, above all, with unprecedented levels of safety and repeatability.
Additional adapters available upon request.
Off-Center for the Highest Precision

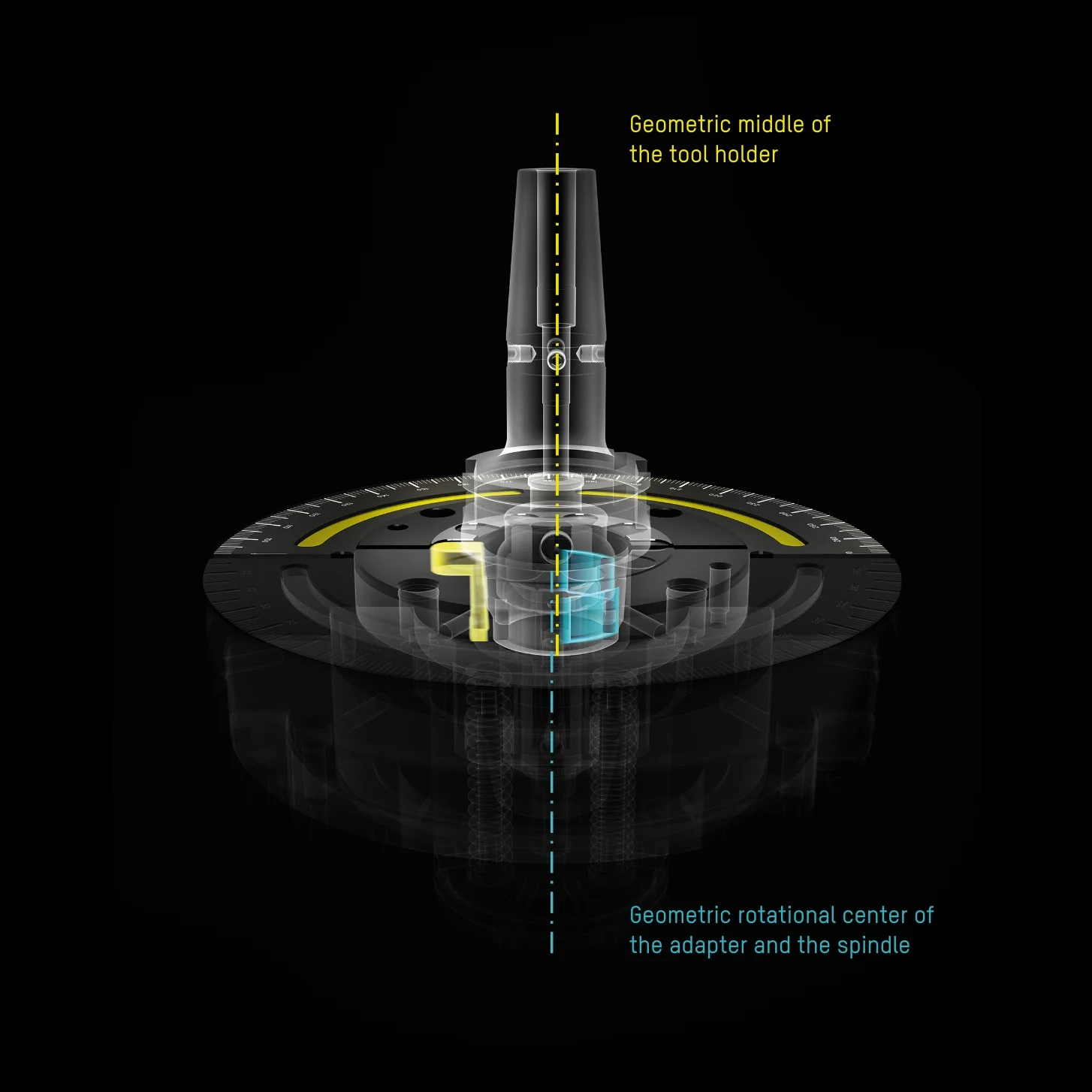

An unbalance in tools results from an asymmetrical design and the associated asymmetrical mass distribution. The ZOLLER »toolBalancer« counters unbalance with a deliberate center offset in the balance adapter during measurement and balancing of your tools.
The center offset balance adapter is constructed with a two-point contact system and a pressure piece. These features produce a strong, more easily measurable sensor signal and guarantee highly precise balancing results, especially for high-quality balancing and small unbalances.
Balancing Means Peace of Mind for Tools
If rotating tools are not running true, vibrations occur. Even at low speeds, these vibrations can lead to increased tool wear, reduced surface quality, and additional stress on the machine spindles. Therefore, have your tools balanced regularly on a ZOLLER balancing machine.
Learn more about the benefits of ZOLLER balancing solutions.

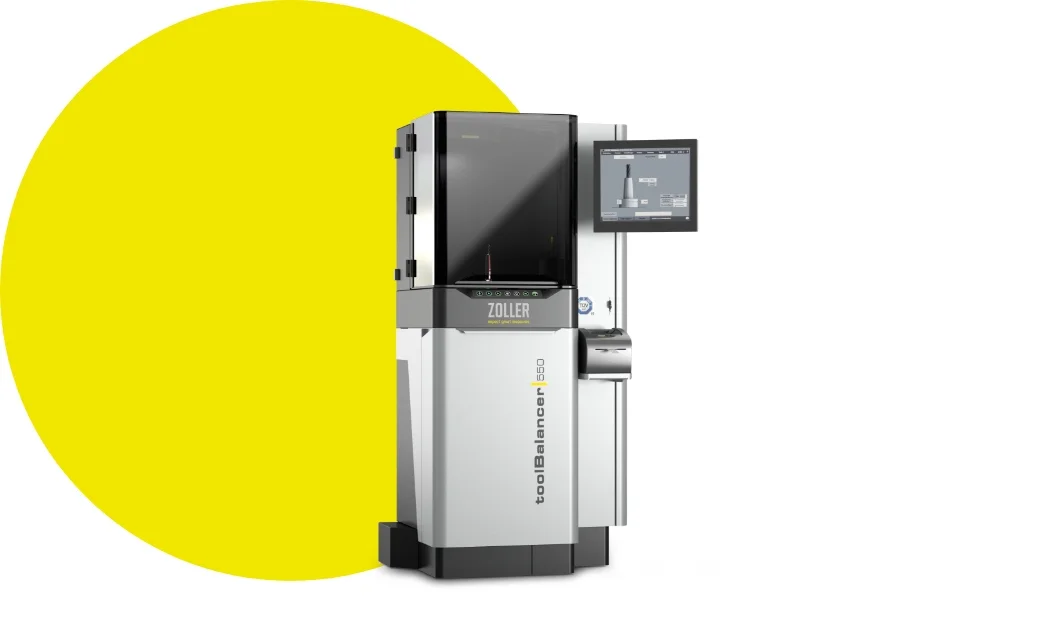

»toolBalancer 550«
Compare the options at a glance, or contact us! Maximum tool diameter: 480 mm, maximum tool length: 550 mm

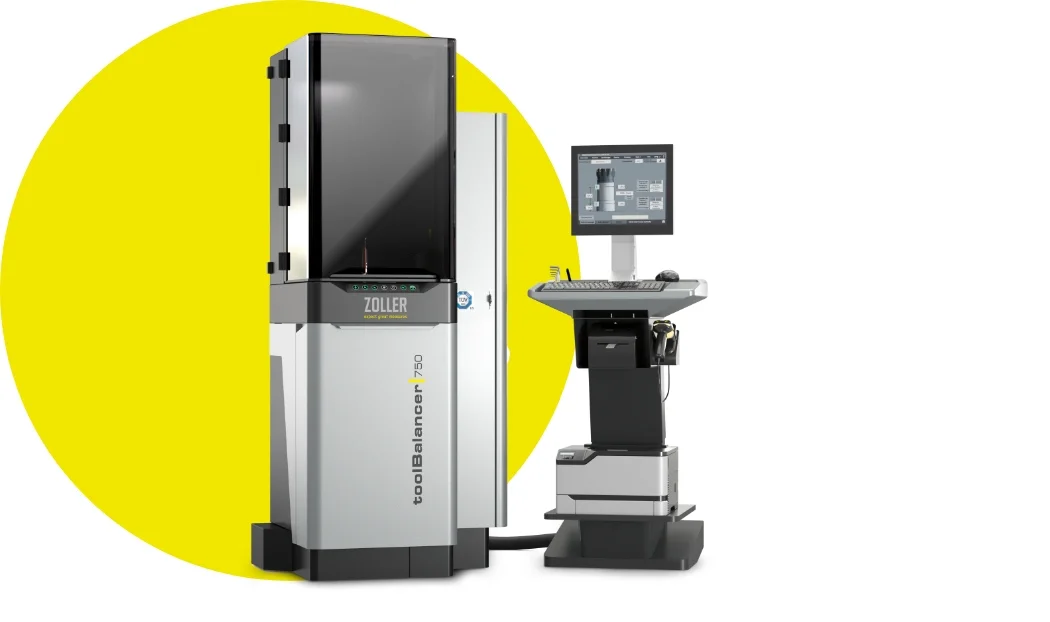

»toolBalancer 750«
Compare the options at a glance, or contact us! Maximum tool diameter: 480 mm, maximum tool length: 750 mm
