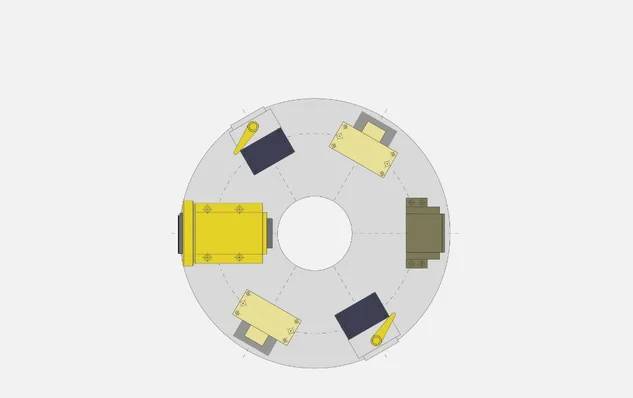

Configuration D 745 – 6-way pitch
For various tool holders. By rotating the turret, the user always has the correct tool holder within the measuring range.

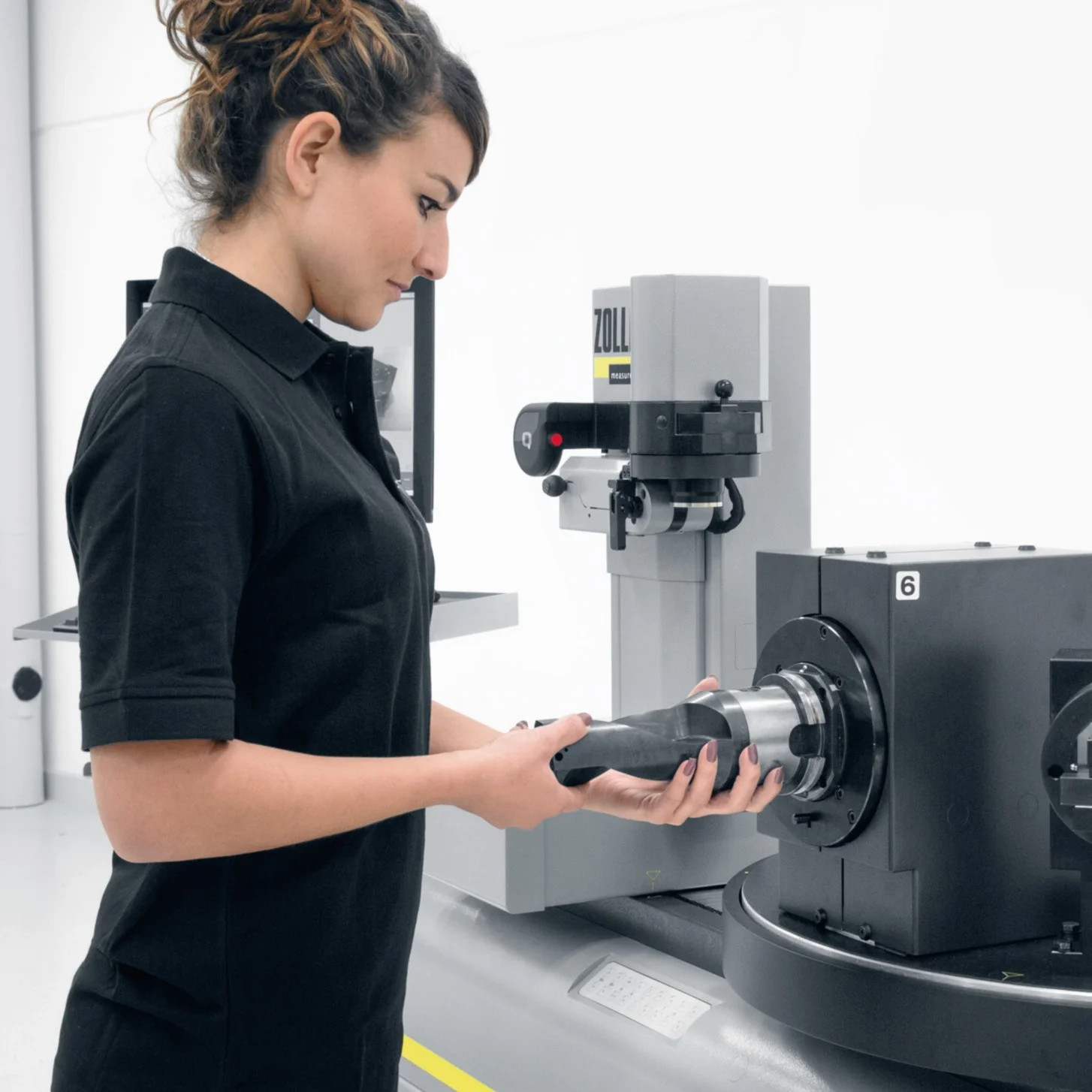

ZOLLER Turret Table
Well-designed and comfortable
Not all turret tables are created equal! ZOLLER turret tables are extremely sturdy, easy to handle, and operate with absolute precision.
ZOLLER turret tables do not flex, even when holding long, overhanging, or heavy tools. They rotate effortlessly and without stopping into the required position. The pneumatic and electrical components are automatically docked. Lifting and lowering are power-operated by keystrokes, and the lowering process is electronically monitored and displayed optically. The choice of tool holders for the ZOLLER turret tables lies entirely with your requirements. You can choose between 4-, 6-, 8-, and 12-position configurations and a wide variety of possible tool holders.

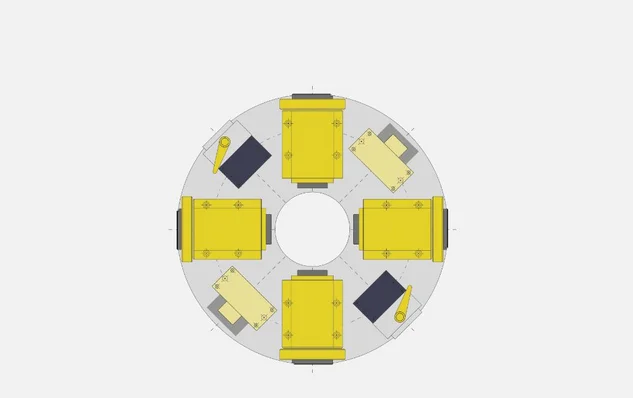

Configuration D 745 – 8-way pitch
For four HGH-UZ universal holders, two GA-PP basic mounts, and two GA basic mounts. The number of adapters and adapter tool posts that can be used is virtually unlimited.

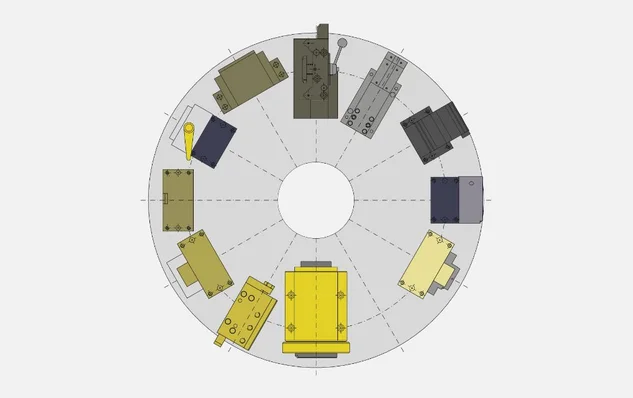

D 900 Insert – 12-fold pitch
HGH-UZ universal holder for rotating and
fixed tools – additional specialized tool holders for Göltenbodt, Schütte, Traub, Index, and others can be mounted.

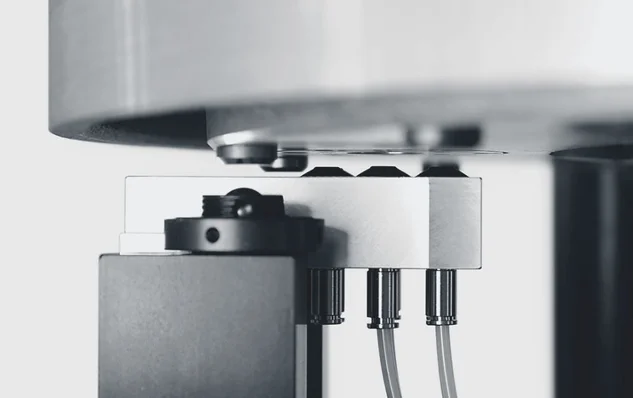

Docking and Support
The intelligent docking system for electrical and pneumatic elements allows for unlimited turret rotation.

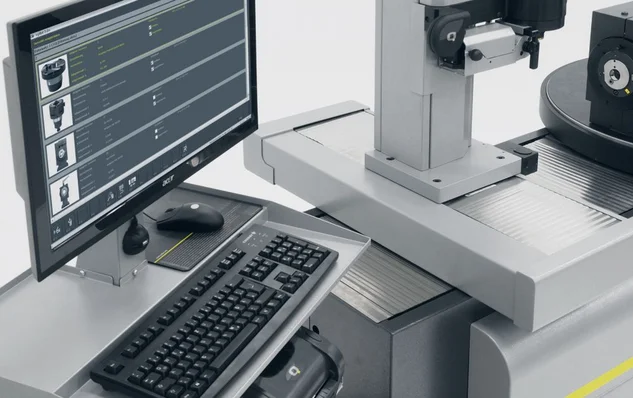

Automatic Zero Selection
On the »hyperion 500/700«, automatic zero-point selection is possible via the turret positioning (option).

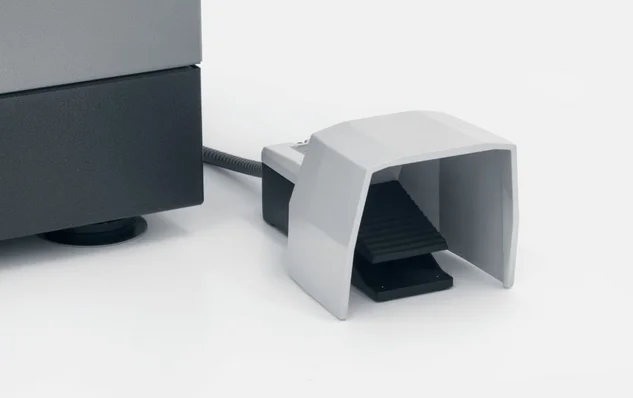

Foot switch
For clamping and releasing tools in the tool holder (optional).

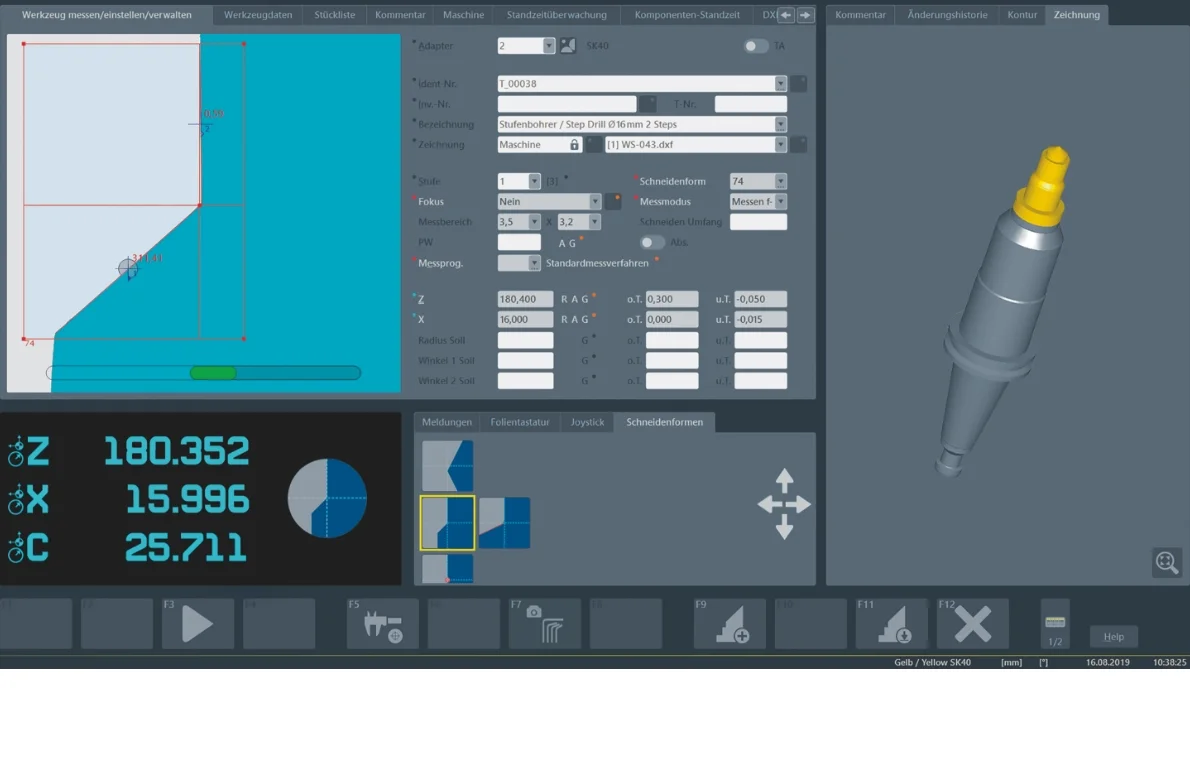

»pilot 4.0« – on course for success
»pilot 4.0« is the comprehensive software solution for all ZOLLER presetting and measuring machines. The intuitive graphic user guidance guides users quickly and reliably to precise measurement results. This makes »pilot 4.0« so simple to use that even complex measuring tasks can be completed immediately. At the same time, the software offers such a wide range of functionality that there is a solution for every requirement. It is no coincidence that »pilot 4.0« is considered the global benchmark for tool presetting, measurement, and inspection.
Tool-Specific Information
Adapter management
- Tool designation for unique identification
- Nominal values with tolerance specifications
Cutting-edge shapes
Automatic Detection of Cutting Edge Shapes
Function Buttons
With self-explanatory icons
Live camera view of the cutting edge
- Dynamic Crosshairs
- Angle display with selectable reference axis
Current Position Information
- Current position data for the axes
- Currently active cutting-edge shape
Tool-Specific Information
Tool-Specific Information
Adapter management
Adapter management
- Tool designation for unique identification
- Nominal values with tolerance specifications
Cutting-edge shapes
Cutting-edge shapes
Automatic Detection of Cutting Edge Shapes
Function Buttons
Function Buttons
With self-explanatory icons
Live camera view of the cutting edge
Live camera view of the cutting edge
- Dynamic Crosshairs
- Angle display with selectable reference axis
Current Position Information
Current Position Information
- Current position data for the axes
- Currently active cutting-edge shape
»hyperion«
With the »hyperion 300/500/700«, you’ll have a measuring machine suitable for virtually all tooling systems, giving you a decisive edge over the competition.
Presetting & Measuring: Your Advantages
Find out why presetting and measuring devices reduce time and costs. The effects are scalable and can result in high savings.
