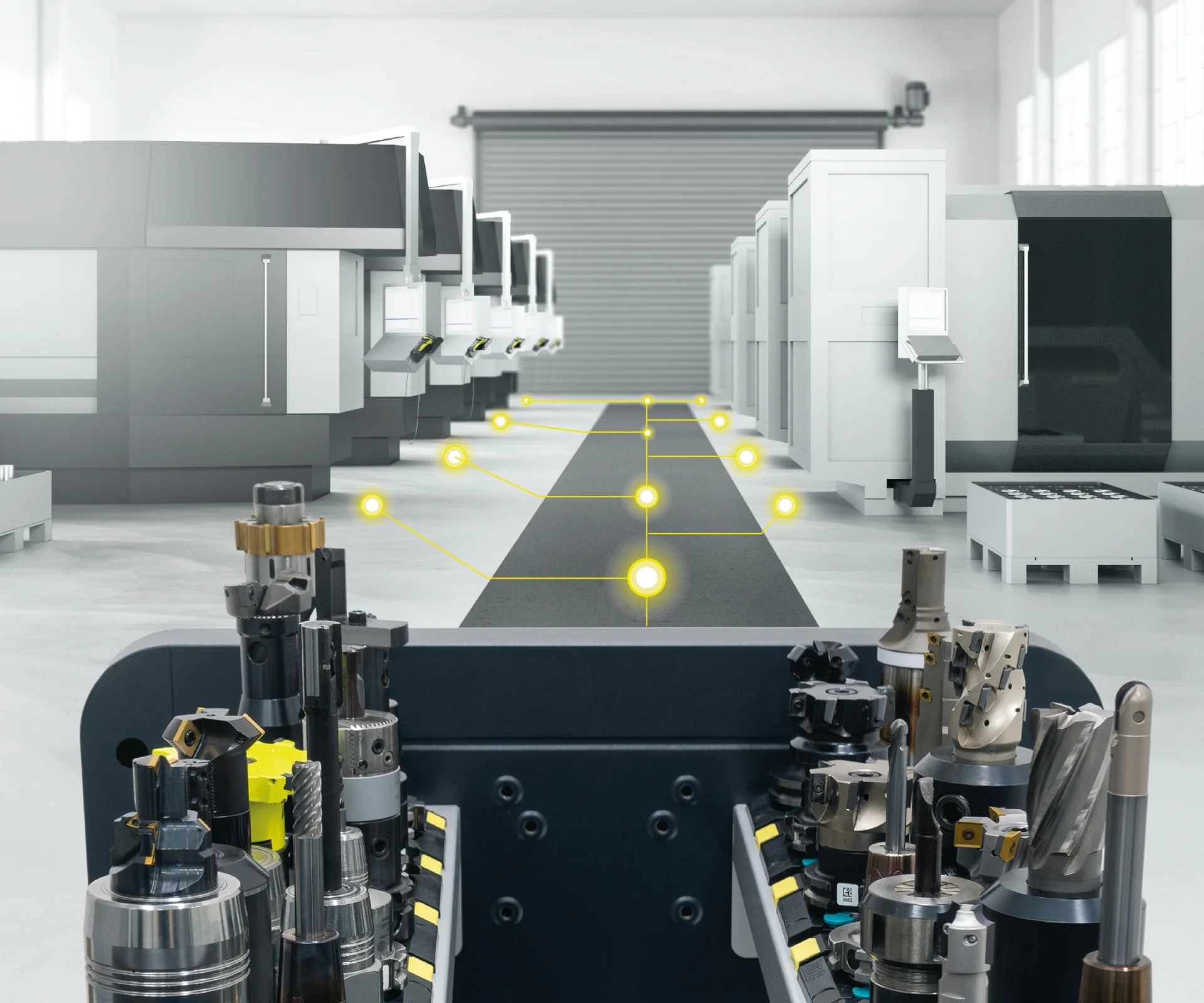

Tool Management: Your Advantages
Find out how tool management from ZOLLER immediately increases your productivity. Processes run faster and more reliably with tool data—including crash protection for your machines.
Learn more
»zidCode« – Data Flow Without a Network

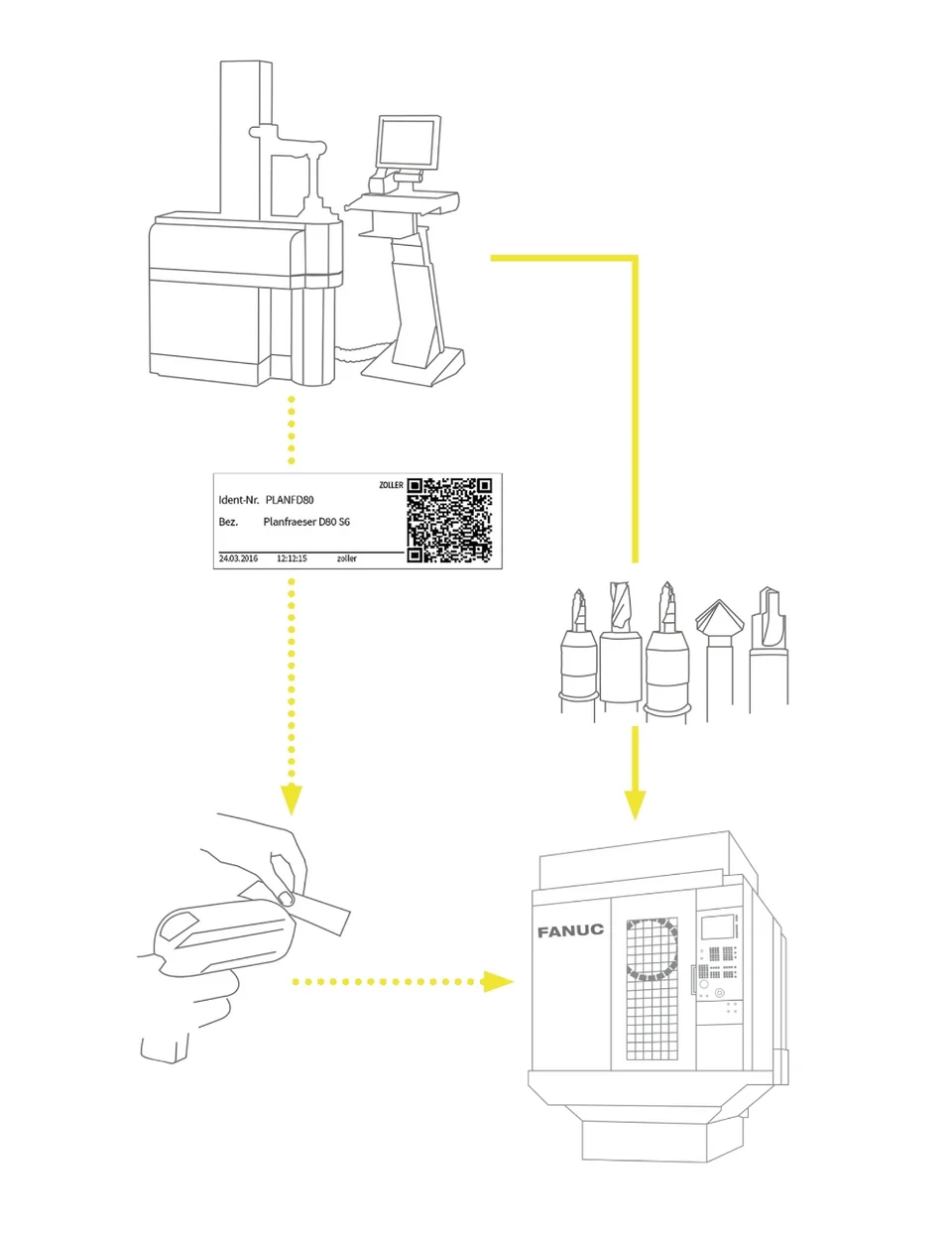

With »zidCode«, your CNC machines are optimally protected against crashes even without a network—because the tool data is transmitted error-free to the CNC machine via a scanner and code.
This makes »zidCode« the optimal solution for manufacturing operations that operate without a network. And it’s perfect for all CNC machines that aren’t network-ready.
Fits in seamlessly
»zidCode« is suitable for almost any manufacturing environment. For example, the solution transfers tool data directly to FANUC or HAAS controls via a network cable. To ensure you can use »zidCode« even with older machines, data can also be transferred easily via serial ports such as RS232. Process optimization is this efficient only with ZOLLER.
Equipment
| 1D/2D barcode reader per CNC machine |
| »zidCode« unit per CNC machine for magnetic assembly |
| Software for »zidCode« on the ZOLLER presetting and measuring machine with image processing: »pilot 3.0« or »pilot 2 mT« |
| USB flash drive (documentation, instructions, training videos) |
| USB cable (for the connection of the »zidCode« unit to the machine control system) |
Requirements
| CNC control with a USB connection that detects a simulated USB keyboard (optional RS232 interface for data output) |
| ZOLLER presetting and measuring machine with image processing »pilot 4.0«, »pilot 3.0« or »pilot 2 mT« version 1.15.0.0 or later, or »pilot 1.0« version 1.15.13.0 or later |
| Thermal label printer |
