Inspection & Measuring: Your Advantages
Find out what is possible with ZOLLER for tool inspections. Process-related inspections or high-end analyses through to SKP, roughness and the creation of digital twins.
Learn more
Software

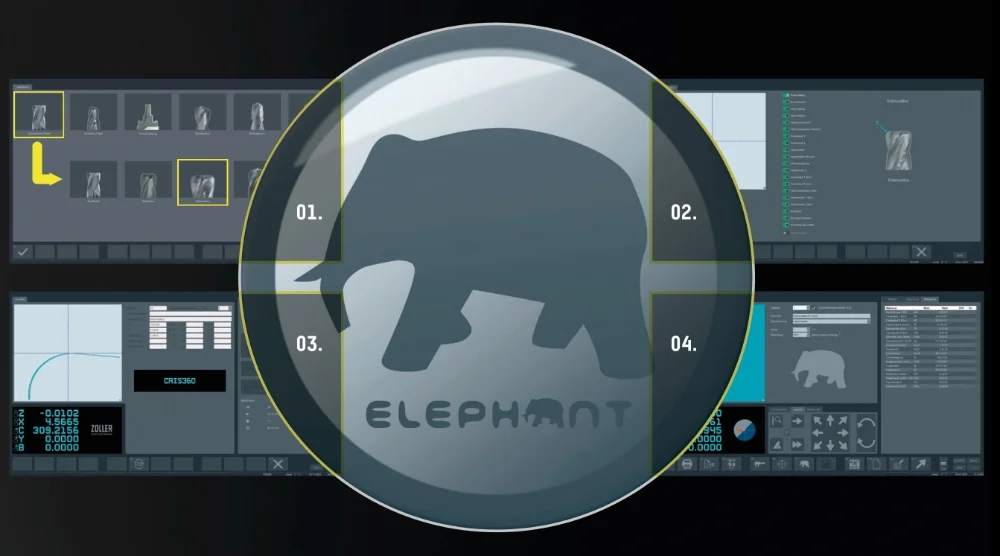

»elephant 2.0« – extremely easy to use
01. select tool type e.g. end mill > end mill with corner radius
02. selection of the desired parameters
03. active measurement e.g. cutting contour corner radius
04. measurement results (19 pieces, measured fully automatically and without data input/programming)
»expert« – intelligent, simple, ingenious
»expert« is the specialist for measurements on precision tools - based on the ZOLLER software »pilot 4.0«. The intelligent software generates the optimum measuring sequence from the selected parameters. Fully automatic, reproducible and with photorealistic parameter selection. The parameters to be measured can be selected easily, quickly and tool-specifically for the measuring program sequence using checkboxes. Simply select and confirm the parameters to be measured - and the measuring process starts.
Pioneering efficiency for your grinding shop
The greatest potential for efficiency lies outside the grinding machine: ZOLLER Solutions stand for your future - we make you more successful. Because those who manufacture faster and more efficiently operate more economically in order to be able to invest in the future. If economic progress is your goal, then ZOLLER is your partner.
Software functions
For maximum performance
360° concentricity test
To automatically determine the concentricity of circular surfaces (e.g. tool shank) and graphically evaluate the entire contour.

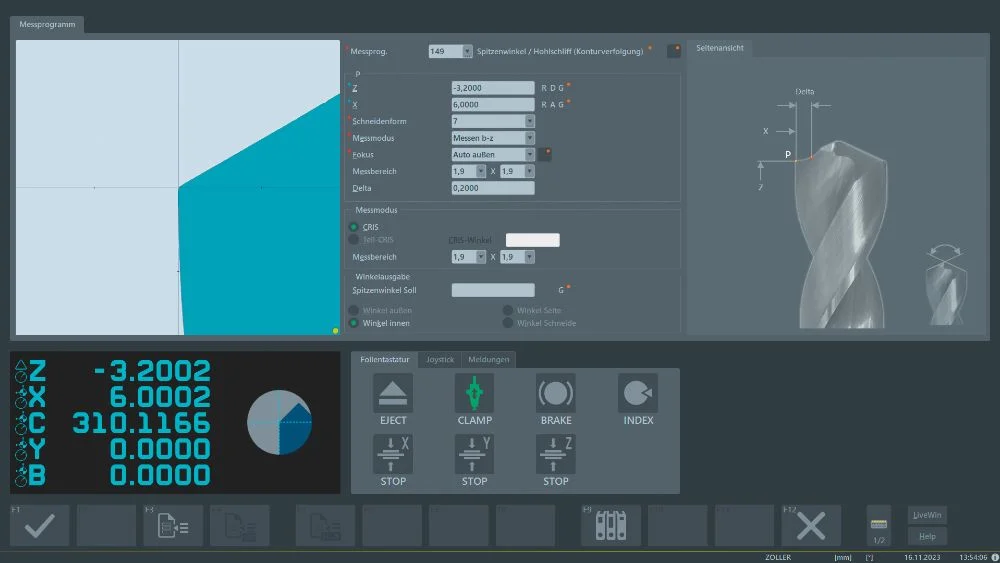

Point angle with hollow ground joint
Is determined on drilling tools and hollow-ground tool cutting edges from the starting point (outside diameter) to the tool tip or the defined end point by contour tracing.

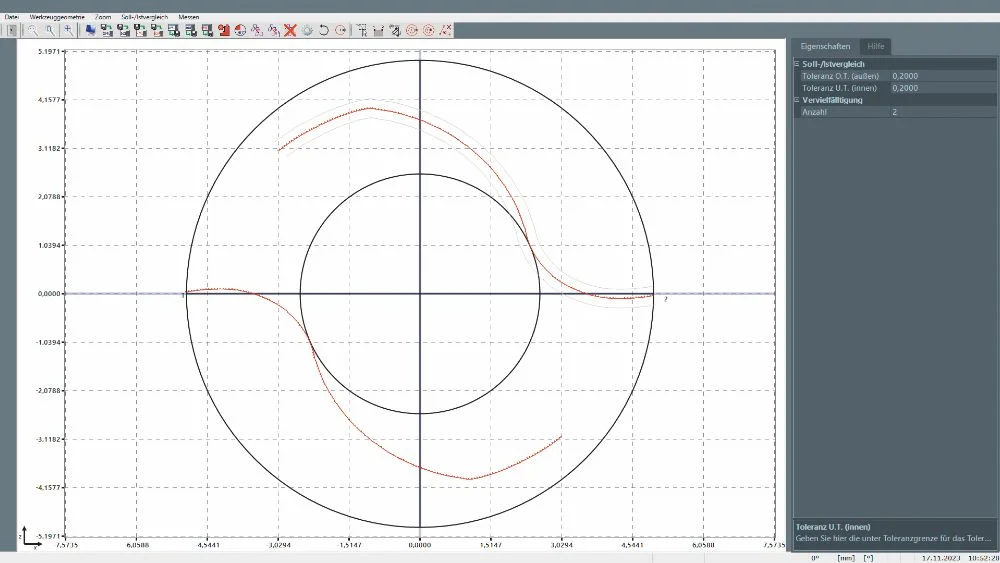

Slot chip space scan
Automatically scans the groove/chip space contour without contact and displays it graphically.

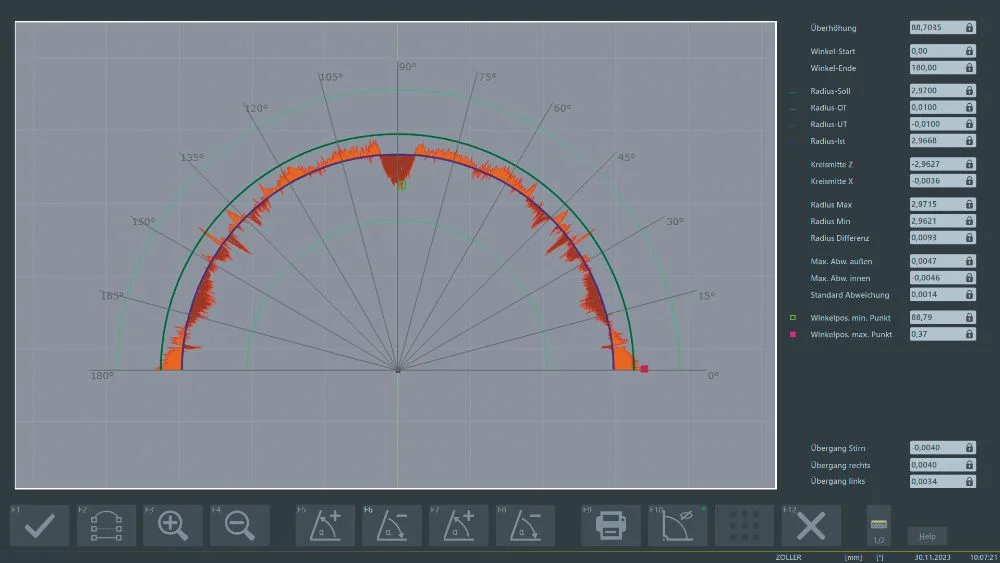

Radius contour »contur« with graphic
For automatic determination of concave and convex radii on the outer contour of tools, including adjustable angle sectors with graphical evaluation.

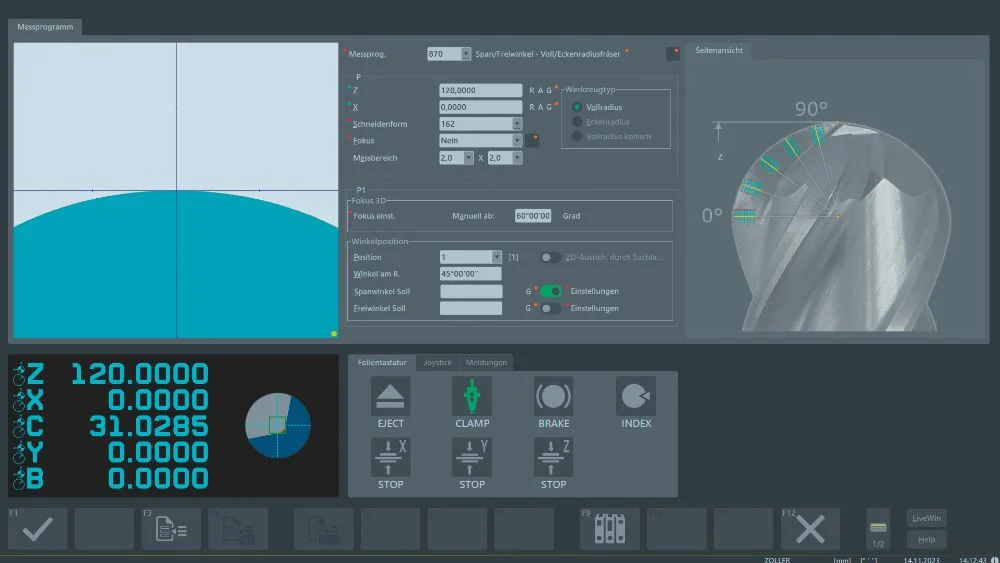

Rake angle on radius cutters
Determines the rake angle in the radius segment at the specified angles. Suitable for die, corner and full radius cutters.

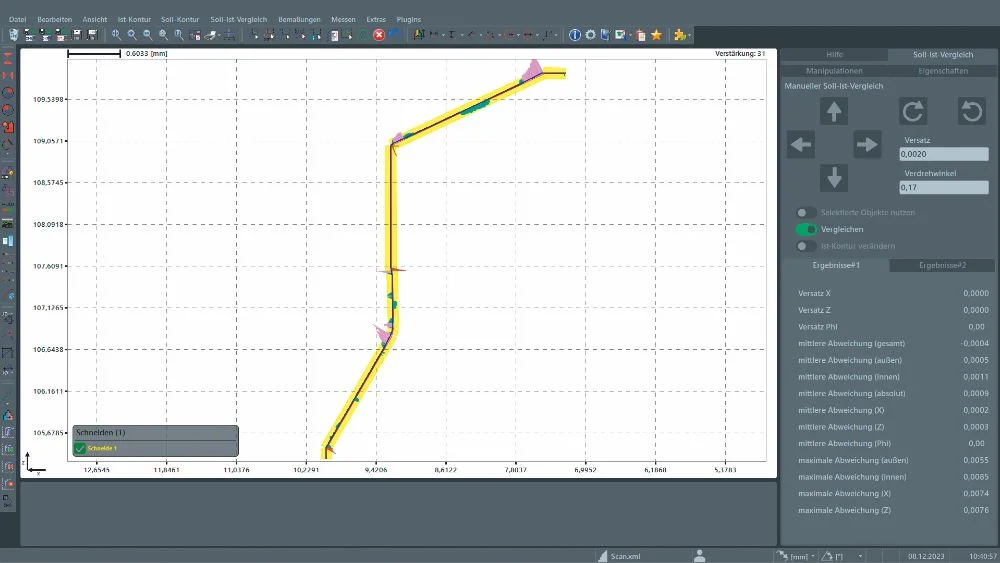

Contour measurement »lasso«
To scan any tool and workpiece contours and carry out a target/actual comparison or dimensioning of the contour.

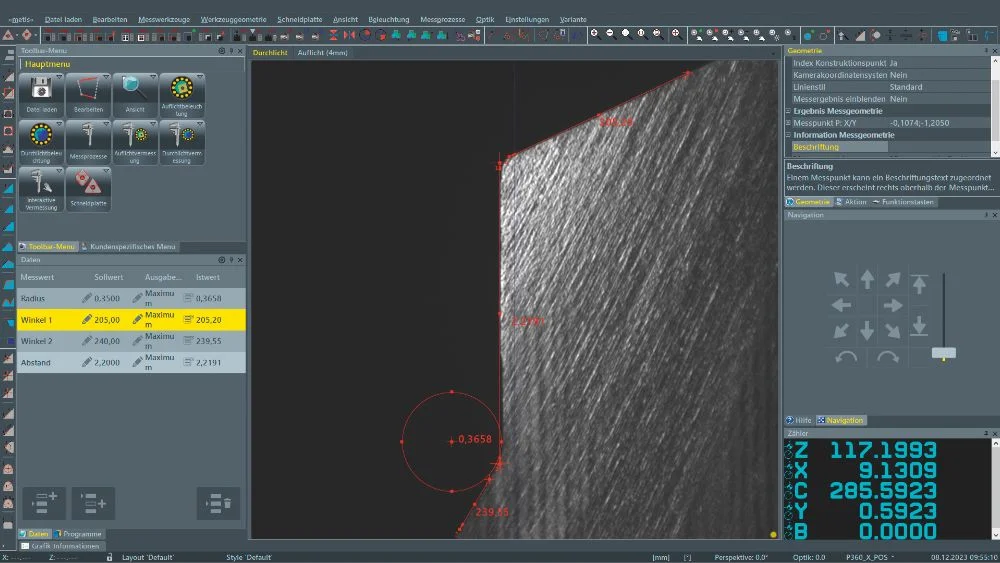

Tool analysis »metis«
Measures and documents any contours, radii, angles, distances and defects (wear) in incident light.

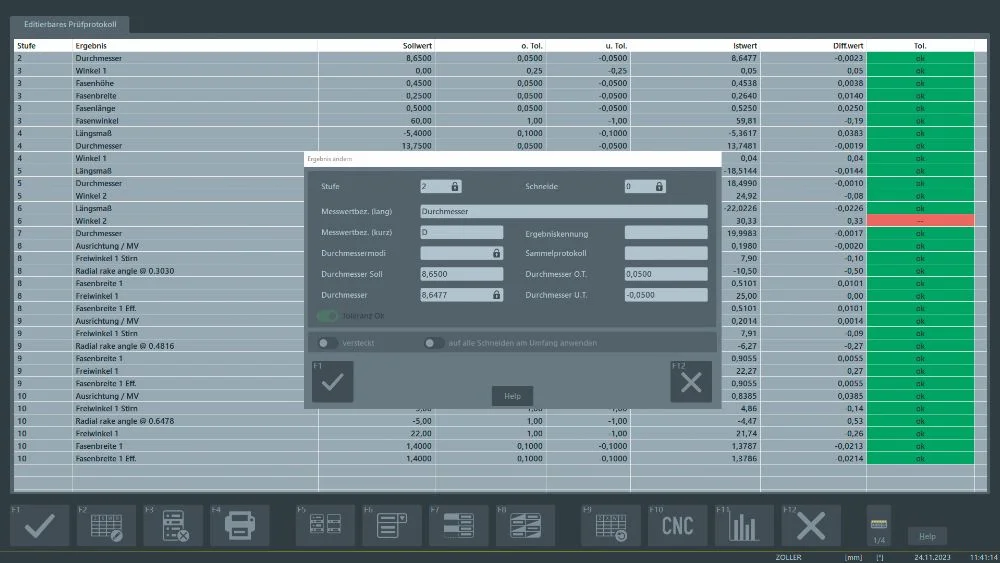

Editable test report »apus«
To be able to display all measurement results including designations, target values, tolerances and much more in tabular form and flexibly in the layout.

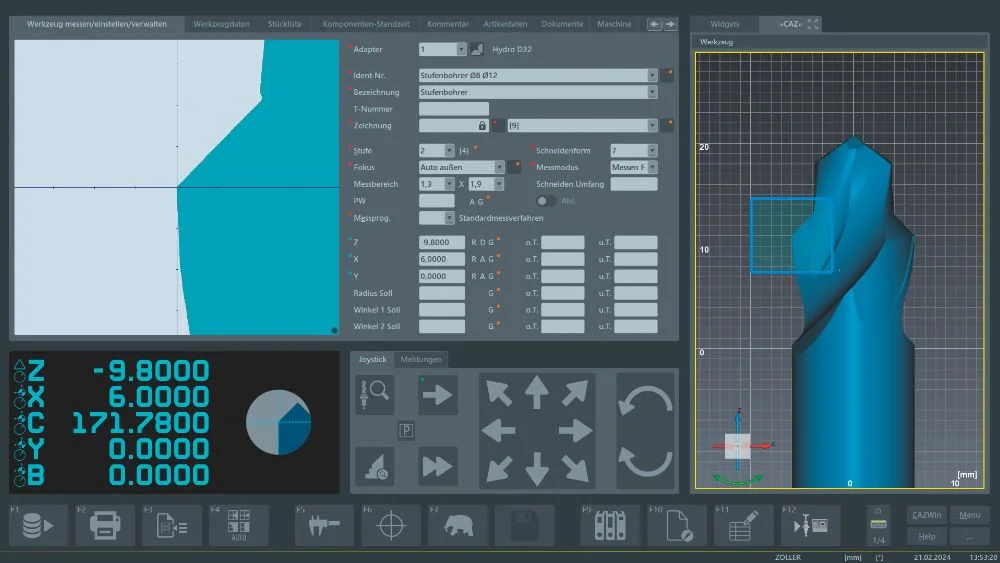

ZOLLER »caz«
The virtual measuring device for the PC workstation for external creation of the testing and measuring process including measuring programs, target values and tolerances based on the 3D model of the tool before it is manufactured.

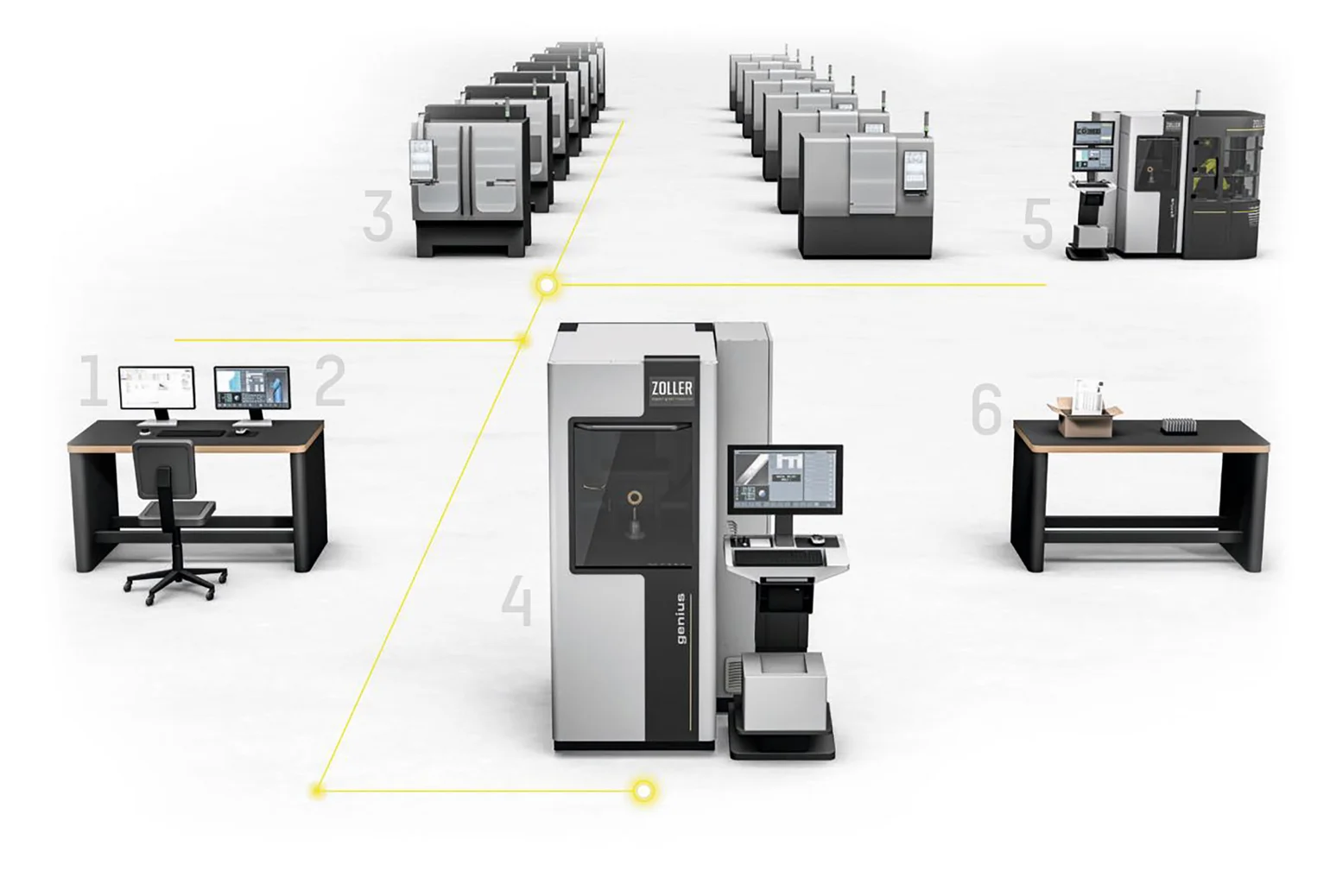

Process optimization - μm-precisely networked
