Inspection & Measuring: Your Advantages
Find out what is possible with ZOLLER for tool inspections. Process-related inspections or high-end analyses through to SKP, roughness and the creation of digital twins.
Learn more
Software
»elephant 2.0« – extremely simple to use
01. Selection of tool type, e.g., end mill > end mill with corner radius
02. Selection of the required parameters
03. Perform measurement, e.g., cutting contour corner radius
04. Measurement results (measured fully automatically without data entry or programming)
»threadCheck ❘ cc« Becomes a Hob Specialist

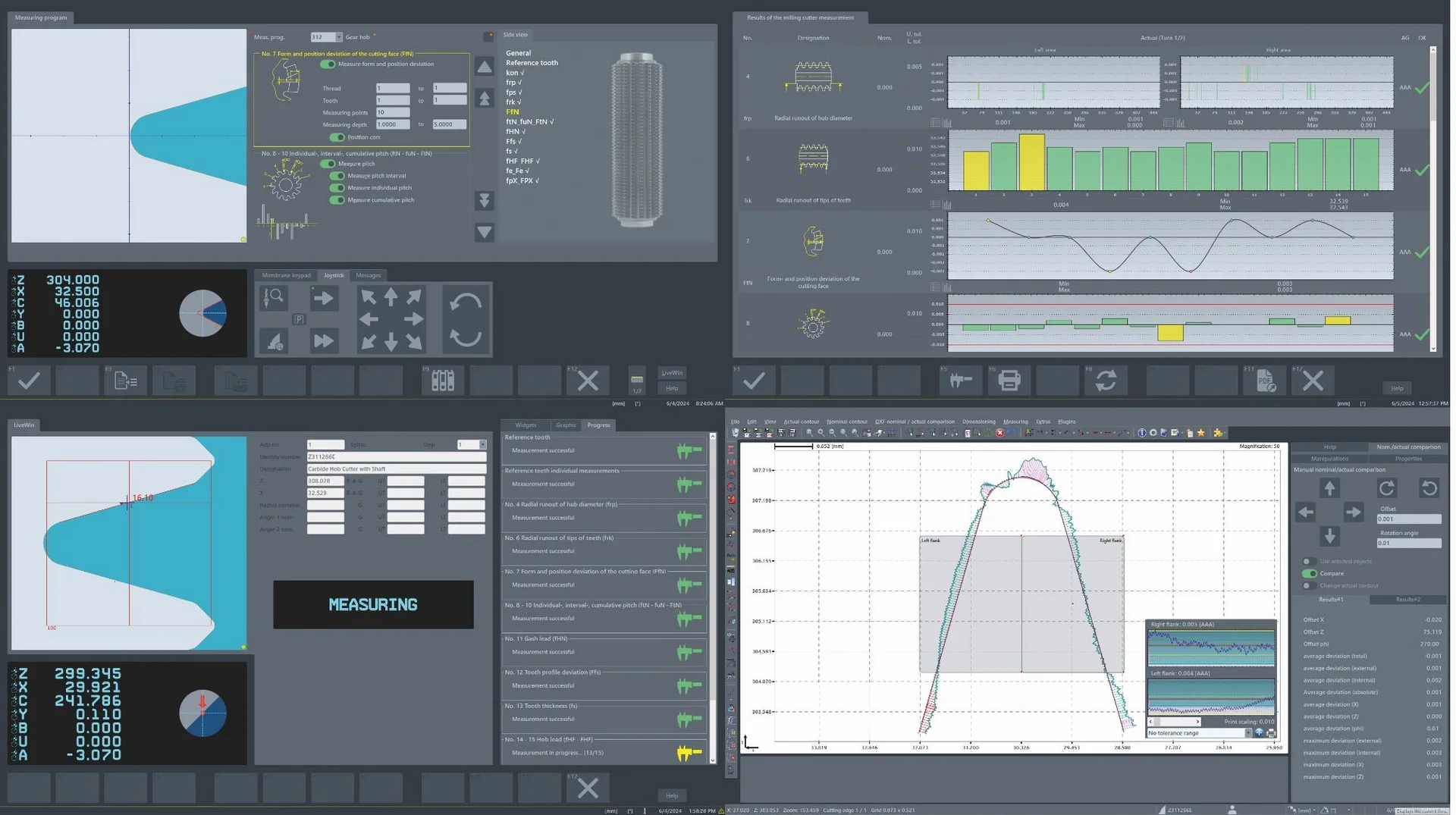

The »hobCheck« software makes the quick and μm-accurate measurement of gear cutting tools a breeze—based on the ZOLLER »pilot 4.0« software. Cylindrical hob cutters are measured fully automatically and evaluated in accordance with DIN 3968.
Groundbreaking Efficiency for Your Grinding Shop
The greatest potential for efficiency lies outside the grinding machine: ZOLLER Solutions are your key to the future—we help you achieve greater success. After all, those who manufacture faster and more efficiently operate more cost-effectively, enabling them to invest in the future. If economic progress is your goal, then ZOLLER is your partner.
Software functions
For Maximum Performance

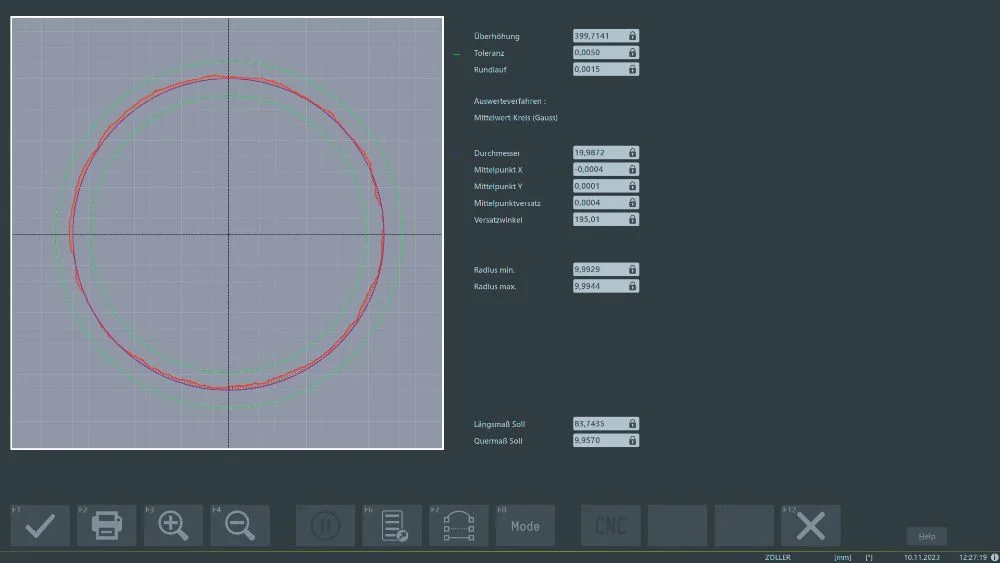

360° Concentricity Check
To automatically determine the radial run-out of circular surfaces (e.g., tool shanks) and graphically evaluate the entire contour.

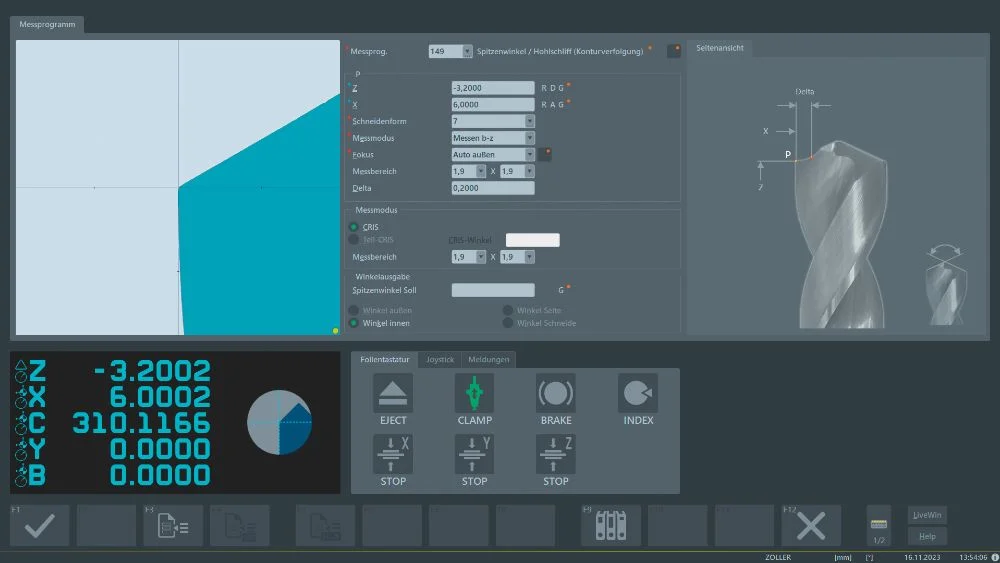

Point angle with hollow grinding
For drills and hollow-ground tool cutting edges, this is determined by contour tracking from the start point (major diameter) to the tool tip or the defined end point.

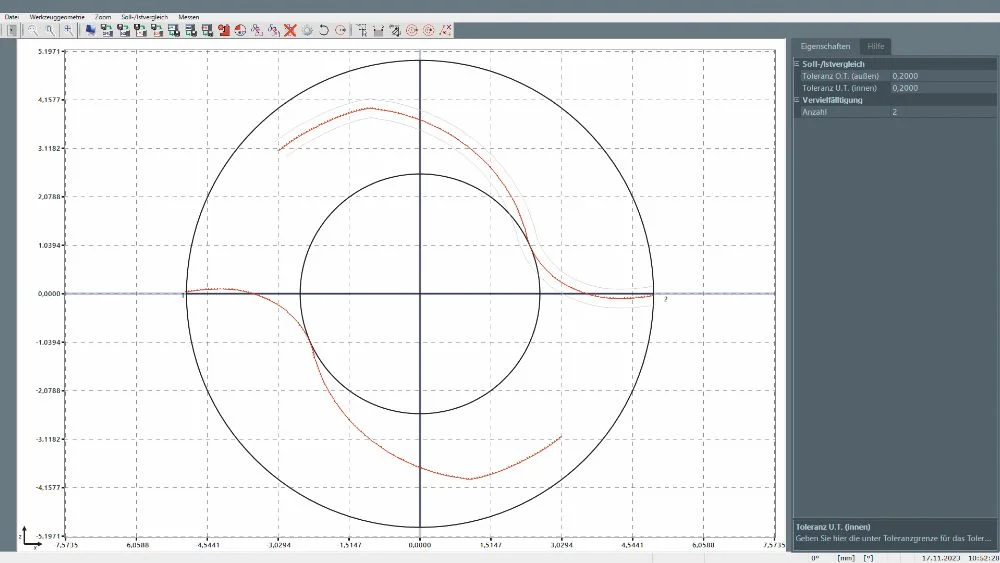

Flute/chip space scan
Automatically scans the flute/chip space contour without contact and represents it graphically.
Radius contour »contur« with graphic
For the automatic determination of concave and convex radii on the outer contour of tools, including adjustable angular sectors with graphic evaluation.

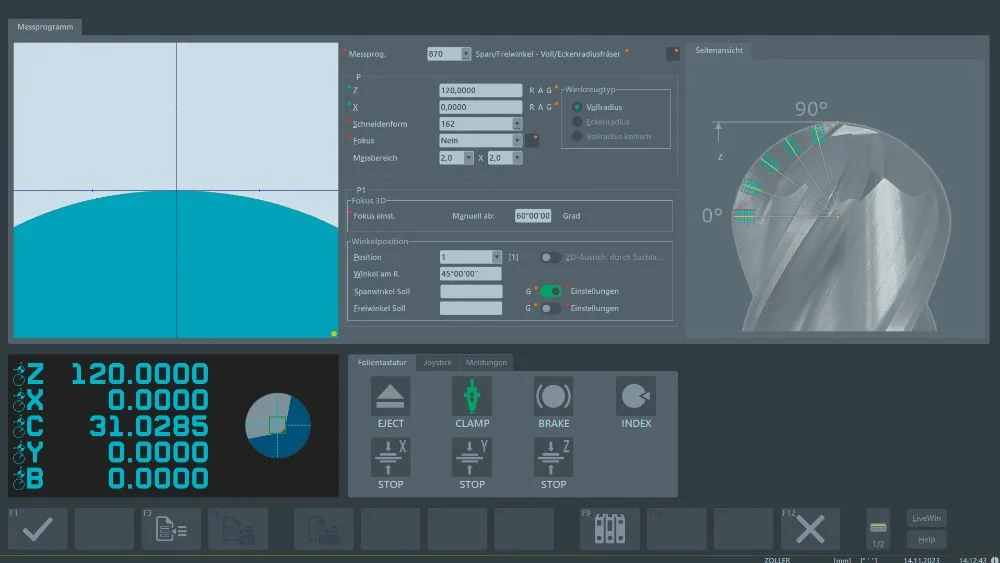

Rake angle on radius cutters
Calculates the rake angle within the radius segment based on the specified angles. Suitable for radius cutters, corner radius cutters, and full radius cutters.

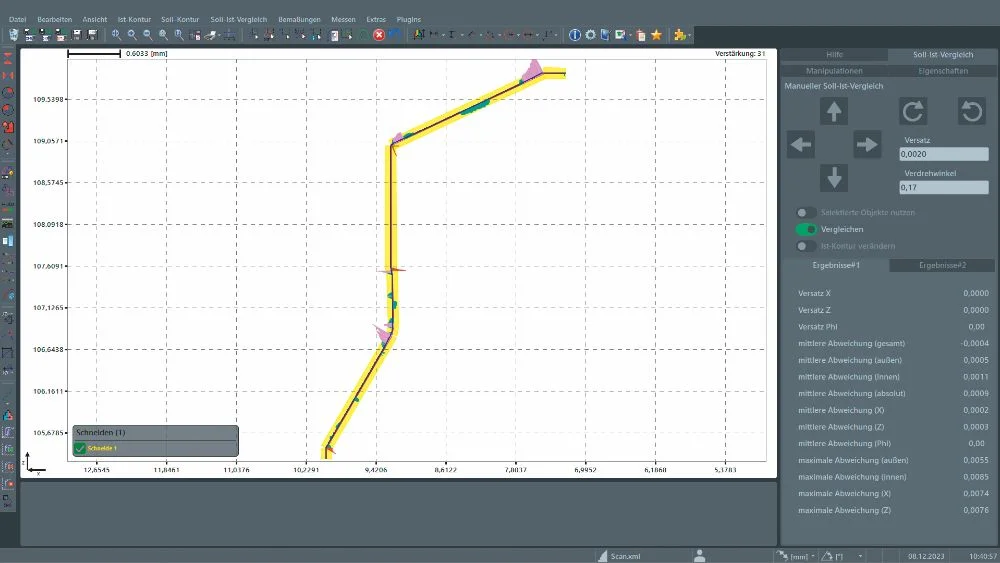

Contour profile measurement (»lasso«)
To scan any tool or workpiece contours and perform a nominal/actual comparison or dimension the contour.

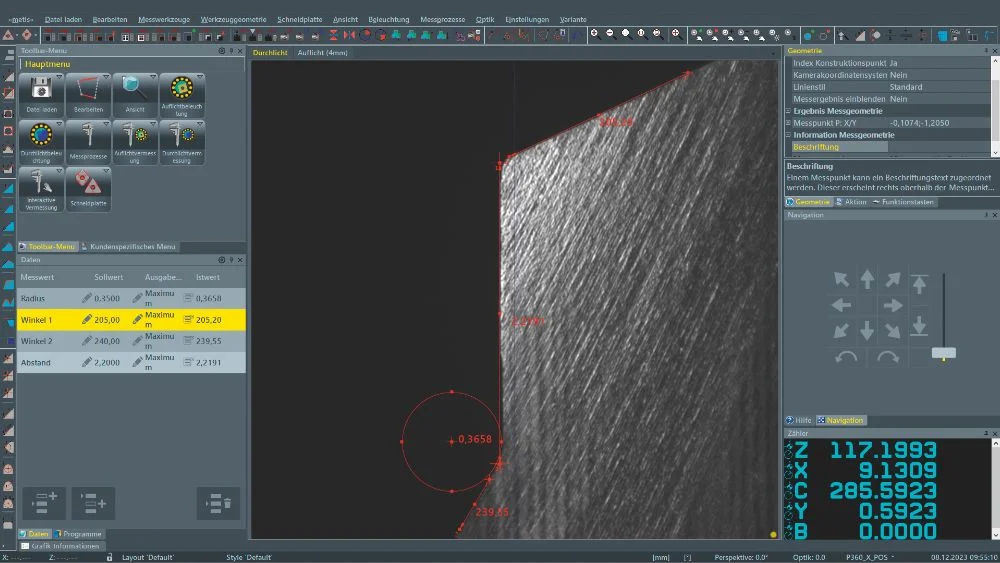

»metis« Tool Analysis
Measures and documents any contours, radii, angles, distances, and defects (wear and tear) using incident light.

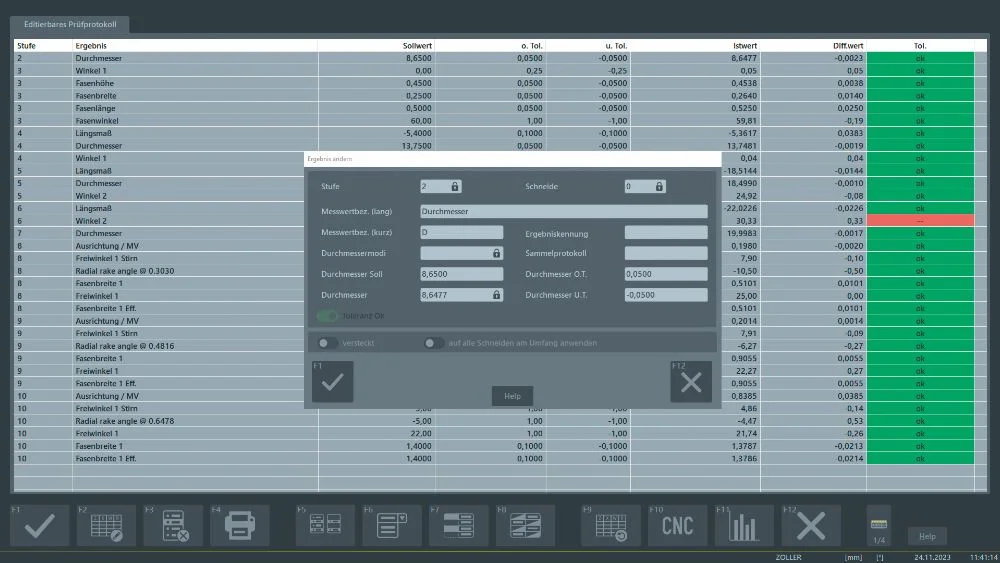

Editable »apus« inspection report
To represent all measurement results—including designations, nominal values, tolerances, and much more—in a table format with a flexible layout.

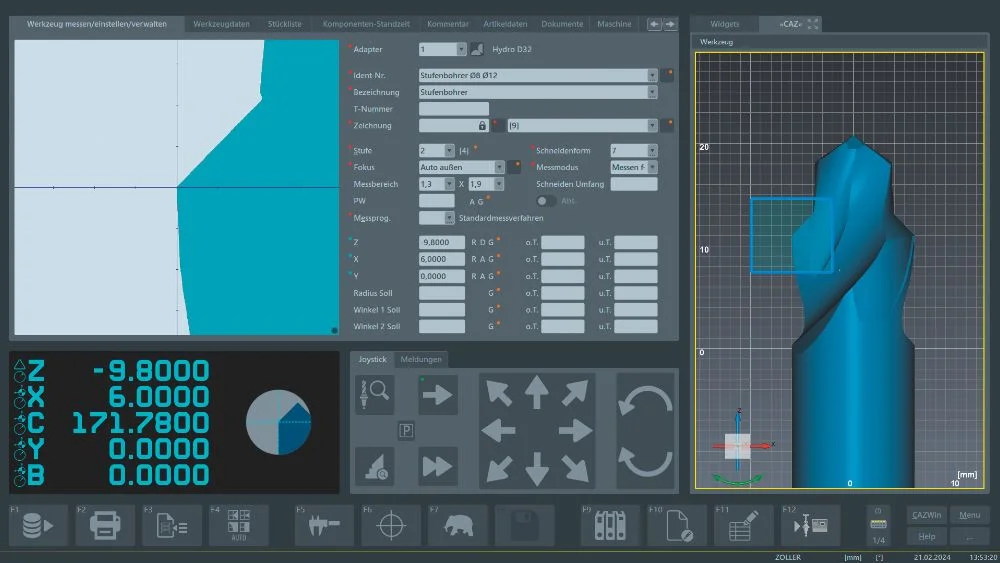

ZOLLER »caz«
The virtual measuring machine for the PC workstation, used to externally configure the testing and measurement sequence—including measuring programs, nominal values, and tolerances—based on the 3D model of the tool, even before it is manufactured.
