ZOLLER Premium – for maximum flexibility

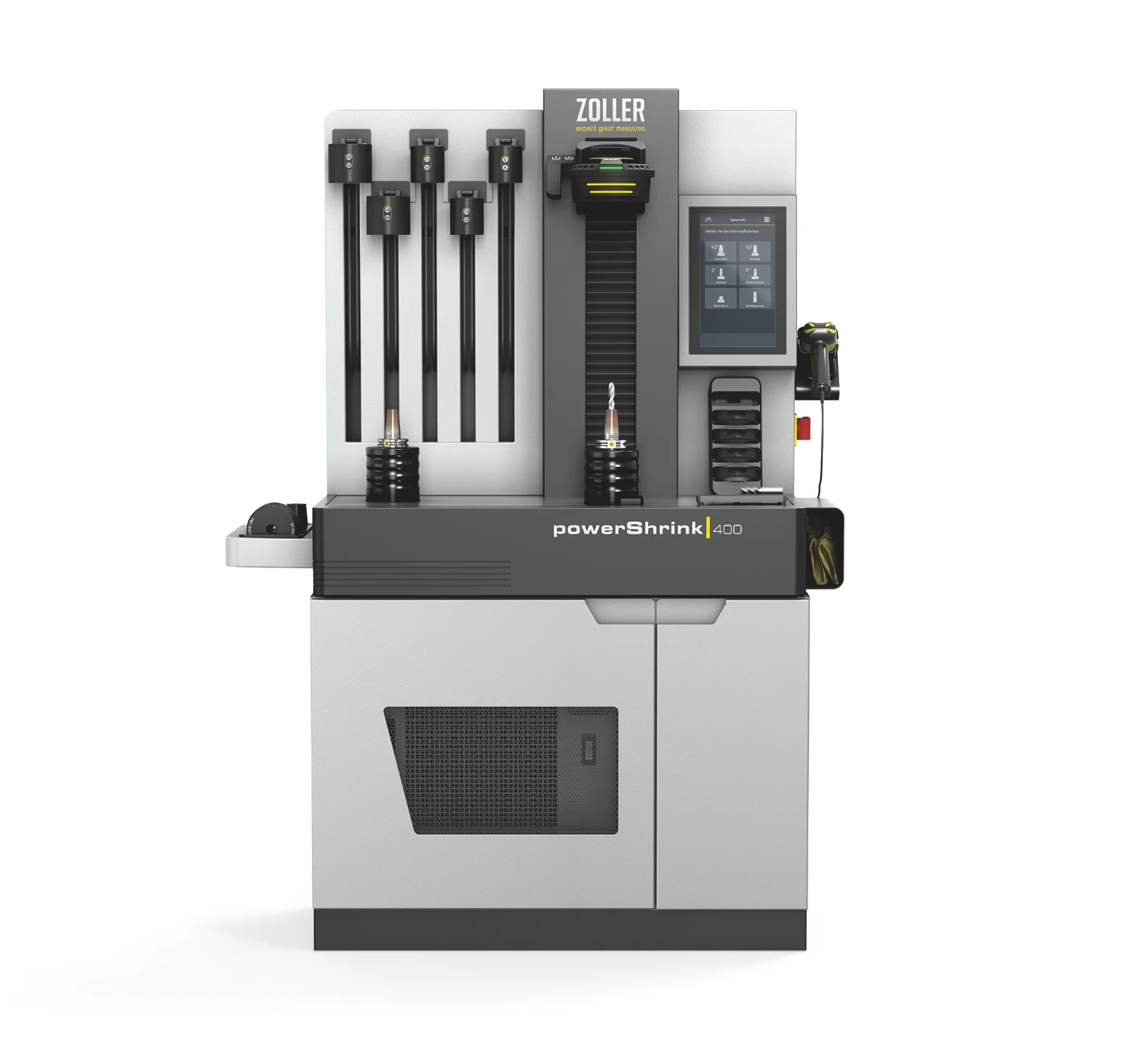

»powerShrink 400« at full size – on your shop floor

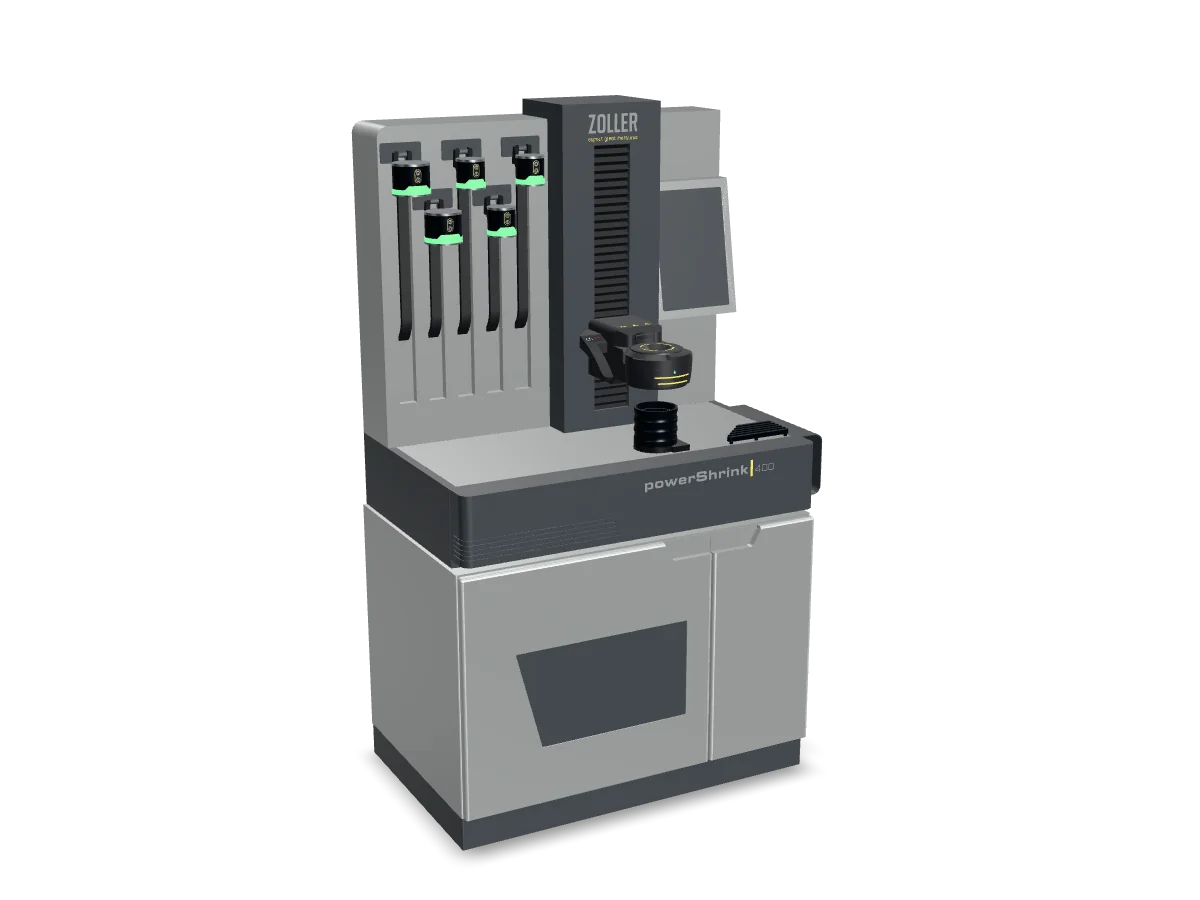

With augmented reality, the unit appears true to scale exactly where it will work: walk around it and check space and access before you order. On a computer, rotate and zoom the CAD model right here.
- Width
- 1.07 m3′ 6″
- Depth
- 0.64 m2′ 1″
- Height
- 1.76 m5′ 9″
- Footprint
- 0.69 m²7 sq ft
Overall dimensions of the CAD model in this configuration – may vary depending on equipment.
Scan the QR code and place the unit at full size in your room – on iPhone, iPad or an Android device with ARCore.
Cooling Bell Guide
Safe, free-moving cooling bell guide
Safe, free-moving cooling bell guide – ensures maximum comfort and safety thanks to a simple fixing mechanism when attaching the cooling bells.
Induction coil
Intelligent induction coil with shielding system
Intelligent induction coil with shielding system – with ergonomic handle on the left side, including membrane function buttons for moving the coil and activating the heating process.
The »shrinkbyLight« operator guidance system uses LEDs to provide information about which windings are active at the moment and ensures that the correct disc is inserted into the coil for the selected data record. »shrinkbyLight« literally gives the green light for the further shrinking process and, in so doing, ensures maximum safety. The fume extraction unit ensures that the operator is protected.
Optionally, the »powerShrink 400« is available with the »varOct« shielding system.
Standard cooling bells
Innovative standard cooling bells
Innovative standard cooling bells – for rapid cooling of your shrink fit holders. High-quality labeling with the tool diameters shows which cooling bell is the right one. The intelligent cooling system, the cooling manager, coordinates the cooling times depending on the holder diameter and switches off the cooling module after a defined time. This saves additional energy in the shrink process.
Optionally, the »powerShrink 400« is also available with cooling bells, including »coolbyLight« operator guidance and cooling time monitoring or with »zStream« air cooling.
TFT touch monitor
13.3" TFT touch monitor, with ZOLLER »pilot« software
Industrial 13.3" TFT touch monitor, with ZOLLER »pilot« software – impresses with a razor-sharp display and simple operation via touch. The clearly structured graphic software interface intuitively guides you through the shrink process, with the help of large function areas and colors.
Coil axis
Smooth-running coil axis
Smooth-running coil axis – for fast and comfortable movement of the coil. The electromagnetic release of the axis clamping, the high-precision THK linear guide and the counterweight enable ergonomic workflows and ensure a long service life. The maximum tool length is 600 mm.
Hand scanner
Practical hand scanner
Practical hand scanner – for a rapid and safe start of your shrink-clamping process. Simply scan the DataMatrix code on the ZOLLER »idChip«, and you will immediately have all necessary shrinking parameters available in the »pilot« software.
Work surface
Robust and smooth work surface
Robust and smooth work surface – made from stainless steel, offers sufficient space for the heating and cooling of your shrink fit holders. The material is optimally matched to the holder pot so that shifting the tool is easy, quiet and fast.
Storage boards
Storage boards left and right
Ergonomic storage boards left and right – offer space for positioning cleaning brushes, safety gloves, cooling adapters and holding rings close to the process, thereby rounding off the ergonomic operation of the machine.
Stable table
Stable table
Stable table – provides the perfect basis for a long-lasting product, thanks to its particularly robust construction. For maintenance and checks, the front door can be opened and the water cooler, mounted on a drawer, can be pulled out.
Optionally, you can get the table on rollers and with an ergonomic handle for flexible positioning of the »powerShrink 400« in your production or as a workbench version without table.
Storage space
Large storage space
Large storage space – offers sufficient space for cooling components and fume extraction unit.
