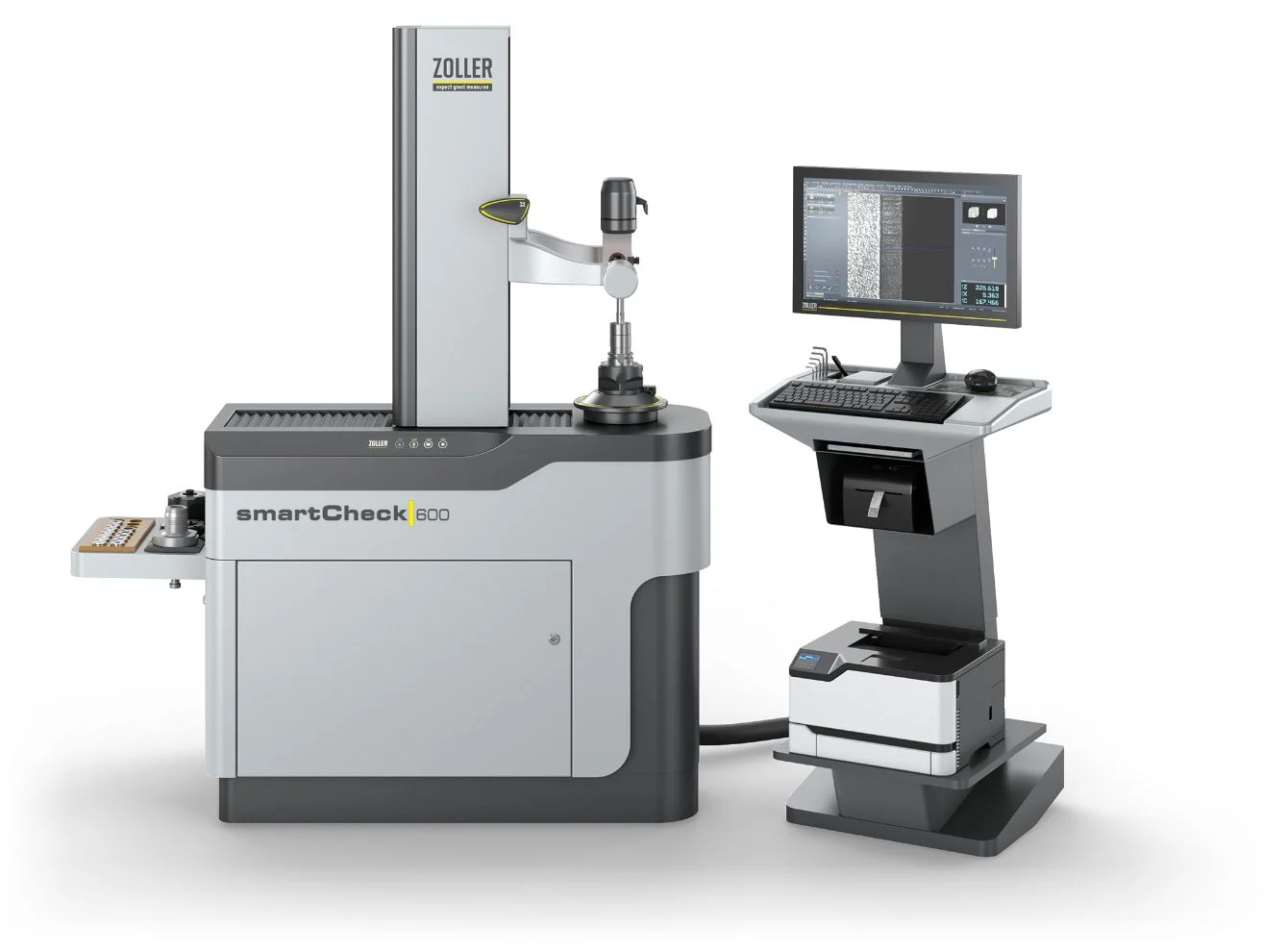

»smileCheck« – Compact Basic Model
»eQ« One-Hand Control Handle
Ergonomic One-Hand Control Handle »eQ«
Ergonomic one-hand control handle »eQ« (ergonomic & quick)—for effortlessly moving the optic carrier to the correct position along the Z-axis and the X-axis. The button with the Solutions icon can be configured with additional practical functions, making operation even simpler and more convenient.
X-axis
X-axis
X-axis (manual/CNC)—the high-precision, smooth-running linear axes serve for rapid and fine positioning of the measuring optics relative to the cutting edge of the tool. Whether operated manually for spot checks using the »eQ« one-hand control handle or CNC-controlled for fully automatic processes, these axes enable safe, fast, and convenient execution of the measurement.
Manual fine setting – the alternative to CNC control. The ergonomic hand wheels for additional manual fine adjustment of the Z- and X-axes are specially designed for the tool inspection module.
Y-axis
Y-axis
Y-axis – the optional, CNC-controlled linear axis for measuring off-center cutting edges on turning or multifunction tools.
Storage Board
Practical Storage Board
Practical storage board—holds adapter tool posts, adapters, tools, and intermediate sleeves.
Incident Light Camera
Tool Inspection with a Manually Swivelling Incident Light Camera
Tool inspection with a manually swivelling incident light camera—for radial and axial inspection and measuring tasks. The integrated LED ring light, with adjustable light intensity, ensures optimal lighting of the surface. The clamping and locking mechanism, along with the swivel range from -30° to 90°, ensure an ideal perspective for each measuring point.
Software »pilot 4.0«
Software »pilot 4.0«
Software »pilot 4.0«—is intuitive, provides an overview, and enables operators to perform reliable measurements with process reliability. It provides a uniform user interface across all ZOLLER systems—including ZOLLER TMS Tool Management Solutions. The software’s modular design allows for quick implementation of customer-specific adjustments.
Integrated control unit – enables comfortable and ergonomically sound operation. The 24" TFT color monitor can be individually adjusted to meet the needs of each operator: height, swivel, and inclination angles are all flexibly adjustable.
High-Precision Spindle
SK 50 High-Precision Spindle
SK 50 High-Precision Spindle – for holding tools or adapters with an SK 50 interface. Reduction adapters allow for the simple and precise holding of virtually any tool holding system. The optional CNC drive with autofocus and a precise angle measuring system provides automatic focusing on the tool cutting edge and detection of the cutting contour.
Label Printer
Label Printer
Label printer – for printing measurement results or DataMatrix codes on label paper or thermal labels.
Z-axis
Z-axis
Z-axis (manual/CNC)—these high-precision, smooth-running linear axes serve for rapid and fine positioning of the measuring optics relative to the cutting edge of the tool. Whether operated manually for spot checks using the »eQ« one-hand control handle or CNC-controlled for fully automatic processes, these axes enable safe, fast, and convenient execution of the measurement.
Manual fine setting – the alternative to CNC control. The ergonomic hand wheels for additional manual fine adjustment of the Z- and X-axes are specially designed for the tool inspection module.
»eQ« One-Hand Control Handle
»eQ« One-Hand Control Handle
Ergonomic One-Hand Control Handle »eQ«
Ergonomic one-hand control handle »eQ« (ergonomic & quick)—for effortlessly moving the optic carrier to the correct position along the Z-axis and the X-axis. The button with the Solutions icon can be configured with additional practical functions, making operation even simpler and more convenient.
X-axis
X-axis
X-axis
X-axis (manual/CNC)—the high-precision, smooth-running linear axes serve for rapid and fine positioning of the measuring optics relative to the cutting edge of the tool. Whether operated manually for spot checks using the »eQ« one-hand control handle or CNC-controlled for fully automatic processes, these axes enable safe, fast, and convenient execution of the measurement.
Manual fine setting – the alternative to CNC control. The ergonomic hand wheels for additional manual fine adjustment of the Z- and X-axes are specially designed for the tool inspection module.
Y-axis
Y-axis
Y-axis
Y-axis – the optional, CNC-controlled linear axis for measuring off-center cutting edges on turning or multifunction tools.
Storage Board
Storage Board
Practical Storage Board
Practical storage board—holds adapter tool posts, adapters, tools, and intermediate sleeves.
Incident Light Camera
Incident Light Camera
Tool Inspection with a Manually Swivelling Incident Light Camera
Tool inspection with a manually swivelling incident light camera—for radial and axial inspection and measuring tasks. The integrated LED ring light, with adjustable light intensity, ensures optimal lighting of the surface. The clamping and locking mechanism, along with the swivel range from -30° to 90°, ensure an ideal perspective for each measuring point.
Software »pilot 4.0«
Software »pilot 4.0«
Software »pilot 4.0«
Software »pilot 4.0«—is intuitive, provides an overview, and enables operators to perform reliable measurements with process reliability. It provides a uniform user interface across all ZOLLER systems—including ZOLLER TMS Tool Management Solutions. The software’s modular design allows for quick implementation of customer-specific adjustments.
Integrated control unit – enables comfortable and ergonomically sound operation. The 24" TFT color monitor can be individually adjusted to meet the needs of each operator: height, swivel, and inclination angles are all flexibly adjustable.
High-Precision Spindle
High-Precision Spindle
SK 50 High-Precision Spindle
SK 50 High-Precision Spindle – for holding tools or adapters with an SK 50 interface. Reduction adapters allow for the simple and precise holding of virtually any tool holding system. The optional CNC drive with autofocus and a precise angle measuring system provides automatic focusing on the tool cutting edge and detection of the cutting contour.
Label Printer
Label Printer
Label Printer
Label printer – for printing measurement results or DataMatrix codes on label paper or thermal labels.
Z-axis
Z-axis
Z-axis
Z-axis (manual/CNC)—these high-precision, smooth-running linear axes serve for rapid and fine positioning of the measuring optics relative to the cutting edge of the tool. Whether operated manually for spot checks using the »eQ« one-hand control handle or CNC-controlled for fully automatic processes, these axes enable safe, fast, and convenient execution of the measurement.
Manual fine setting – the alternative to CNC control. The ergonomic hand wheels for additional manual fine adjustment of the Z- and X-axes are specially designed for the tool inspection module.
